型号 | 尺寸 [ mm ] | 输出波形 | 输出频率范围 | 电源电压Typ. | 频率稳定度 (ppm） | 工作温度 (°C） |

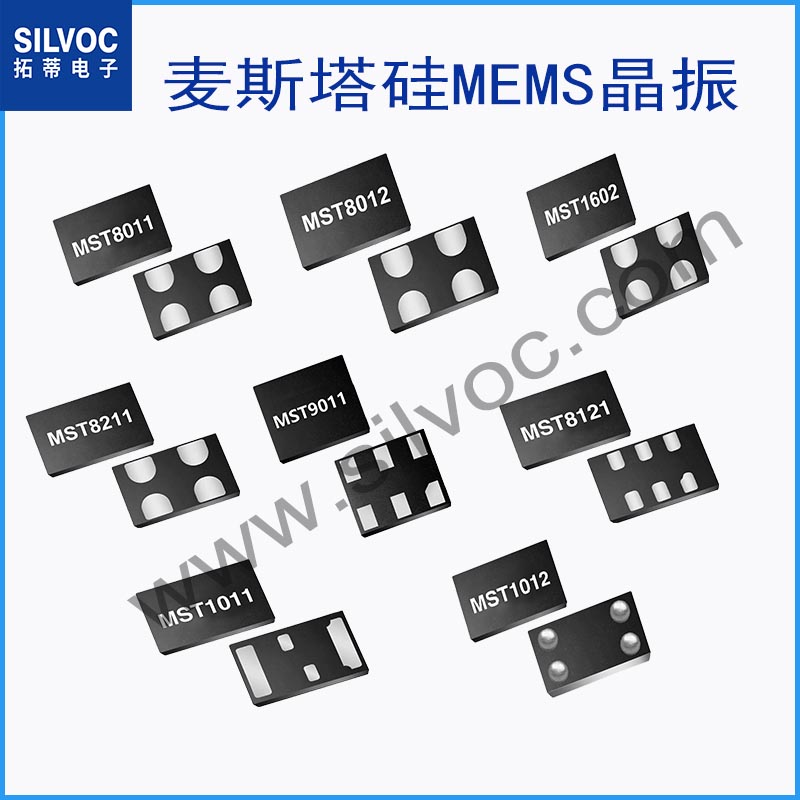

MST8011 | 2.0 x 1.6 2.5 x 2.0 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 | -20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST8012 | 2.0 x 1.6 2.5 x 2.0 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±2 ±5 ±10 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST1602 | 2.0 x 1.6 2.5 x 2.0 3.2 x 2.5 | LVCMOS / HCMOS | 3.57 MHz 到 156.25 MHz间54个常用频点 | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST8211 | 2.0 x 1.6 2.5 x 2.0 3.2 x 2.5 | LVCMOS | 1 MHz -220 MHz | 1.62V 至 3.63V | ±5 ±10 ±20 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST9011 | 2.0 x 1.6 2.5 x 2.0 3.2 x 2.5 | LVPECL / LVDS / HCSL 兼容输出 | 1 MHz - 750 MHz | 1.62V 至 3.63V | ±10 ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST8121 | 2.5 x 2.0 3.2 x 2.5 | LVCMOS / HCMOS | 双端口输出：
端口1：1 MHz - 180 MHz
端口2: 32.768kHz | 1.62V 至 3.63V | ±2 ±5 ±10 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST1011 | 2.0 x 1.2 | LVCMOS | 32.768kHz | 1.5V to 3.63V | ±5 ±10 ±20 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
MST1012 | 1.5 x 0.8 | LVCMOS | 32.768kHz | 1.5V to 3.63V | ±5 ±10 ±20 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
备用1 | 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
备用2 | 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
备用3 | 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
备用4 | 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
备用5 | 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5 | LVCMOS / HCMOS | 1MHz-180MHz | 1.62V 至 3.63V | ±20 ±25 ±50 |
-20 to +70 -40 to +85 -40 to +105 -40 to +125 -55 to +125 |
