1-Wire

●

●

●

●

Atmel SWI

●

●

●

●

CAN

●

●

●

●

CAN-FD

X

X

●

●

DHT11/12

●

●

●

●

DMX-512

●

●

●

●

DS18B20

●

●

●

●

HDMI CEC

●

●

●

●

I2C

●

●

●

●

I2C-EEPROM

●

●

●

●

I2S/PCM

●

●

●

●

IR-NEC

●

●

●

●

IR-JVC

●

●

●

●

IR-RC5

●

●

●

●

IR-RC6

●

●

●

●

IR-Sharp

●

●

●

●

IR-SIRC

●

●

●

●

ISO7816

X

X

●

●

JTAG

●

●

●

●

LCD1602/12864

●

●

●

●

LIN

●

●

●

●

Manchester

●

●

●

●

MDIO

●

●

●

●

MIDI

●

●

●

●

MIPI-DSI LP

X

X

●

●

Modbus

●

●

●

●

Parallel

●

●

●

●

Parallel 8080

●

●

●

●

Parallel 6800

●

●

●

●

PS/2 Keyboard

●

●

●

●

QSPI-Flash

X

X

●

●

RDM

●

●

●

●

RGB-WS28xx

●

●

●

●

SDIO

●

●

●

●

SMBus

●

●

●

●

SPI

●

●

●

●

SWD

●

●

●

●

UART/RS232/485

●

●

●

●

UNI/O

●

●

●

●

USB-PD

X

X

●

●

USB LS/FS

●

●

●

●

Wiegand

●

●

●

●

通道数量

32

最大采样率

500M@32CH

测量宽带

80MHz

最小可捕获脉宽

6.25ns

硬件存储总容量

4Gbits

硬件存储深度

100M Sas

最大压缩深度

10G Sas

输入电压范围

-50V ~ +50V

等效输入阻抗

220kΩ，12pF

阈值电压

阈值可调：-4V ~ +4V 调节步进：0.01 V

输出频率范围

0.1 - 20MHz

周期调节步进

10ns

脉宽调节步进

5ns

输出电压

+3.3V

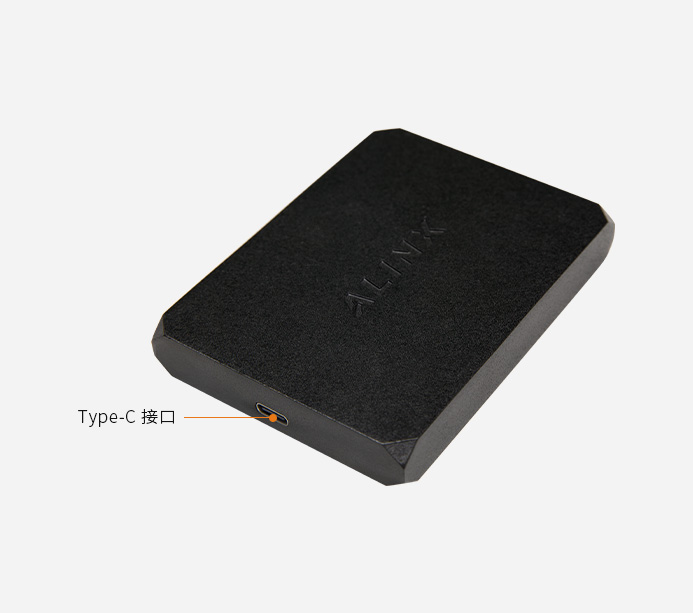

Type-C 数据线

1 条

9P 排线

5 条

2P 排线

2 条

夹子

36 只

说明书

1 份
