30W DIL封装，8:1宽输入电压范围
效率高达91%，调节输出类型
无最低负载要求，过功率和短路保护
过热保护，工作温度：-40°C至+70°C

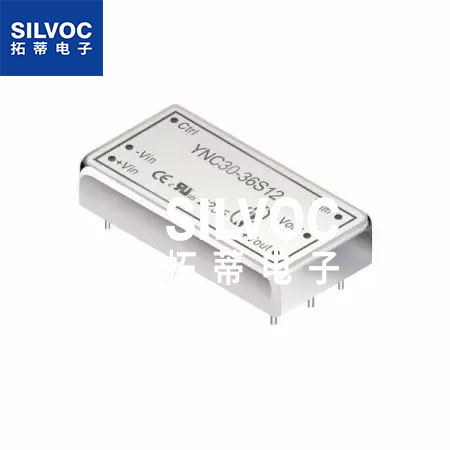

YNC30系列：超宽8:1输入范围30W 2" X 1" DC-DC转换器
常用型号：
YNC30-36S05
YNC30-36S12
YNC30-36S15
YNC30-36S24
YNC30-36S48
YNC30-36D12
YNC30-36D15
2.25KV隔离30W 8:1宽输入DC-DC电源转换
2“x 1” 8:1宽输入电压范围30W DC-DC功率转换器。该系列具有2.25KV的隔离电压。它有单/双输出规格。效率可达91%。YNC30系列具有过功率/过温和短路保护功能。工作环境温度为-40°C至+70°C。
YDS的DC-DC功率转换器产品符合RoHS标准，可以为产品定制。产品售出后保修3年。
欢迎任何OEM/ODM要求。我们期待与您合作！
特征
30W DIL封装
8:1宽输入电压范围
效率高达91%
调节输出类型
无最低负载要求
过功率和短路保护
过热保护
工作温度：-40°C至+70°C
UL94V-0包装材料
UL/cUL/IEC/EN 62368-1认证，CB报告，CE标志
已通过EMI EN55032:2015的EMC标准
已通过EMS EN55035:2017的EMC标准
通过了加拿大ICES-003第7期（2020年）的EMC标准
通过了47CFR FCC第15部分B子部分的EMC标准
应用
工业设备
传感设备
仪器
无线网络
电信/数据通信
测量
航空
除非另有说明，以下规格参数都是在TA=25°C、名义输入电压和额定输出电流除非另有说明的情况下测出的结果。
型号 | Input Voltage | Input Current | Output Voltage | Output Current | Efficiency | Maximum | |
No-Load | Full Load | ||||||
Vdc | (mA TYP) | (mA TYP) | Vdc | mA(TYP) | %(TYP) | μF | |
YNC30-36S05 | 9-75 | 10 | 916 | 5 | 6000 | 91 | 10200 |
YNC30-36S12 | 9-75 | 8 | 916 | 12 | 2500 | 91 | 1800 |
YNC30-36S15 | 9-75 | 8 | 916 | 15 | 2000 | 91 | 1125 |
YNC30-36S24 | 9-75 | 8 | 916 | 24 | 1250 | 91 | 450 |
YNC30-36S48 | 9-75 | 8 | 916 | 48 | 625 | 91 | 110 |
YNC30-36D12 | 9-75 | 8 | 916 | ± 12 | ± 1250 | 91 | ± 900 |
YNC30-36D15 | 9-75 | 8 | 916 | ± 15 | ± 1000 | 91 | ± 600 |
Parameters | Conditions | Min | Typ | Max | Units | |
Input Voltage | 9 | 36 | 75 | Vdc | ||
Input Surge Voltage | -0.7 | 100 | Vdc | |||
Start-up Voltage | 9 | Vdc | ||||
Under Voltage Shutdown | 7.5 | Vdc | ||||
Start-up Time | Constant Resistive Load, | Power-up | 35 | ms | ||
Remote ON/OFF | 35 | |||||
Input Filter | All Models | Internal Pi type | ||||
Remote ON/OFF | Positive Logic | DC/DC ON | Open or 3.5 Vdc – 12 Vdc | |||
DC/DC OFF | Short or 0 Vdc – 1.2 Vdc | |||||
Input Current of Ctrl PIN | -0.5 | +0.5 | mA | |||
Remote Off Input Current | 3 | |||||
Parameters | Conditions | Min | Typ | Max | Units | |
Voltage Tolerance | 100% Load | -2 | +2 | % | ||
Line Regulation | Vin(min) to Vin(max) @100% Load | -0.5 | +0.5 | % | ||
Load Regulation | 0% Load to 100% Load | -0.5 | +0.5 | % | ||
Ripple & Noise | With an 1uF MLCC | 5Vout | 100 | mVp-p | ||
12Vout, ±12Vout | 120 | |||||
15Vout, ±15Vout | 150 | |||||
24Vout | 150 | |||||
48Vout | 200 | |||||
Transient Response Setting Time | 25% Load Step Change | 350 | 500 | us | ||
Transient Response Deviation | 25% load step change | -5 | ±3 | +5 | % | |
Temperature Coefficient | -0.02 | +0.02 | %/°C | |||
Voltage Adjustability | % of Vout | -10 | +10 | % | ||
Output Power Protection | % of Io, Hiccup mode, | 115 | 155 | 190 | % | |
Short Circuit Protection | Continuous [Hiccup Mode], Auto-Recovery | |||||
Over Voltage Protection | 5Vout | 6.2 | Vdc | |||
12Vout, ±12Vout | 15 | |||||
15Vout, ±15Vout | 18 | |||||
24Vout | 30 | |||||
48Vout | 60 | |||||
Parameters | Conditions | Min | Typ | Max | Units | |
Isolation Voltage | Input to Output (60sec) | 2250 | Vdc | |||
Input (Output) to Case (60sec) | 1000 | Vdc | ||||
Isolation Resistance | 500Vdc | 1000 | MΩ | |||
Isolation Capacitance | 100kHz, 1V | 2200 | pF | |||
Switching Frequency | Full Load, | 5Vout | 180 | KHz | ||
Other | 210 | |||||
Operating Ambient Temperature | Nominal Vin, | All models | -40 | 70 | °C | |
Thermal Impedance | 20LFM | 11.6 | °C/W | |||
100LFM | 10.5 | |||||
200LFM | 8.7 | |||||
400LFM | 5.1 | |||||
Maximum Case Temperature | 105 | °C | ||||
Over Temperature Protection | Case temperature | 115 | °C | |||
Storage Temperature | -55 | 125 | °C | |||
Humidity | Non Condensing | 5 | 95 | % | ||
Cooling | Natural Convection | |||||
Case Material | Copper | |||||
Potting Material | Silicone (UL94-V0) | |||||
MTBF | MIL-HDBK-217F@25℃ (calculated) | 5.73X105 | Hours | |||
Weight | 42 | g | ||||
Dimensions | 50.8 x 25.4 x 11.6 | mm | ||||
MARKINGS AND DIMENSIONS
