S-L2980 系列是使用 CMOS 技术开发的低压差、高精度输出电压、低消耗电流的正电压型电压稳压器。
S-L2980系列: ABLIC高纹波抑制率 低压差型 CMOS电压稳压器
S-L2980 系列是使用 CMOS 技术开发的低压差、高精度输出电压、低消耗电流的正电压型电压稳压器。
由于内置了低导通电阻晶体管，因而电压差低，且能够获得较大的输出电流。此外，还内置 ON/OFF 控制电路，
以延长电池的使用寿命。
和以往 CMOS 工艺电压稳压器相比，所能使用的电容器种类得以增多，也能使用小型的陶瓷电容器。
特点
输出电压 : 在1.5 V ~ 6.0 V的范围内，可以0.1 V为进阶单位来选择
输出电压精度 : ±2.0%
输入输出电压差 : 120 mV (典型值) (输出为3.0 V的产品, IOUT=50 mA)
消耗电流 : 工作时 : 90 µA (典型值), 140 µA (最大值)
休眠时 : 0.1 µA (典型值), 1.0 µA (最大值)
输出电流 : 可输出150 mA (VIN ≥VOUT(S) + 1.0 V)*1
输出电容器 : 能够使用大于或等于1.0 µF的陶瓷电容器
(输出电压值为小于或等于1.7 V的产品，能够使用大于或等于2.2 µF的陶瓷电容器)
纹波抑制率 : 70 dB (典型值) (f1.0 kHz)
内置ON/OFF控制电路 : 能够延长电池的使用寿命
工作温度范围 : Ta = –40°C to +85°C
无铅、Sn 100%、无卤素*2
*1. 请注意输出大电流时的封装容许功耗。
*2. 详情请参阅“ 产品型号的构成”。
用途
电池供电设备的稳压电源
通信设备的稳压电源
家电产品的稳压电源
携带电话用的稳压电源
封装

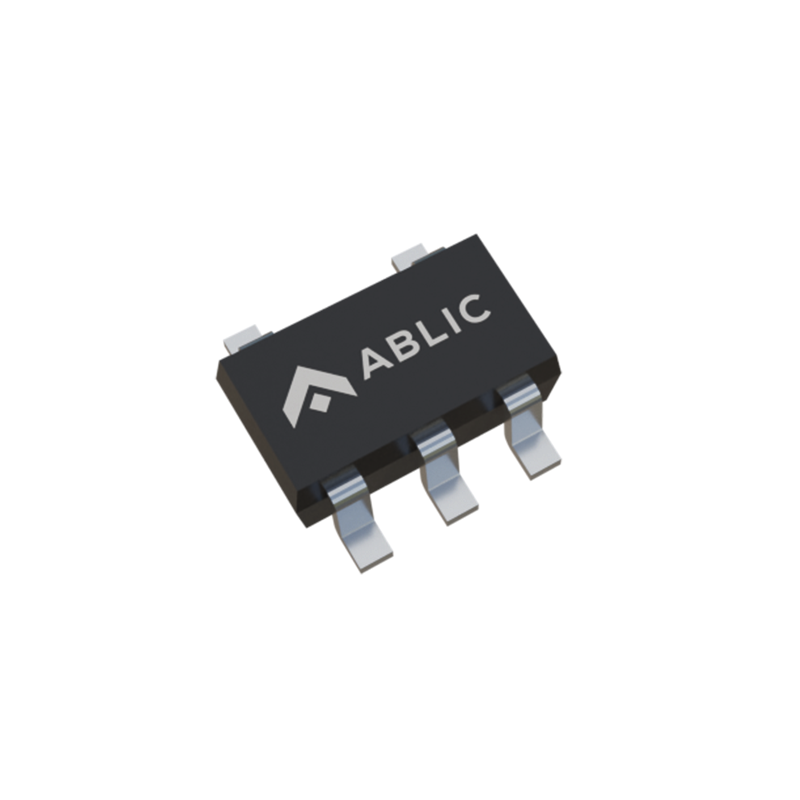

SOT-23-5
Part List
Part number | Output voltage | ON/OFF logic | Operating temperature | Package | MOQ (pcs/reel) |
S-L2980A15MC-TF-U | 1.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A16MC-TF-U | 1.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A17MC-TF-U | 1.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A18MC-TF-U | 1.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A19MC-TF-U | 1.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A20MC-TF-U | 2.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A21MC-TF-U | 2.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A22MC-TF-U | 2.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A23MC-TF-U | 2.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A24MC-TF-U | 2.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A25MC-TF-U | 2.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A26MC-TF-U | 2.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A27MC-TF-U | 2.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A28MC-TF-U | 2.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A29MC-TF-U | 2.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A30MC-TF-U | 3.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A31MC-TF-U | 3.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A32MC-TF-U | 3.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A33MC-TF-U | 3.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A34MC-TF-U | 3.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A35MC-TF-U | 3.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A36MC-TF-U | 3.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A37MC-TF-U | 3.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A38MC-TF-U | 3.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A39MC-TF-U | 3.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A40MC-TF-U | 4.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A41MC-TF-U | 4.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A42MC-TF-U | 4.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A43MC-TF-U | 4.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A44MC-TF-U | 4.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A45MC-TF-U | 4.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A46MC-TF-U | 4.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A47MC-TF-U | 4.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A48MC-TF-U | 4.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A49MC-TF-U | 4.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A50MC-TF-U | 5.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A51MC-TF-U | 5.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A52MC-TF-U | 5.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A53MC-TF-U | 5.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A54MC-TF-U | 5.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A55MC-TF-U | 5.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A56MC-TF-U | 5.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A57MC-TF-U | 5.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A58MC-TF-U | 5.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A59MC-TF-U | 5.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-L2980A60MC-TF-U | 6.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
