S-817系列是采用CMOS技术开发的3端子正电压稳压器
S-817系列：ABLIC 超小型CMOS电压稳压器
S-817系列是采用CMOS技术开发的3端子正电压稳压器。另外，作为输出电容器，也可以使用小型陶瓷电容器，而且在低负载(1 µA)条件下，也能稳定工作。
与传统的电压稳压器相比，本产品具有低消耗电流、超小型封装(SNT-4A : 1.2 mm 1.6 mm)的特点，因此最适用于小型携带设备的电源。
特点
输出电压 ： 在1.1 V ~ 6.0 V的范围内，可以0.1 V为进阶来选择
输出电压精度 ： ±2.0%
输入输出电压差 ： 160 mV(典型值) (5.0 V输出产品、IOUT=10 mA)
消耗电流 ： 工作时：1.2 µA(典型值)、2.5 µA(Max)
输出电流 ： 可输出50 mA(3.0 V输出产品、VIN=5 V)*1
可输出75 mA(5.0 V输出产品、VIN=7 V)*1
输出电容器 ： 能够使用大于或等于0.1 µF的陶瓷电容器
内置短路保护电路 ： 仅限S-817A系列
输入稳定度 ： 在低负载(1 µA)的条件下也能稳定工作
工作温度范围 ： Ta = -40°C ~ +85°C
无铅、Sn 100%、无卤素*2
*1. 请注意在输出大电流时的封装容许功耗。
*2. 详情请参阅“ 产品型号的构成”。
用途
电池供电设备的稳压电源
通信设备的稳压电源
家电产品的稳压电源
封装

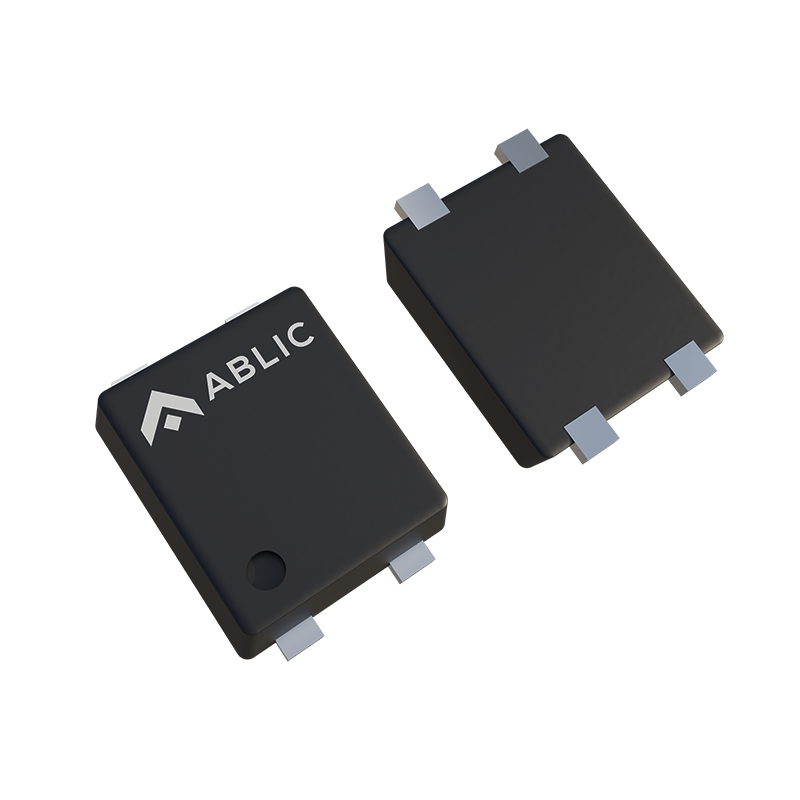

SNT-4A

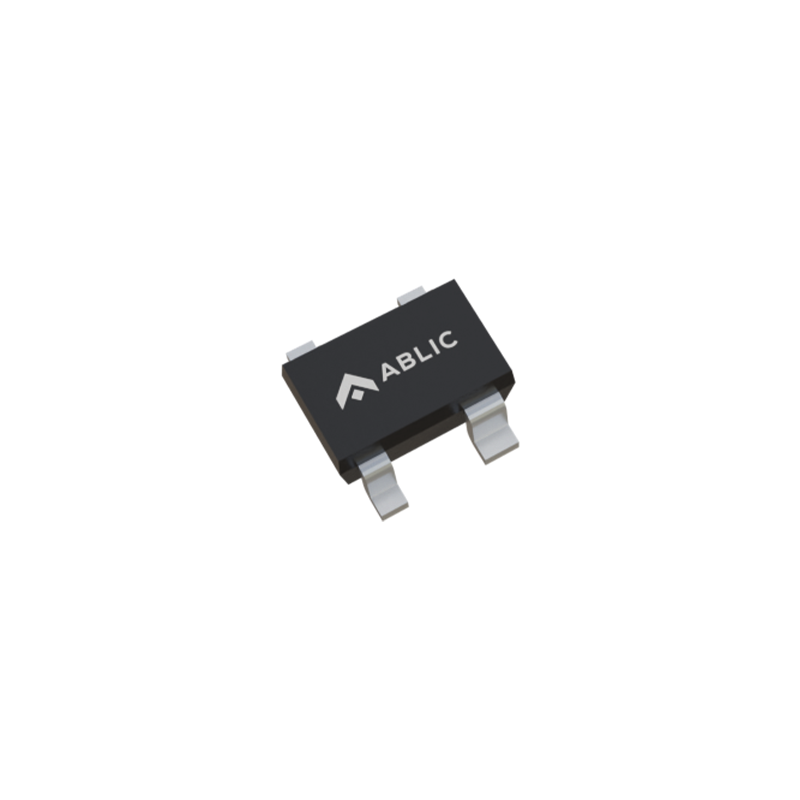

SC-82AB

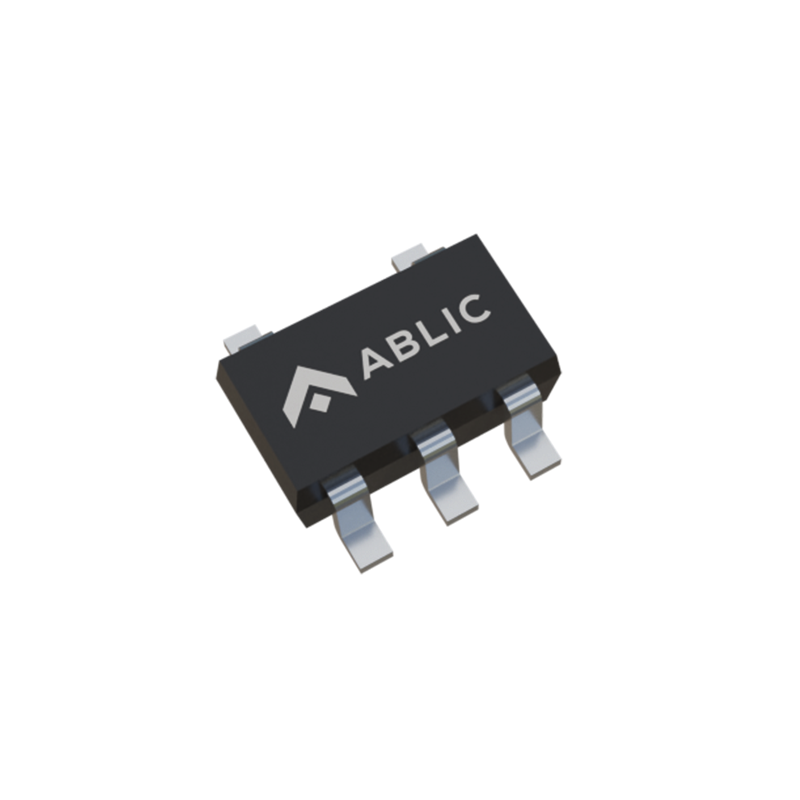

SOT-23-5

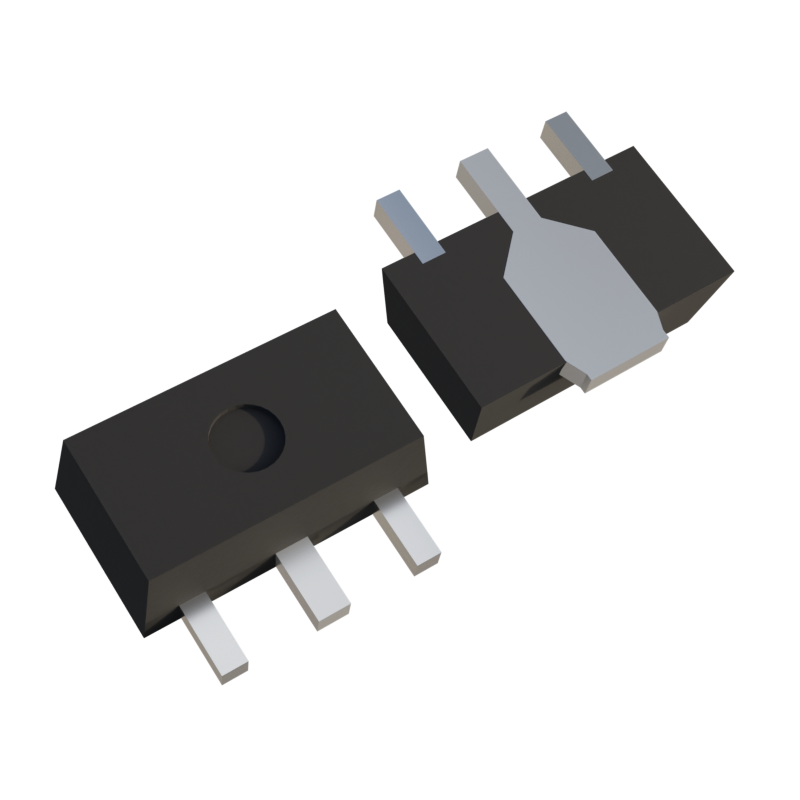

SOT-89-3
TO-92
Part List
Part number | Output voltage | Short circuit protection | Operating temperature | Package | MOQ (pcs/reel) |
S-817A11ANB-CUAT2U | 1.1V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A11APF-CUATFU | 1.1V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A12ANB-CUBT2U | 1.2V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A12APF-CUBTFU | 1.2V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A13ANB-CUCT2U | 1.3V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A13APF-CUCTFU | 1.3V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A14AMC-CUDT2U | 1.4V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-817A14ANB-CUDT2U | 1.4V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A14APF-CUDTFU | 1.4V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A15ANB-CUET2U | 1.5V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A15APF-CUETFU | 1.5V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A16AMC-CUFT2U | 1.6V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-817A16ANB-CUFT2U | 1.6V | Available | -40℃-85℃ | SC-82AB | 5000 |
S-817A16APF-CUFTFU | 1.6V | Available | -40℃-85℃ | SNT-4 | 3000 |
S-817A17ANB-CUGT2U | 1.7V | Available | -40℃-85℃ | SC-82AB | 5000 |
S-817A17APF-CUGTFU | 1.7V | Available | -40℃-85℃ | SNT-4 | 3000 |
S-817A18ANB-CUHT2U | 1.8V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A18APF-CUHTFU | 1.8V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A19ANB-CUIT2U | 1.9V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A19APF-CUITFU | 1.9V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A20ANB-CUJT2U | 2.0V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A20APF-CUJTFU | 2.0V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A21ANB-CUKT2U | 2.1V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A21APF-CUKTFU | 2.1V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A22ANB-CULT2U | 2.2V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A22APF-CULTFU | 2.2V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A23ANB-CUMT2U | 2.3V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A23APF-CUMTFU | 2.3V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A24ANB-CUNT2U | 2.4V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A24APF-CUNTFU | 2.4V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A25ANB-CUOT2U | 2.5V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A25APF-CUOTFU | 2.5V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A26ANB-CUPT2U | 2.6V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A26APF-CUPTFU | 2.6V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A27ANB-CUQT2U | 2.7V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A27APF-CUQTFU | 2.7V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A28ANB-CURT2U | 2.8V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A28APF-CURTFU | 2.8V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A29ANB-CUST2U | 2.9V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A29APF-CUSTFU | 2.9V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A30ANB-CUTT2U | 3.0V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A30APF-CUTTFU | 3.0V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A31ANB-CUUT2U | 3.1V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A31APF-CUUTFU | 3.1V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A32ANB-CUVT2U | 3.2V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A32APF-CUVTFU | 3.2V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A33ANB-CUWT2U | 3.3V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A33APF-CUWTFU | 3.3V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A34ANB-CUXT2U | 3.4V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A34APF-CUXTFU | 3.4V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A35ANB-CUYT2U | 3.5V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A35APF-CUYTFU | 3.5V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A36ANB-CUZT2U | 3.6V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A36APF-CUZTFU | 3.6V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A37ANB-CVAT2U | 3.7V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A37APF-CVATFU | 3.7V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A38ANB-CVBT2U | 3.8V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A38APF-CVBTFU | 3.8V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A39ANB-CVCT2U | 3.9V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A39APF-CVCTFU | 3.9V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A40ANB-CVDT2U | 4.0V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A40APF-CVDTFU | 4.0V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A41ANB-CVET2U | 4.1V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A41APF-CVETFU | 4.1V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A42ANB-CVFT2U | 4.2V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A42APF-CVFTFU | 4.2V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A43ANB-CVGT2U | 4.3V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A43APF-CVGTFU | 4.3V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A44ANB-CVHT2U | 4.4V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A44APF-CVHTFU | 4.4V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A45ANB-CVIT2U | 4.5V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A45APF-CVITFU | 4.5V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A46ANB-CVJT2U | 4.6V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A46APF-CVJTFU | 4.6V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A47ANB-CVKT2U | 4.7V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A47APF-CVKTFU | 4.7V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A48ANB-CVLT2U | 4.8V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A48APF-CVLTFU | 4.8V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A49ANB-CVMT2U | 4.9V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A49APF-CVMTFU | 4.9V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A50ANB-CVNT2U | 5.0V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A50APF-CVNTFU | 5.0V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A51ANB-CVOT2U | 5.1V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A51APF-CVOTFU | 5.1V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A52ANB-CVPT2U | 5.2V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A52APF-CVPTFU | 5.2V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A53ANB-CVQT2U | 5.3V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A53APF-CVQTFU | 5.3V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A54ANB-CVRT2U | 5.4V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A54APF-CVRTFU | 5.4V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A55ANB-CVST2U | 5.5V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A55APF-CVSTFU | 5.5V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A56ANB-CVTT2U | 5.6V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A56APF-CVTTFU | 5.6V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A57ANB-CVUT2U | 5.7V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A57APF-CVUTFU | 5.7V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A58ANB-CVVT2U | 5.8V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A58APF-CVVTFU | 5.8V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A59ANB-CVWT2U | 5.9V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A59APF-CVWTFU | 5.9V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817A60ANB-CVXT2U | 6.0V | Available | -40℃-85℃ | SC-82AB | 3000 |
S-817A60APF-CVXTFU | 6.0V | Available | -40℃-85℃ | SNT-4 | 5000 |
S-817B11AMC-CWAT2U | 1.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B11AUA-CWAT2U | 1.1V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B11AY-B2-U | 1.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B11AY-Z2-U | 1.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B12AMC-CWBT2U | 1.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B12AUA-CWBT2U | 1.2V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B12AY-B2-U | 1.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B12AY-Z2-U | 1.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B13AMC-CWCT2U | 1.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B13AUA-CWCT2U | 1.3V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B13AY-B2-U | 1.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B13AY-Z2-U | 1.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B14AMC-CWDT2U | 1.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B14AUA-CWDT2U | 1.4V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B14AY-B2-U | 1.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B14AY-Z2-U | 1.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B15AMC-CWET2U | 1.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B15AUA-CWET2U | 1.5V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B15AY-B2-U | 1.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B15AY-Z2-U | 1.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B16AMC-CWFT2U | 1.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B16AUA-CWFT2U | 1.6V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B16AY-B2-U | 1.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B16AY-Z2-U | 1.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B17AMC-CWGT2U | 1.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B17AUA-CWGT2U | 1.7V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B17AY-B2-U | 1.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B17AY-Z2-U | 1.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B18AMC-CWHT2U | 1.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B18AUA-CWHT2U | 1.8V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B18AY-B2-U | 1.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B18AY-Z2-U | 1.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B19AMC-CWIT2U | 1.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B19AUA-CWIT2U | 1.9V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B19AY-B2-U | 1.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B19AY-Z2-U | 1.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B20AMC-CWJT2U | 2.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B20AUA-CWJT2U | 2.0V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B20AY-B2-U | 2.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B20AY-Z2-U | 2.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B21AMC-CWKT2U | 2.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B21AUA-CWKT2U | 2.1V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B21AY-B2-U | 2.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B21AY-Z2-U | 2.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B22AMC-CWLT2U | 2.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B22AUA-CWLT2U | 2.2V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B22AY-B2-U | 2.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B22AY-Z2-U | 2.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B23AMC-CWMT2U | 2.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B23AUA-CWMT2U | 2.3V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B23AY-B2-U | 2.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B23AY-Z2-U | 2.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B24AMC-CWNT2U | 2.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B24AUA-CWNT2U | 2.4V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B24AY-B2-U | 2.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B24AY-Z2-U | 2.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B25AMC-CWOT2U | 2.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B25AUA-CWOT2U | 2.5V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B25AY-B2-U | 2.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B25AY-Z2-U | 2.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B26AMC-CWPT2U | 2.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B26AUA-CWPT2U | 2.6V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B26AY-B2-U | 2.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B26AY-Z2-U | 2.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B27AMC-CWQT2U | 2.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B27AUA-CWQT2U | 2.7V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B27AY-B2-U | 2.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B27AY-Z2-U | 2.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B28AMC-CWRT2U | 2.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B28AUA-CWRT2U | 2.8V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B28AY-B2-U | 2.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B28AY-Z2-U | 2.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B29AMC-CWST2U | 2.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B29AUA-CWST2U | 2.9V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B29AY-B2-U | 2.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B29AY-Z2-U | 2.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B30AMC-CWTT2U | 3.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B30AUA-CWTT2U | 3.0V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B30AY-B2-U | 3.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B30AY-Z2-U | 3.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B31AMC-CWUT2U | 3.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B31AUA-CWUT2U | 3.1V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B31AY-B2-U | 3.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B31AY-Z2-U | 3.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B32AMC-CWVT2U | 3.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B32AUA-CWVT2U | 3.2V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B32AY-B2-U | 3.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B32AY-Z2-U | 3.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B33AMC-CWWT2R | 3.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B33AMC-CWWT2U | 3.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B33AUA-CWWT2U | 3.3V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B33AY-B2-U | 3.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B33AY-Z2-U | 3.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B34AMC-CWXT2U | 3.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B34AUA-CWXT2U | 3.4V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B34AY-B2-U | 3.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B34AY-Z2-U | 3.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B35AMC-CWYT2U | 3.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B35AUA-CWYT2U | 3.5V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B35AY-B2-U | 3.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B35AY-Z2-U | 3.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B36AMC-CWZT2U | 3.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B36AUA-CWZT2U | 3.6V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B36AY-B2-U | 3.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B36AY-Z2-U | 3.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B37AMC-CXAT2U | 3.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B37AUA-CXAT2U | 3.7V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B37AY-B2-U | 3.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B37AY-Z2-U | 3.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B38AMC-CXBT2U | 3.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B38AUA-CXBT2U | 3.8V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B38AY-B2-U | 3.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B38AY-Z2-U | 3.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B39AMC-CXCT2U | 3.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B39AUA-CXCT2U | 3.9V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B39AY-B2-U | 3.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B39AY-Z2-U | 3.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B40AMC-CXDT2U | 4.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B40AUA-CXDT2U | 4.0V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B40AY-B2-U | 4.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B40AY-Z2-U | 4.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B41AMC-CXET2U | 4.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B41AUA-CXET2U | 4.1V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B41AY-B2-U | 4.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B41AY-Z2-U | 4.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B42AMC-CXFT2U | 4.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B42AUA-CXFT2U | 4.2V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B42AY-B2-U | 4.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B42AY-Z2-U | 4.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B43AMC-CXGT2U | 4.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B43AUA-CXGT2U | 4.3V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B43AY-B2-U | 4.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B43AY-Z2-U | 4.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B44AMC-CXHT2U | 4.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B44AUA-CXHT2U | 4.4V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B44AY-B2-U | 4.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B44AY-Z2-U | 4.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B45AMC-CXIT2U | 4.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B45AUA-CXIT2U | 4.5V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B45AY-B2-U | 4.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B45AY-Z2-U | 4.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B46AMC-CXJT2U | 4.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B46AUA-CXJT2U | 4.6V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B46AY-B2-U | 4.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B46AY-Z2-U | 4.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B47AMC-CXKT2U | 4.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B47AUA-CXKT2U | 4.7V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B47AY-B2-U | 4.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B47AY-Z2-U | 4.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B48AMC-CXLT2U | 4.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B48AUA-CXLT2U | 4.8V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B48AY-B2-U | 4.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B48AY-Z2-U | 4.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B49AMC-CXMT2U | 4.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B49AUA-CXMT2U | 4.9V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B49AY-B2-U | 4.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B49AY-Z2-U | 4.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B50AMC-CXNT2U | 5.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B50AUA-CXNT2U | 5.0V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B50AY-B2-U | 5.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B50AY-Z2-U | 5.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B51AMC-CXOT2U | 5.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B51AUA-CXOT2U | 5.1V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B51AY-B2-U | 5.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B51AY-Z2-U | 5.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B52AMC-CXPT2U | 5.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B52AUA-CXPT2U | 5.2V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B52AY-B2-U | 5.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B52AY-Z2-U | 5.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B53AMC-CXQT2U | 5.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B53AUA-CXQT2U | 5.3V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B53AY-B2-U | 5.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B53AY-Z2-U | 5.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B54AMC-CXRT2U | 5.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B54AUA-CXRT2U | 5.4V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B54AY-B2-U | 5.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B54AY-Z2-U | 5.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B55AMC-CXST2U | 5.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B55AUA-CXST2U | 5.5V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B55AY-B2-U | 5.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B55AY-Z2-U | 5.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B56AMC-CXTT2U | 5.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B56AUA-CXTT2U | 5.6V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B56AY-B2-U | 5.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B56AY-Z2-U | 5.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B57AMC-CXUT2U | 5.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B57AUA-CXUT2U | 5.7V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B57AY-B2-U | 5.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B57AY-Z2-U | 5.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B58AMC-CXVT2U | 5.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B58AUA-CXVT2U | 5.8V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B58AY-B2-U | 5.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B58AY-Z2-U | 5.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B59AMC-CXWT2U | 5.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B59AUA-CXWT2U | 5.9V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B59AY-B2-U | 5.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B59AY-Z2-U | 5.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B60AMC-CXXT2U | 6.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-817B60AUA-CXXT2U | 6.0V | Unavailable | -40℃-85℃ | SOT-89-3 | 1000 |
S-817B60AY-B2-U | 6.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-817B60AY-Z2-U | 6.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
在线咨询
微信服务
