S-812C 系列：ABLIC 16 V输入、75mA的电压稳压器
S-812C系列是使用CMOS技术开发的高耐压电压稳压器。最大工作电压为16 V的高电压，因此最适用于需要耐
压的应用电路。此外，不仅消耗电流小而且还内置ON/OFF控制电路，最适合在低消耗电力的携带设备上使用。
由于在内部备有相位补偿电路，故可稳定工作，因此作为输出电容器可使用陶瓷电容器。
特点
输出电压 : 在2.0 V ~ 6.0 V的范围内，可以0.1 V为进阶单位来选择
输入电压 : 16 V (最大值)
输出电压精度 : ±2.0%
输入输出电压差 : 120 mV (典型值) (VOUT = 5.0 V、IOUT = 10 mA)
消耗电流 : 工作时 : 1.0 µA (典型值)、1.8 µA (最大值) (3.0 V输出产品)
输出电流 : 可输出50 mA (3.0 V输出产品，VIN = 5 V)*1
可输出75 mA (5.0 V输出产品，VIN = 7 V)*1
内置ON/OFF控制电路 : 可选择电源开/关控制功能的有 / 无
可选择稳压器动态的“H” / “L”
内置短路保护电路 : 可选择短路保护电路的有 / 无
有短路保护 : 短路电流 40 mA (典型值)
工作温度范围 : Ta =-40C ~ +85°C
无铅、Sn 100%、无卤素*2
*1. 请注意在输出大电流时的封装容许功耗。
*2. 详情请参阅“产品型号的构成”。
用途
家电产品的稳压电源
使用电池设备的稳压电源
通信设备的稳压电源
封装

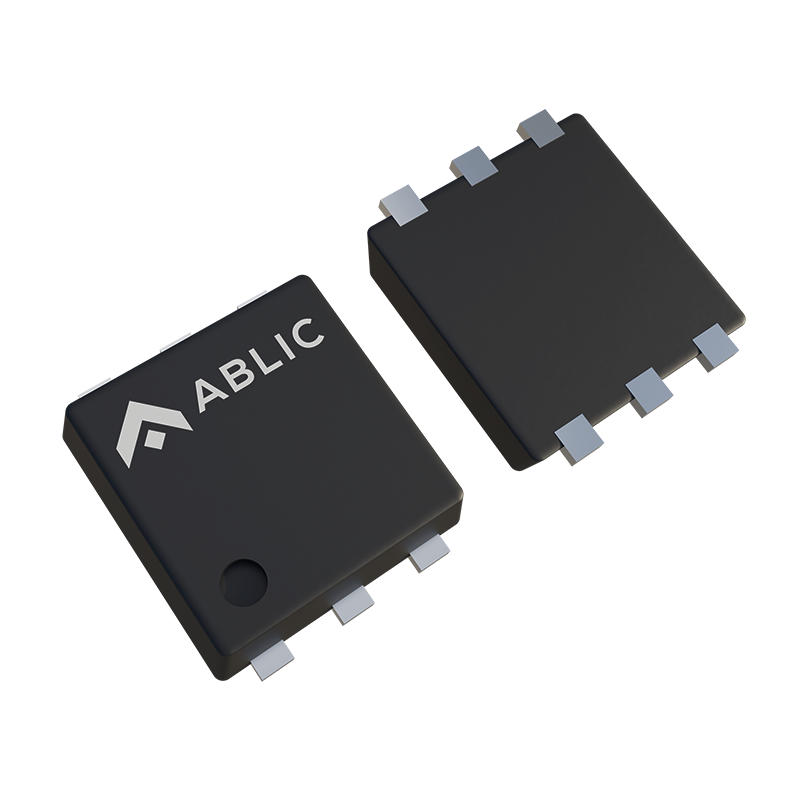

SNT-6A(H)

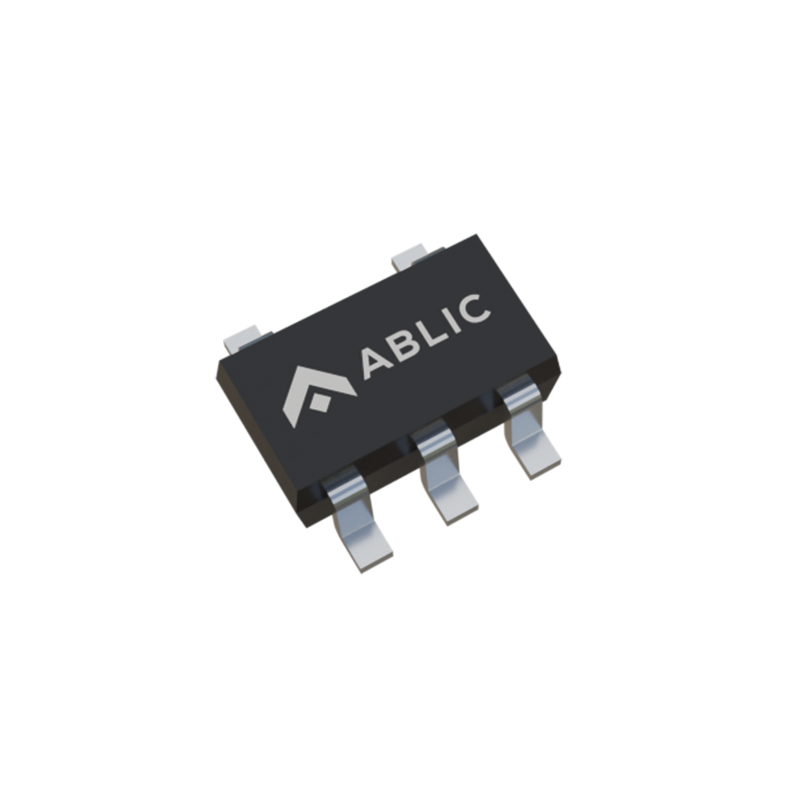

SOT-23-5

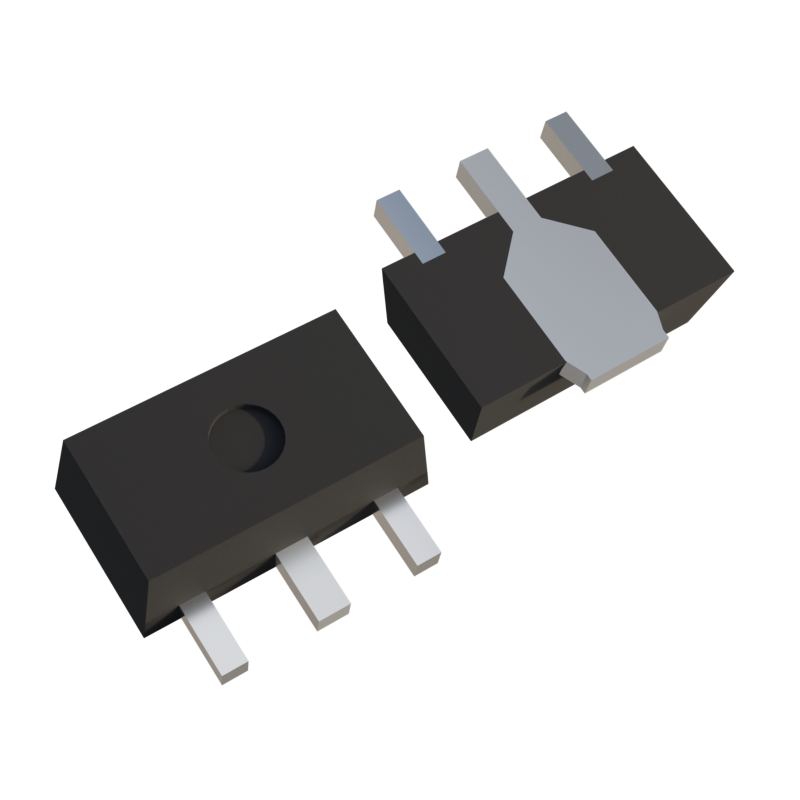

SOT-89-3
SOT-89-5
TO-92
WLP-4R
Part List
Part number | Output voltage | Short-circuit protection and power-off function | Operating temperature [℃] | Package | MOQ (pcs/reel) |
S-812C20AMC-C2AT2U | 2.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C20AUA-C2AT2U | 2.0V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C20AY-B2-U | 2.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C20AY-Z2-U | 2.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C20BMC-C4AT2U | 2.0V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C20BPI-C4ATFU | 2.0V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C21AMC-C2BT2U | 2.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C21AUA-C2BT2U | 2.1V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C21AY-B2-U | 2.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C21AY-Z2-U | 2.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C21BMC-C4BT2U | 2.1V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C21BPI-C4BTFU | 2.1V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C22AMC-C2CT2U | 2.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C22AUA-C2CT2U | 2.2V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C22AY-B2-U | 2.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C22AY-Z2-U | 2.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C22BMC-C4CT2U | 2.2V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C22BPI-C4CTFU | 2.2V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C23AMC-C2DT2U | 2.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C23AUA-C2DT2U | 2.3V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C23AY-B2-U | 2.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C23AY-Z2-U | 2.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C23BMC-C4DT2U | 2.3V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C23BPI-C4DTFU | 2.3V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C24AMC-C2ET2U | 2.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C24AUA-C2ET2U | 2.4V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C24AY-B2-U | 2.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C24AY-Z2-U | 2.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C24BMC-C4ET2U | 2.4V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C24BPI-C4ETFU | 2.4V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C25AMC-C2FT2U | 2.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C25AUA-C2FT2U | 2.5V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C25AY-B2-U | 2.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C25AY-Z2-U | 2.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C25BMC-C4FT2U | 2.5V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C25BPI-C4FTFU | 2.5V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C26AMC-C2GT2U | 2.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C26AUA-C2GT2U | 2.6V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C26AY-B2-U | 2.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C26AY-Z2-U | 2.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C26BMC-C4GT2U | 2.6V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C26BPI-C4GTFU | 2.6V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C27AMC-C2HT2U | 2.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C27AUA-C2HT2U | 2.7V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C27AY-B2-U | 2.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C27AY-Z2-U | 2.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C27BMC-C4HT2U | 2.7V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C27BPI-C4HTFU | 2.7V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C28AMC-C2IT2U | 2.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C28AUA-C2IT2U | 2.8V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C28AY-B2-U | 2.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C28AY-Z2-U | 2.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C28BMC-C4IT2U | 2.8V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C28BPI-C4ITFU | 2.8V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C29AMC-C2JT2U | 2.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C29AUA-C2JT2U | 2.9V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C29AY-B2-U | 2.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C29AY-Z2-U | 2.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C29BMC-C4JT2U | 2.9V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C29BPI-C4JTFU | 2.9V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C30AMC-C2KT2U | 3.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C30AUA-C2KT2U | 3.0V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C30AY-B2-U | 3.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C30AY-Z2-U | 3.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C30BMC-C4KT2U | 3.0V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C30BPI-C4KTFU | 3.0V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C31AMC-C2LT2U | 3.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C31AUA-C2LT2U | 3.1V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C31AY-Z2-U | 3.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C31BMC-C4LT2U | 3.1V | Available | -40℃-85℃ | TO-92 | 2000 |
S-812C31BPI-C4LTFU | 3.1V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C32AMC-C2MT2U | 3.1V | Unavailable | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C32AUA-C2MT2U | 3.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C32AY-B2-U | 3.2V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C32AY-Z2-U | 3.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C32BMC-C4MT2U | 3.2V | Available | -40℃-85℃ | TO-92 | 2000 |
S-812C32BPI-C4MTFU | 3.2V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C33AMC-C2NT2U | 3.2V | Unavailable | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C33AUA-C2NT2U | 3.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C33AY-B2-U | 3.3V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C33AY-Z2-U | 3.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C33BMC-C4NT2U | 3.3V | Available | -40℃-85℃ | TO-92 | 2000 |
S-812C33BPI-C4NTFU | 3.3V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C33BUC-C4NT2U | 3.3V | Available | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C34AMC-C2OT2U | 3.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C34AUA-C2OT2U | 3.4V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C34AY-B2-U | 3.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C34AY-Z2-U | 3.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C34BMC-C4OT2U | 3.4V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C34BPI-C4OTFU | 3.4V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C35AMC-C2PT2U | 3.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C35AUA-C2PT2U | 3.5V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C35AY-B2-U | 3.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C35AY-Z2-U | 3.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C35BMC-C4PT2U | 3.5V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C35BPI-C4PTFU | 3.5V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C36AMC-C2QT2U | 3.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C36AUA-C2QT2U | 3.6V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C36AY-B2-U | 3.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C36AY-Z2-U | 3.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C36BMC-C4QT2U | 3.6V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C36BPI-C4QTFU | 3.6V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C37AMC-C2RT2U | 3.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C37AUA-C2RT2U | 3.7V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C37AY-B2-U | 3.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C37AY-Z2-U | 3.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C37BMC-C4RT2U | 3.7V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C37BPI-C4RTFU | 3.7V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C38AMC-C2ST2U | 3.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C38AUA-C2ST2U | 3.8V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C38AY-B2-U | 3.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C38AY-Z2-U | 3.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C38BMC-C4ST2U | 3.8V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C38BPI-C4STFU | 3.8V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C39AMC-C2TT2U | 3.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C39AUA-C2TT2U | 3.9V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C39AY-B2-U | 3.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C39AY-Z2-U | 3.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C39BMC-C4TT2U | 3.9V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C39BPI-C4TTFU | 3.9V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C40AMC-C2UT2U | 4.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C40AUA-C2UT2U | 4.0V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C40AY-B2-U | 4.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C40AY-Z2-U | 4.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C40BMC-C4UT2U | 4.0V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C40BPI-C4UTFU | 4.0V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C41AMC-C2VT2U | 4.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C41AUA-C2VT2U | 4.1V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C41AY-B2-U | 4.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C41AY-Z2-U | 4.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C41BMC-C4VT2U | 4.1V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C41BPI-C4VTFU | 4.1V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C42AMC-C2WT2U | 4.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C42AUA-C2WT2U | 4.2V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C42AY-B2-U | 4.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C42AY-Z2-U | 4.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C42BMC-C4WT2U | 4.2V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C42BPI-C4WTFU | 4.2V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C43AMC-C2XT2U | 4.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C43AUA-C2XT2U | 4.3V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C43AY-B2-U | 4.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C43AY-Z2-U | 4.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C43BMC-C4XT2U | 4.3V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C43BPI-C4XTFU | 4.3V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C44AMC-C2YT2U | 4.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C44AUA-C2YT2U | 4.4V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C44AY-B2-U | 4.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C44AY-Z2-U | 4.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C44BMC-C4YT2U | 4.4V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C44BPI-C4YTFU | 4.4V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C45AMC-C2ZT2U | 4.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C45AUA-C2ZT2U | 4.5V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C45AY-B2-U | 4.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C45AY-Z2-U | 4.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C45BMC-C4ZT2U | 4.5V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C45BPI-C4ZTFU | 4.5V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C46AMC-C3AT2U | 4.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C46AUA-C3AT2U | 4.6V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C46AY-B2-U | 4.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C46AY-Z2-U | 4.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C46BMC-C5AT2U | 4.6V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C46BPI-C5ATFU | 4.6V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C47AMC-C3BT2U | 4.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C47AUA-C3BT2U | 4.7V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C47AY-B2-U | 4.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C47AY-Z2-U | 4.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C47BMC-C5BT2U | 4.7V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C47BPI-C5BTFU | 4.7V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C48AMC-C3CT2U | 4.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C48AUA-C3CT2U | 4.8V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C48AY-B2-U | 4.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C48AY-Z2-U | 4.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C48BMC-C5CT2U | 4.8V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C48BPI-C5CTFU | 4.8V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C49AMC-C3DT2U | 4.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C49AUA-C3DT2U | 4.9V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C49AY-B2-U | 4.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C49AY-Z2-U | 4.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C49BMC-C5DT2U | 4.9V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C49BPI-C5DTFU | 4.9V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C50AMC-C3ET2U | 5.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C50AUA-C3ET2U | 5.0V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C50AY-B2-U | 5.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C50AY-Z2-U | 5.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C50BMC-C5ET2U | 5.0V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C50BPI-C5ETFU | 5.0V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C50BUC-C5ET2U | 5.0V | Available | -40℃-85℃ | SOT-89-5 | 3000 |
S-812C51AMC-C3FT2U | 5.1V | Unavailable | -40℃-85℃ | SOT-23-5 | 1000 |
S-812C51AUA-C3FT2U | 5.1V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C51AY-B2-U | 5.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C51AY-Z2-U | 5.1V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C51BMC-C5FT2U | 5.1V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C51BPI-C5FTFU | 5.1V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C52AMC-C3GT2U | 5.2V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C52AUA-C3GT2U | 5.2V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C52AY-B2-U | 5.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C52AY-Z2-U | 5.2V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C52BMC-C5GT2U | 5.2V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C52BPI-C5GTFU | 5.2V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C53AMC-C3HT2U | 5.3V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C53AUA-C3HT2U | 5.3V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C53AY-B2-U | 5.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C53AY-Z2-U | 5.3V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C53BMC-C5HT2U | 5.3V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C53BPI-C5HTFU | 5.3V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C54AMC-C3IT2U | 5.4V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C54AUA-C3IT2U | 5.4V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C54AY-B2-U | 5.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C54AY-Z2-U | 5.4V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C54BMC-C5IT2U | 5.4V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C54BPI-C5ITFU | 5.4V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C55AMC-C3JT2U | 5.5V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C55AUA-C3JT2U | 5.5V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C55AY-B2-U | 5.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C55AY-Z2-U | 5.5V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C55BMC-C5JT2U | 5.5V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C55BPI-C5JTFU | 5.5V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C56AMC-C3KT2U | 5.6V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C56AUA-C3KT2U | 5.6V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C56AY-B2-U | 5.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C56AY-Z2-U | 5.6V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C56BMC-C5KT2U | 5.6V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C56BPI-C5KTFU | 5.6V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C57AMC-C3LT2U | 5.7V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C57AUA-C3LT2U | 5.7V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C57AY-B2-U | 5.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C57AY-Z2-U | 5.7V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C57BMC-C5LT2U | 5.7V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C57BPI-C5LTFU | 5.7V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C58AMC-C3MT2U | 5.8V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C58AUA-C3MT2U | 5.8V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C58AY-B2-U | 5.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C58AY-Z2-U | 5.8V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C58BMC-C5MT2U | 5.8V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C58BPI-C5MTFU | 5.8V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C59AMC-C3NT2U | 5.9V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C59AUA-C3NT2U | 5.9V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C59AY-B2-U | 5.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C59AY-Z2-U | 5.9V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C59BMC-C5NT2U | 5.9V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C59BPI-C5NTFU | 5.9V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
S-812C60AMC-C3OT2U | 6.0V | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C60AUA-C3OT2U | 6.0V | Unavailable | -40℃-85℃ | SOT-89-5 | 1000 |
S-812C60AY-B2-U | 6.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C60AY-Z2-U | 6.0V | Unavailable | -40℃-85℃ | TO-92 | 2000 |
S-812C60BMC-C5OT2U | 6.0V | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-812C60BPI-C5OTFU | 6.0V | Available | -40℃-85℃ | SNT-6A(H) | 5000 |
在线咨询
微信服务
