S-1318系列是采用CMOS技术开发的超低消耗电流、低压差的正电压型电压稳压器
S-1318系列：ABLIC 95 nA超低消耗电流、5.5 V输入、100 mA的电压稳压器
S-1318系列是采用CMOS技术开发的超低消耗电流、低压差的正电压型电压稳压器。消耗电流仅为95 nA (典型值)，输出电压精度高达±1.0%，最适用于便携设备以及电池供电设备。
特点
• 输出电压 : 1.2 V, 1.5 V, 1.8 V, 2.2 V, 2.3 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V
• 输入电压 : 1.7 V ~ 5.5 V
• 输出电压精度 : ±1.0% (1.2 V输出产品 : ±15 mV) (Ta = +25°C)
• 输入输出电压差 : 45 mV (典型值) (2.5 V输出产品、IOUT = 10 mA时) (Ta = +25°C)
• 消耗电流 : 工作时 : 95 nA (典型值)
休眠时 : 2 nA (典型值)
• 输出电流 : 可输出75 mA (1.2 V输出产品、VIN≥VOUT(S) + 1.0 V时)*1
可输出100 mA (1.5 V, 1.8 V, 2.2 V, 2.3 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V
输出产品、VIN≥VOUT(S) + 1.0 V时)*1
• 输入电容器 : 可以使用陶瓷电容器 (大于或等于1.0 μF)
• 输出电容器 : 可以使用陶瓷电容器 (大于或等于1.0 μF)
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置ON / OFF控制电路 : 能够延长电池的使用寿命
可选择放电分路功能的 "有" / "无"
可选择下拉功能的 "有" / "无"
• 工作温度范围 Ta = −40°C ~ +85°C
• 无铅 (Sn 100%)、无卤素
*1. 请注意在输出大电流时不要超过IC的容许功耗。
用途
• 电池供电设备的稳压电源
• 便携通讯设备、数码相机、数码音响播放器的稳压电源
• 家用电器产品的稳压电源
封装

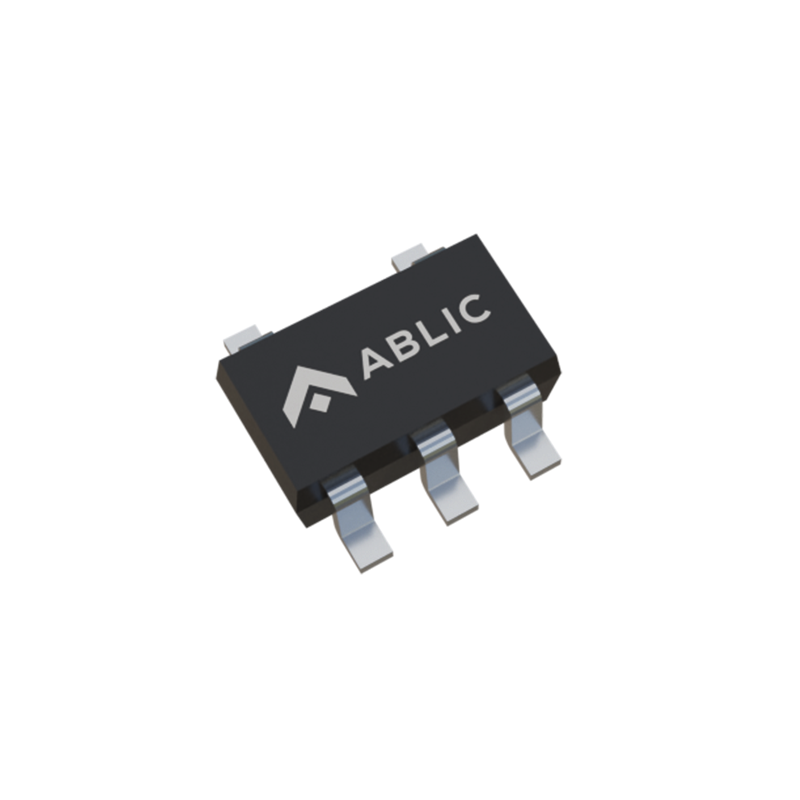

• SOT-23-5

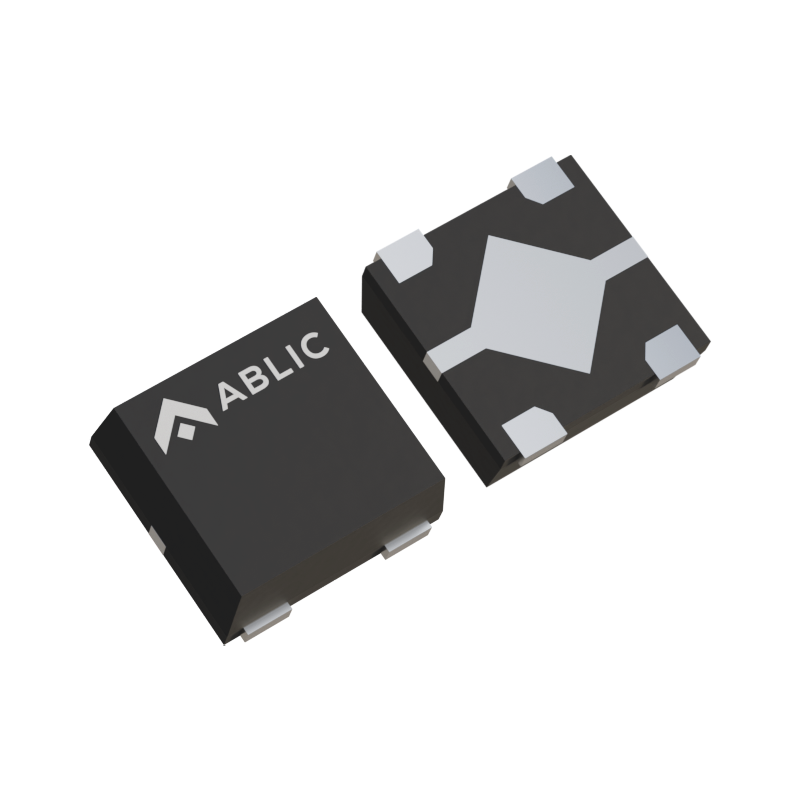

• HSNT-4(1010)
Part List
Part number | Output voltage | ON/OFF logic | Discharge Shunt Function | Constant Current Source Pull-down | Operating temperature | Package | MOQ (pcs/reel) |
S-1318A12-A4T2U4 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A12-M5T1U4 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A18-A4T2U4 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A18-M5T1U4 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A22-A4T2U4 | 2.2V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A22-M5T1U4 | 2.2V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A23-A4T2U4 | 2.3V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A23-M5T1U4 | 2.3V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A25-A4T2U4 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A25-M5T1U4 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A28-A4T2U4 | 2.8V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A28-M5T1U4 | 2.8V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A30-A4T2U4 | 3.0V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A30-M5T1U4 | 3.0V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318A33-A4T2U4 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318A33-M5T1U4 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B12-A4T2U4 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B12-M5T1U4 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B15-A4T2U4 | 1.5V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B15-M5T1U4 | 1.5V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B18-A4T2U4 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B18-M5T1U4 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B22-A4T2U4 | 2.2V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B22-M5T1U4 | 2.2V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B23-A4T2U4 | 2.3V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B23-M5T1U4 | 2.3V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B24-M5T1U4 | 2.4V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B25-A4T2U4 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B25-M5T1U4 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B28-A4T2U4 | 2.8V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B28-M5T1U4 | 2.8V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B30-A4T2U4 | 3.0V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B30-M5T1U4 | 3.0V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318B33-A4T2U4 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318B33-M5T1U4 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C12-A4T2U4 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C12-M5T1U4 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C18-A4T2U4 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C18-M5T1U4 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C22-A4T2U4 | 2.2V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C22-M5T1U4 | 2.2V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C23-A4T2U4 | 2.3V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C23-M5T1U4 | 2.3V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C25-A4T2U4 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C25-M5T1U4 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C28-A4T2U4 | 2.8V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C28-M5T1U4 | 2.8V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C30-A4T2U4 | 3.0V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C30-M5T1U4 | 3.0V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318C33-A4T2U4 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318C33-M5T1U4 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D12-A4T2U4 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D12-M5T1U4 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D18-A4T2U4 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D18-M5T1U4 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D22-A4T2U4 | 2.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D22-M5T1U4 | 2.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D23-A4T2U4 | 2.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D23-M5T1U4 | 2.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D25-A4T2U4 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D25-M5T1U4 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D28-A4T2U4 | 2.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D28-M5T1U4 | 2.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D30-A4T2U4 | 3.0V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D30-M5T1U4 | 3.0V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1318D33-A4T2U4 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1318D33-M5T1U4 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
