S-1313系列是使用CMOS技术开发的超低消耗电流，低压差的正电压型电压稳压器。
S-1313系列：ABLIC 5.5 V输入、200 mA的电压稳压器
S-1313系列是使用CMOS技术开发的超低消耗电流，低压差的正电压型电压稳压器。
消耗电流仅为0.9 μA (典型值)，且可使用大于或等于0.1 μF的陶瓷电容器作为输入、输出电容器。
其输出电压精度高达±1.0%。
特点
• 输出电压 : 在1.0 V ~ 3.5 V的范围内，可以0.05 V为进阶单位来选择
• 输入电压 : 1.5 V ~ 5.5 V
• 输出电压精度 : ±1.0% (1.0 V ~ 1.45 V输出产品 : ±15 mV)
• 输入输出电压差 : 170 mV (典型值) (2.8 V输出产品, IOUT = 100 mA)
• 消耗电流 : 工作时 : 0.9 μA (典型值), 1.35 μA (最大值)
休眠时 : 0.01 μA (典型值), 0.1 μA (最大值)
• 输出电流 : 可输出200 mA (VOUT(S)≥1.4 V, VIN≥VOUT(S) + 1.0 V)*1
• 输入、输出电容器 : 能够使用大于或等于0.1 μF的陶瓷电容器
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置热敏关闭电路 : 防止因发热引起的对产品的破坏
• 内置ON / OFF控制电路 : 能够延长电池的使用寿命
可选择放电分路功能的 "有" / "无"
可选择下拉功能的 "有" / "无"
• 工作温度范围 : Ta = −40°C ~ +85°C
• 无铅 (Sn 100%)、无卤素
*1. 请注意在输出大电流时的封装容许功耗。
用途
• 携带通信设备、数码相机、数码音响设备的稳压电源
• 以电池供电的设备的稳压电源
• 家电产品的稳压电源
封装

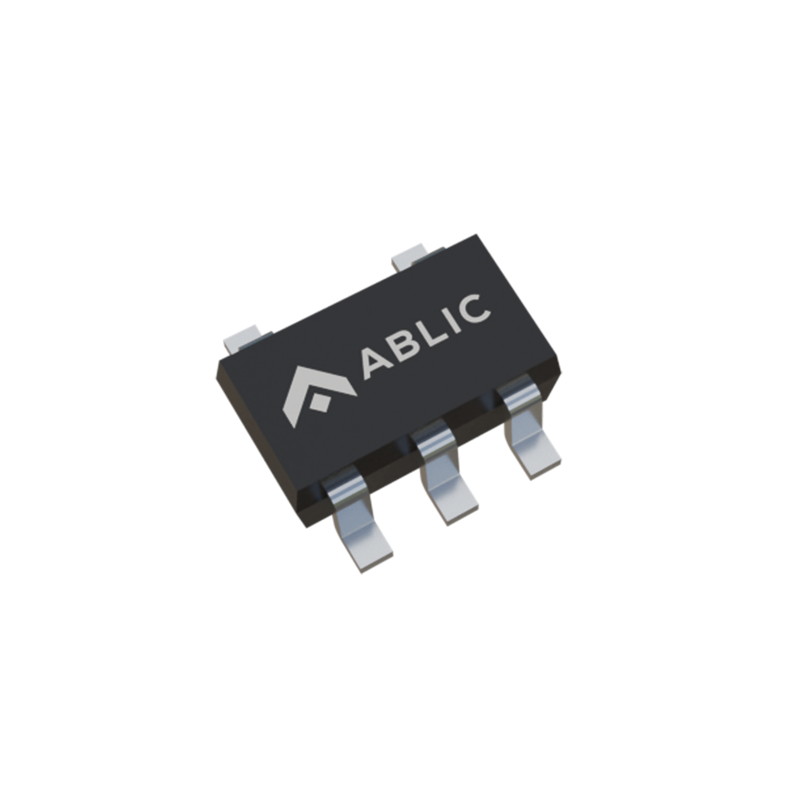

• SOT-23-5

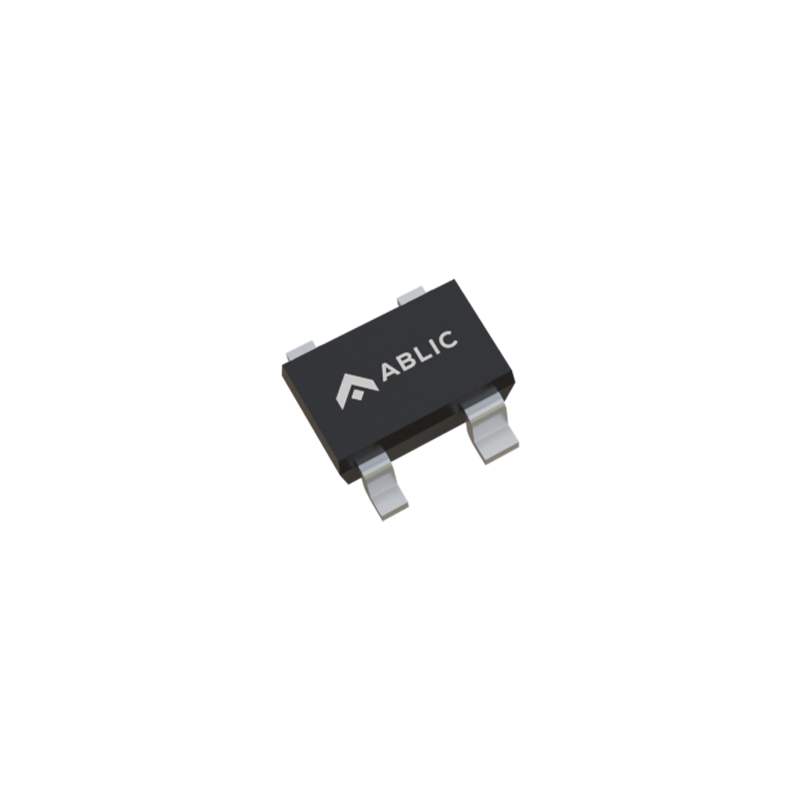

• SC-82AB

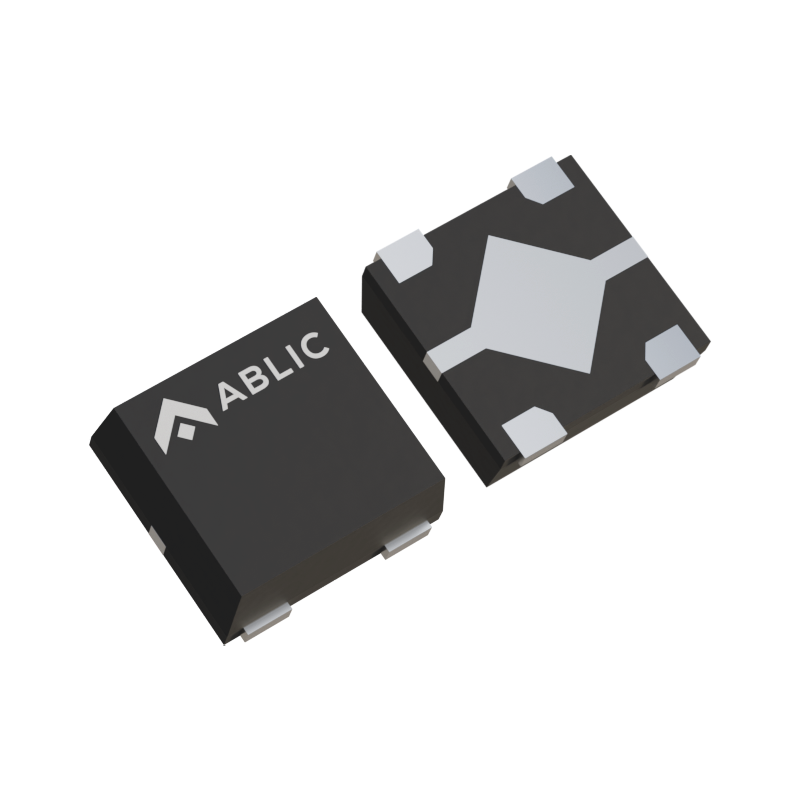

• HSNT-4 (1010)

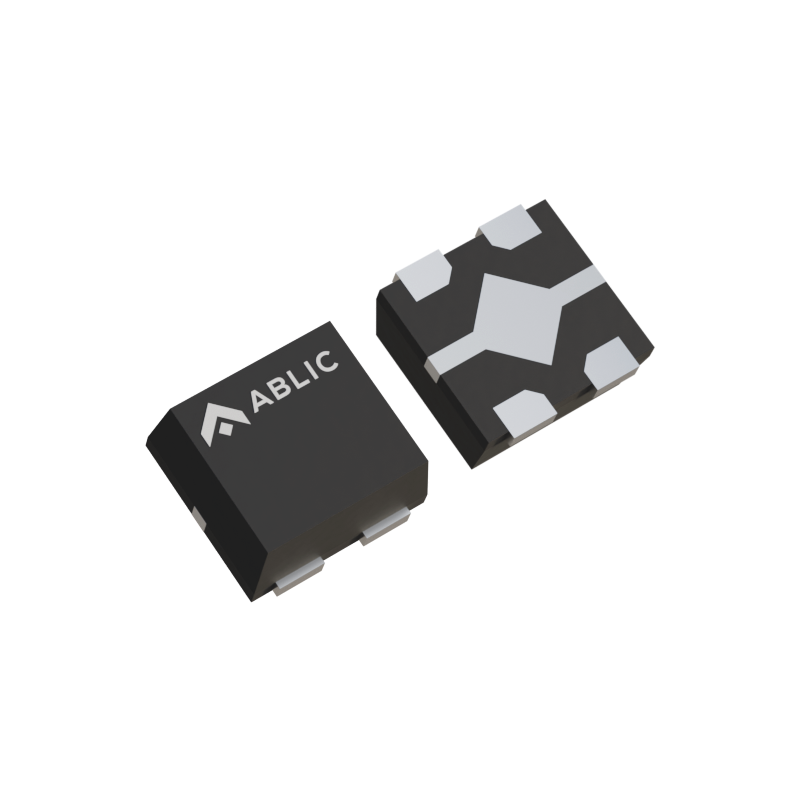

• HSNT-4 (0808)
Part List
Part number | Output voltage | ON/OFF logic | Discharge Shunt Function | Constant Current Source Pull-down | Operating temperature | Package | MOQ (pcs/reel) |
S-1313A12-A4T1U3 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313A12-A4T2U3 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313A12-M5T1U3 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313A12-N4T1U3 | 1.2V | Active"H" | Available | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313A18-A4T1U3 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313A18-A4T2U3 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313A18-M5T1U3 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313A18-N4T1U3 | 1.8V | Active"H" | Available | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313A25-A4T1U3 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313A25-A4T2U3 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313A25-M5T1U3 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313A25-N4T1U3 | 2.5V | Active"H" | Available | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313A33-A4T1U3 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313A33-A4T2U3 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313A33-M5T1U3 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313A33-N4T1U3 | 3.3V | Active"H" | Available | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313B12-A4T1U3 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313B12-A4T2U3 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313B12-M5T1U3 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313B12-N4T1U3 | 1.2V | Active"H" | Available | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313B18-A4T1U3 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313B18-A4T2U3 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313B18-M5T1U3 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313B18-N4T1U3 | 1.8V | Active"H" | Available | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313B25-A4T1U3 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313B25-A4T2U3 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313B25-M5T1U3 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313B25-N4T1U3 | 2.5V | Active"H" | Available | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313B33-A4T1U3 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313B33-A4T2U3 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313B33-M5T1U3 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313B33-N4T1U3 | 3.3V | Active"H" | Available | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313C12-A4T1U3 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313C12-A4T2U3 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313C12-M5T1U3 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313C12-N4T1U3 | 1.2V | Active"H" | Unavailable | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313C18-A4T1U3 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313C18-A4T2U3 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313C18-M5T1U3 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313C18-N4T1U3 | 1.8V | Active"H" | Unavailable | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313C25-A4T1U3 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313C25-A4T2U3 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313C25-M5T1U3 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313C25-N4T1U3 | 2.5V | Active"H" | Unavailable | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313C33-A4T1U3 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313C33-A4T2U3 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313C33-M5T1U3 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313C33-N4T1U3 | 3.3V | Active"H" | Unavailable | Available | -40℃-85℃ | SC-82AB | 3000 |
S-1313D12-A4T1U3 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313D12-A4T2U3 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313D12-M5T1U3 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313D12-N4T1U3 | 1.2V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313D18-A4T1U3 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313D18-A4T2U3 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313D18-M5T1U3 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313D18-N4T1U3 | 1.8V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313D25-A4T1U3 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313D25-A4T2U3 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313D25-M5T1U3 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313D25-N4T1U3 | 2.5V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
S-1313D33-A4T1U3 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(0808) | 10000 |
S-1313D33-A4T2U3 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | HSNT-4(1010) | 10000 |
S-1313D33-M5T1U3 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SOT-23-5 | 3000 |
S-1313D33-N4T1U3 | 3.3V | Active"H" | Unavailable | Unavailable | -40℃-85℃ | SC-82AB | 3000 |
