S-1222B/D系列是采用高耐压CMOS工艺技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器，内置了ON / OFF控制电路。
S-1222B/D系列：ABLIC 28 V输入、200 mA的电压稳压器
S-1222B/D系列是采用高耐压CMOS工艺技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器，内置了ON / OFF控制电路。
由于最大工作电压可高达28 V，而消耗电流却仅为6.5 μA (典型值)，因此可在低消耗电流下工作。并且，由于内置了低通态电阻输出晶体管，所以输入输出电压差非常小，能够获得较大的输出电流。
为了限制输出晶体管的过载电流，内置了过载电流保护电路；为了限制发热，内置了热敏关闭电路。
特点
• 输出电压 : 在2.3 V ~ 12.0 V的范围内，以0.1 V为进阶单位来选择
• 输入电压 : 3.0 V ~ 28 V
• 输出电压精度 : ±1.0% (Ta = +25°C)
• 消耗电流 : 工作时 : 6.5 μA (典型值) (Ta = +25°C)
休眠时 : 0.1 μA (典型值) (Ta = +25°C)
• 输出电流 : 可输出200 mA (VIN≥VOUT(S) + 2.0 V时)*1
• 输入电容器 : 可以使用陶瓷电容器 (大于或等于1.0 μF)
• 输出电容器 : 可以使用陶瓷电容器 (1.0 μF ~ 100 μF)
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置热敏关闭电路 : 检测温度165°C (典型值)
• 内置ON / OFF控制电路 : 能够延长电池的使用寿命
有放电分路功能
• 工作温度范围：Ta = −40°C ~ +85°C
• 无铅、Sn 100%、无卤素
*1. 请注意在输出大电流时不要超过IC的容许功耗。
用途
• 产业机器的稳压电源
• 家电产品的稳压电源
• 智能卡的稳压电源
封装

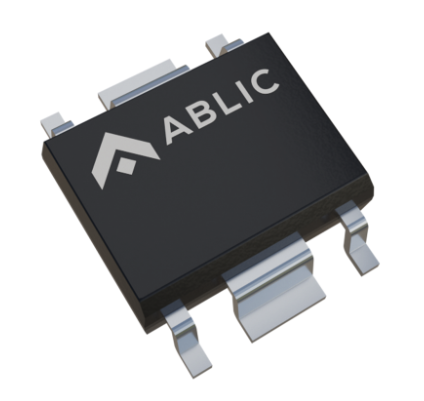

• TO-252-5S(A)

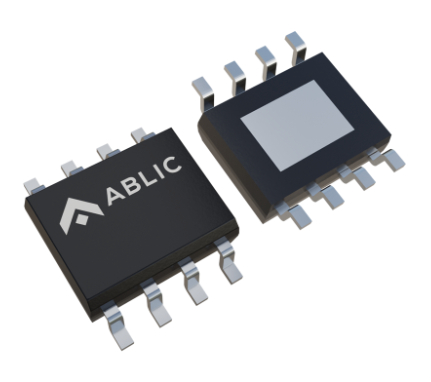

• HSOP-8A

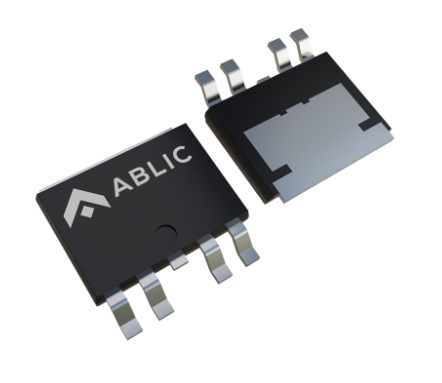

• HSOP-6

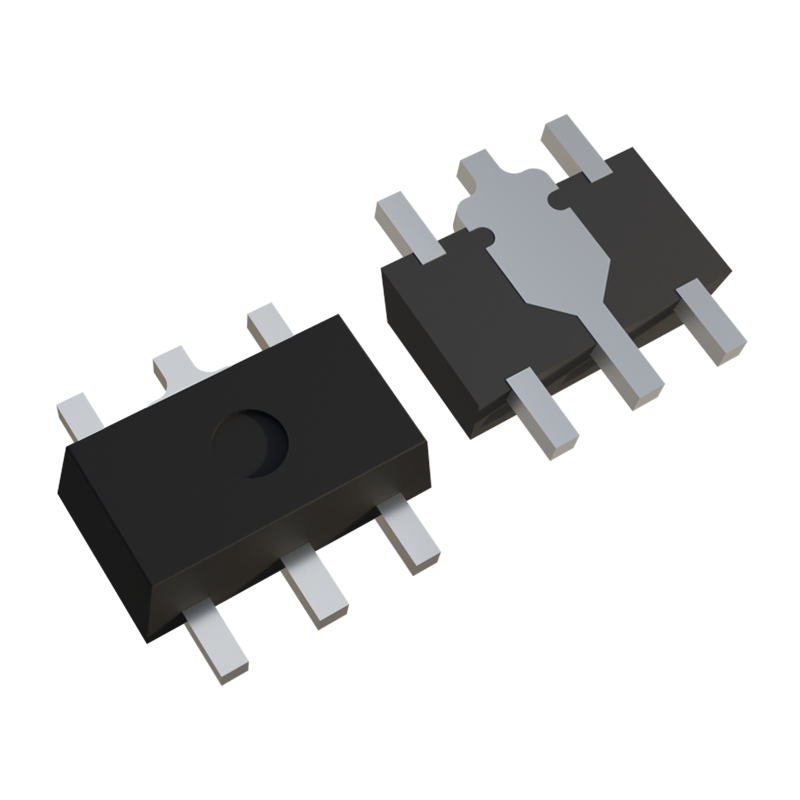

• SOT-89-5

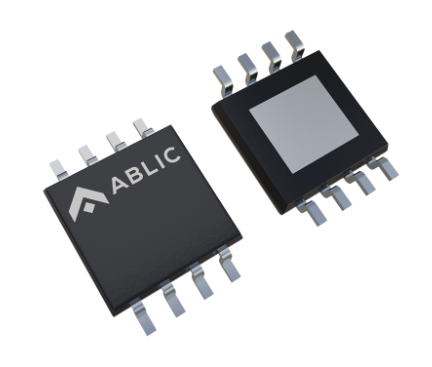

• HTMSOP-8

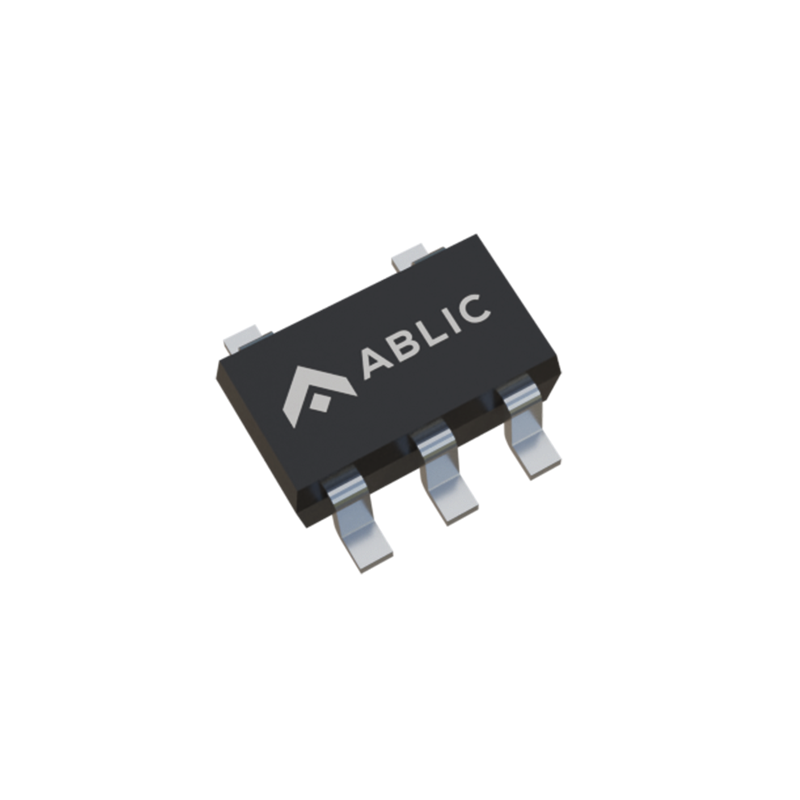

• SOT-23-5
• DFN-6(1518)A
Part List
Part number | Output voltage | ON/OFF logic | ON / OFF Pin Input Voltage "H" | ON / OFF Pin Input Voltage "L" | Operating temperature | Package | MOQ (pcs/reel) |
S-1222B23-A6T6S | 2.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B24-A6T6S | 2.4V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B25-A6T6S | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B25-E6T1U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222B25-E8T1U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222B25-M5T1U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222B25-S8T1U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222B25-U5T1U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222B25-V5T2U | 2.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222B30-A6T6S | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B30-E6T1U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222B30-E8T1U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222B30-M5T1U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222B30-S8T1U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222B30-U5T1U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222B30-V5T2U | 3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222B33-A6T6S | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B33-E6T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222B33-E8T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222B33-M5T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222B33-S8T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222B33-U5T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222B33-V5T2U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222B50-A6T6S | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222B50-E6T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222B50-E8T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222B50-M5T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222B50-S8T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222B50-U5T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222B50-V5T2U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222BC0-M5T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222D23-A6T6S | 2.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D24-A6T6S | 2.4V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D25-A6T6S | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D25-E6T1U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222D25-E8T1U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222D25-M5T1U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222D25-S8T1U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222D25-U5T1U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222D25-V5T2U | 2.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222D30-A6T6S | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D30-E6T1U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222D30-E8T1U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222D30-M5T1U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222D30-S8T1U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222D30-U5T1U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222D30-V5T2U | 3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222D33-A6T6S | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D33-E6T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222D33-E8T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222D33-M5T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222D33-S8T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222D33-U5T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222D33-V5T2U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
S-1222D50-A6T6S | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | DFN-6(1518)A | 5000 |
S-1222D50-E6T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-6 | 4000 |
S-1222D50-E8T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HSOP-8A | 4000 |
S-1222D50-M5T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-23-5 | 3000 |
S-1222D50-S8T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | HTMSOP-8 | 4000 |
S-1222D50-U5T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | SOT-89-5 | 1000 |
S-1222D50-V5T2U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-85℃ | TO-252-5S(A) | 4000 |
