S-1212B/D系列是采用高耐压CMOS工艺技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器，内置了ON / OFF控制电路。
S-1212B/D系列:ABLIC 工作温度105°C、 36 V输入、250 mA的电压稳压器
S-1212B/D系列
工作温度105°C、 36 V输入、250 mA的电压稳压器
S-1212B/D系列是采用高耐压CMOS工艺技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器，内置了ON / OFF控制电路。
由于最大工作电压可高达36 V，而消耗电流却仅为6.5 μA (典型值)，因此可在低消耗电流下工作。并且，由于内置了低通态电阻输出晶体管，所以输入输出电压差非常小，能够获得较大的输出电流。
为了限制输出晶体管的过载电流，内置了过载电流保护电路；为了限制发热，内置了热敏关闭电路。
特点
• 输出电压 : 在2.5 V ~ 16.0 V的范围内，以0.1 V为进阶单位来选择
• 输入电压 : 3.0 V ~ 36 V
• 输出电压精度 : ±2.0% (Ta = +25°C)
• 消耗电流 : 工作时 : 6.5 μA (典型值) (Ta = +25°C)
休眠时 : 0.1 μA (典型值) (Ta = +25°C)
• 输出电流 : 可输出250 mA (VIN≥VOUT(S) + 2.0 V时)*1
• 输入电容器 : 可以使用陶瓷电容器 (大于或等于1.0 μF)
• 输出电容器 : 可以使用陶瓷电容器 (1.0 μF ~ 100 μF)
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置热敏关闭电路 : 检测温度165°C (典型值)
• 内置ON / OFF控制电路 : 能够延长电池的使用寿命,有放电分路功能
• 工作温度范围 Ta = −40°C ~ +105°C
• 无铅 (Sn 100%)、无卤素
*1. 请注意在输出大电流时不要超过IC的容许功耗。
用途
• 产业机器的稳压电源
• 家电产品的稳压电源
封装

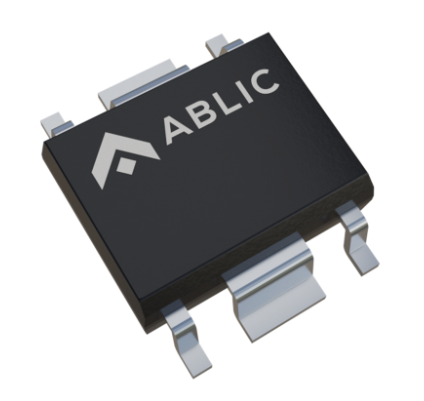

• TO-252-5S(A)

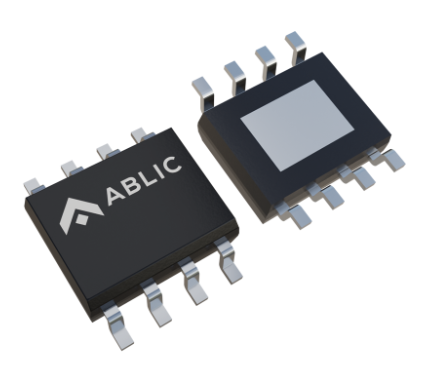

• HSOP-8A

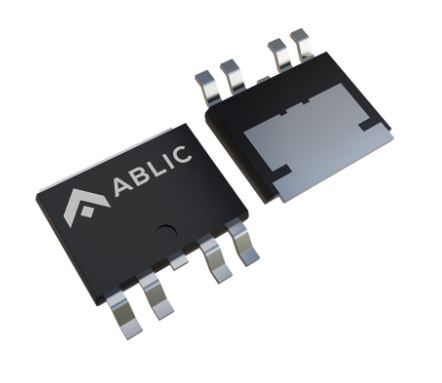

• HSOP-6

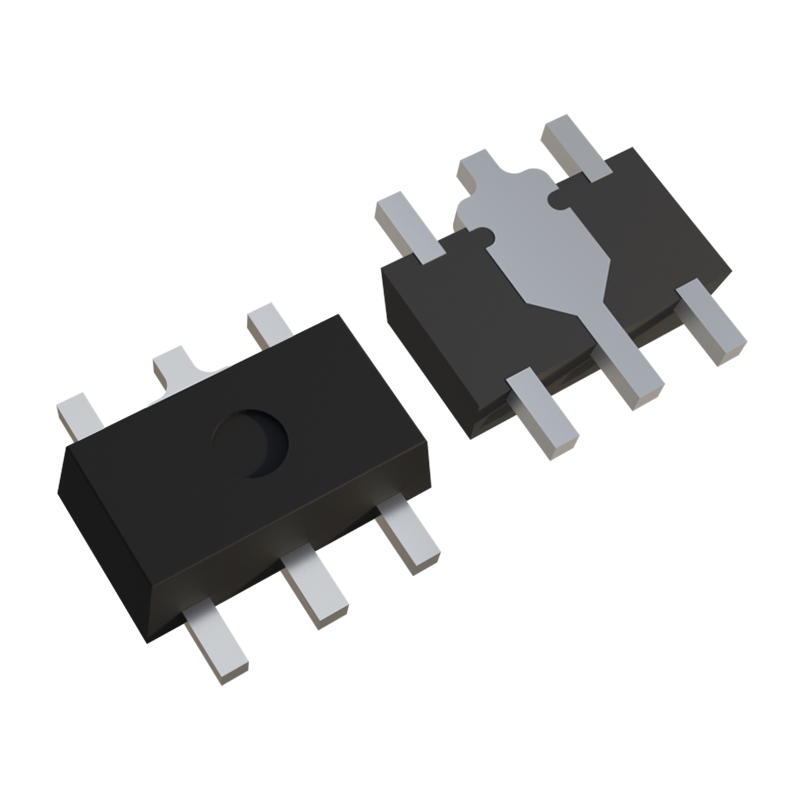

• SOT-89-5

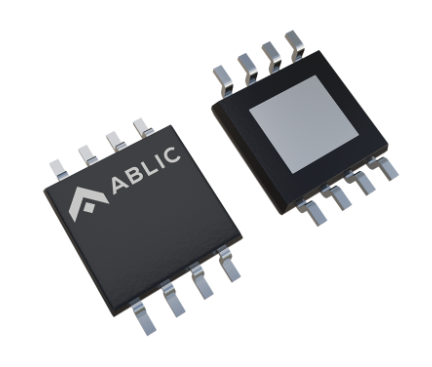

• HTMSOP-8

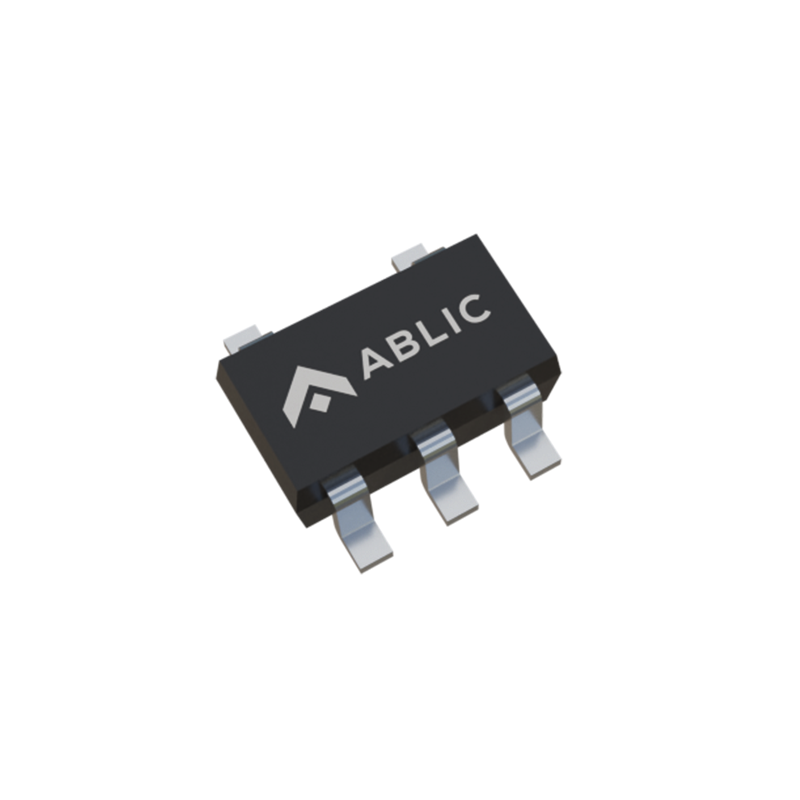

• SOT-23-5
Part List
Output voltage | ON/OFF logic | ON / OFF Pin Input Voltage "H" | ON / OFF Pin Input Voltage "L" | Operating temperature | Package | MOQ (pcs/reel) | |
S-1212B33-E6T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212B33-E8T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212B33-M5T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212B33-S8T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212B33-U5T1U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212B33-V5T2U | 3.3V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212B50-E6T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212B50-E8T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212B50-M5T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212B50-S8T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212B50-U5T1U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212B50-V5T2U | 5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212B60-M5T1U | 6V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 4000 |
S-1212B65-S8T1U | 6.5V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212B80-E6T1U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-6 | 3000 |
S-1212B80-E8T1U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212B80-M5T1U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 1000 |
S-1212B80-S8T1U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212B80-U5T1U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-89-5 | 4000 |
S-1212B80-V5T2U | 8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212BA0-M5T1U | 10V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212BC0-E6T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212BC0-E8T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-8A | 1000 |
S-1212BC0-M5T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-23-5 | 4000 |
S-1212BC0-S8T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212BC0-U5T1U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-89-5 | 4000 |
S-1212BC0-V5T2U | 12V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | TO-252-5S(A) | 3000 |
S-1212BF8-V5T2U | 15.8V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212BG0-E6T1U | 16V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | HSOP-6 | 1000 |
S-1212BG0-U5T1U | 16V | Active"H" | 1.5Vmin | 0.25Vmax | -40℃-105℃ | SOT-89-5 | 4000 |
S-1212D33-E6T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212D33-E8T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212D33-M5T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212D33-S8T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212D33-U5T1U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212D33-V5T2U | 3.3V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212D50-E6T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212D50-E8T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212D50-M5T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212D50-S8T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212D50-U5T1U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212D50-V5T2U | 5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212D60-M5T1U | 6V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212D80-E6T1U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212D80-E8T1U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212D80-M5T1U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212D80-S8T1U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212D80-U5T1U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212D80-V5T2U | 8V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
S-1212D85-M5T1U | 8.5V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212DC0-E6T1U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-6 | 4000 |
S-1212DC0-E8T1U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HSOP-8A | 4000 |
S-1212DC0-M5T1U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-23-5 | 3000 |
S-1212DC0-S8T1U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | HTMSOP-8 | 4000 |
S-1212DC0-U5T1U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | SOT-89-5 | 1000 |
S-1212DC0-V5T2U | 12V | Active"H" | 2.0Vmin | 0.8Vmax | -40℃-105℃ | TO-252-5S(A) | 4000 |
