S-1200 系列是使用 CMOS 技术开发的低压差，高精度输出电压的正电压型电压稳压器。
S-1200系列:ABLIC高纹波抑制率、低压差型、低输入输出容量CMOS电压稳压器
S-1200 系列是使用 CMOS 技术开发的低压差，高精度输出电压的正电压型电压稳压器。
可使用 0.1 μF 的小型陶瓷电容器，也可在 18 μA (典型值) 的低消耗电流下工作。
由于内置有低通态电阻晶体管，因而压差低，能够获得较大的输出电流。为了使输出电流不超过输出晶体管的电流容量，内置了过载电流保护电路。
与以往 CMOS 技术电压稳压器相比，因能使用小型的陶瓷电容器。
特点
• 输出电压 : 在1.5 V ~ 5.5 V的范围内，可以0.1 V为进阶单位来选择
• 输入电压 : 2.0 V ~ 10.0 V
• 输出电压精度 : ±1.0 %
• 输入输出电压差 : 140 mV (典型值) (3.0 V输出产品、IOUT=100 mA)
• 消耗电流 : 工作时: 18 μA (典型值)、40 μA (***值)
休眠时: 0.01 μA (典型值)、1.0 μA (***值)
• 输出电流 : 可输出150 mA (VIN≥VOUT(S) +1.0 V)*1
• 输入、输出电容器 : 能够使用大于或等于0.1 μF的陶瓷电容器
• 纹波抑制率 : 70 dB (典型值) (f=1.0 kHz、1.5 V ≤VOUT ≤3.0 V)
65 dB (典型值) (f=1.0 kHz、3.1 V ≤VOUT ≤5.5 V)
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置ON/OFF控制电路 : 能够延长电池的使用寿命
• 工作温度范围 : Ta=−40°C ~ +85°C
• 无铅、Sn 100%、无卤素*2
*1. 请注意在输出大电流时的封装容许功耗。
*2. 详情请参阅“ 产品型号的构成”。
用途
• 使用电池供电的设备的稳压电源
• 通信设备的稳压电源
• 家电产品的稳压电源
• 携带电话用的稳压电源
封装

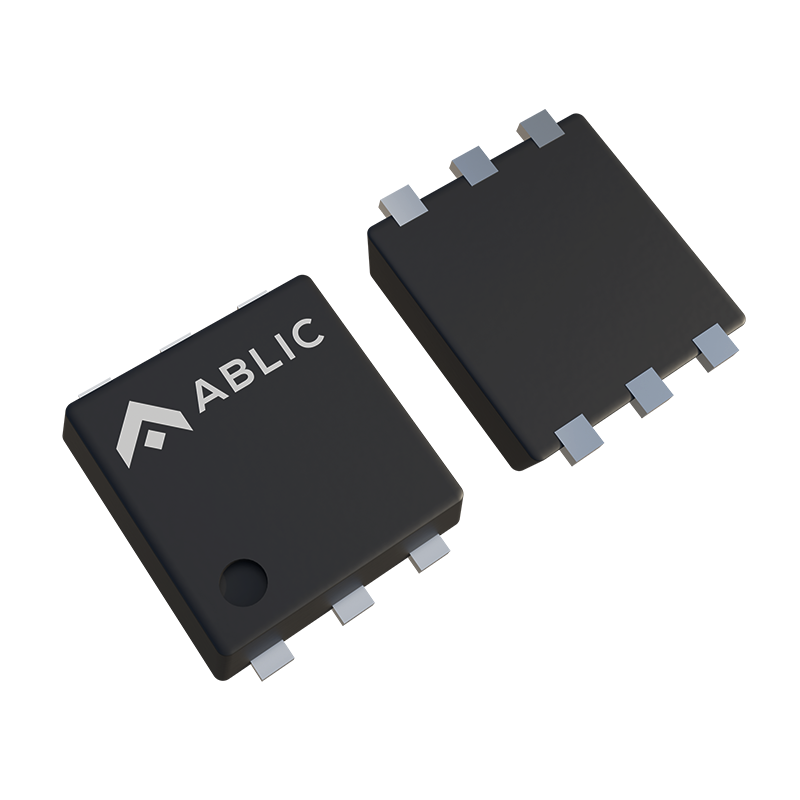

• SNT-6A(H)

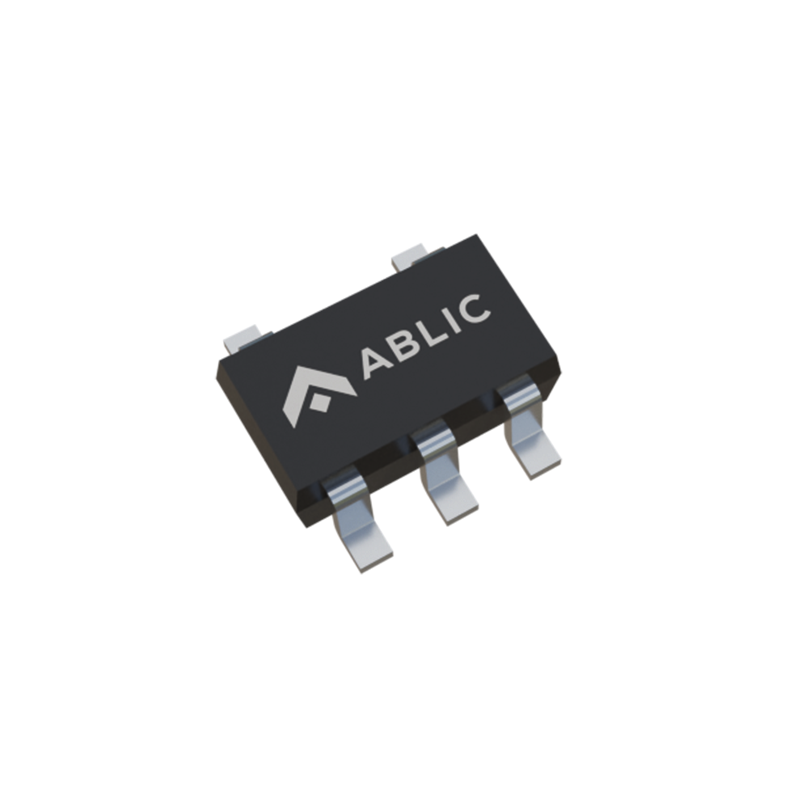

• SOT-23-5
Part List
Part number | Output voltage | ON/OFF logic | Operating temperature | Package | MOQ (pcs/reel) |
S-1200B15-I6T2U | 1.5V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B15-M5T1U | 1.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B16-I6T2U | 1.6V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B16-M5T1U | 1.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B17-I6T2U | 1.7V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B17-M5T1U | 1.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B18-I6T2U | 1.8V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B18-M5T1U | 1.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B19-I6T2U | 1.9V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B19-M5T1U | 1.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B20-I6T2U | 2.0V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B20-M5T1U | 2.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B21-I6T2U | 2.1V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B21-M5T1U | 2.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B22-I6T2U | 2.2V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B22-M5T1U | 2.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B23-I6T2U | 2.3V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B23-M5T1U | 2.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B24-I6T2U | 2.4V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B24-M5T1U | 2.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B25-I6T2U | 2.5V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B25-M5T1U | 2.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B26-I6T2U | 2.6V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B26-M5T1U | 2.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B27-I6T2U | 2.7V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B27-M5T1U | 2.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B28-I6T2U | 2.8V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B28-M5T1U | 2.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B29-I6T2U | 2.9V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B29-M5T1U | 2.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B30-I6T2U | 3.0V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B30-M5T1U | 3.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B31-I6T2U | 3.1V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B31-M5T1U | 3.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B32-I6T2U | 3.2V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B32-M5T1U | 3.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B33-I6T2U | 3.3V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B33-M5T1U | 3.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B34-I6T2U | 3.4V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B34-M5T1U | 3.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B35-I6T2U | 3.5V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B35-M5T1U | 3.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B36-I6T2U | 3.6V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B36-M5T1U | 3.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B37-I6T2U | 3.7V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B37-M5T1U | 3.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B38-I6T2U | 3.8V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B38-M5T1U | 3.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B39-I6T2U | 3.9V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B39-M5T1U | 3.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B40-I6T2U | 4.0V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B40-M5T1U | 4.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B41-I6T2U | 4.1V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B41-M5T1U | 4.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B42-I6T2U | 4.2V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B42-M5T1U | 4.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B43-I6T2U | 4.3V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B43-M5T1U | 4.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B44-I6T2U | 4.4V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B44-M5T1U | 4.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B45-I6T2U | 4.5V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B45-M5T1U | 4.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B46-I6T2U | 4.6V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B46-M5T1U | 4.6V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B47-I6T2U | 4.7V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B47-M5T1U | 4.7V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B48-I6T2U | 4.8V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B48-M5T1U | 4.8V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B49-I6T2U | 4.9V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B49-M5T1U | 4.9V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B50-I6T2U | 5.0V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B50-M5T1U | 5.0V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B51-I6T2U | 5.1V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B51-M5T1U | 5.1V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B52-I6T2U | 5.2V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B52-M5T1U | 5.2V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B53-I6T2U | 5.3V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B53-M5T1U | 5.3V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B54-I6T2U | 5.4V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B54-M5T1U | 5.4V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
S-1200B55-I6T2U | 5.5V | Active"H" | -40℃-85℃ | SNT-6A(H) | 5000 |
S-1200B55-M5T1U | 5.5V | Active"H" | -40℃-85℃ | SOT-23-5 | 3000 |
