S-1142C/D系列是采用高耐压CMOS技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器。
S-1142C/D系列:ABLIC 高耐压 低消耗电流 低压差型 CMOS电压稳压器
S-1142C/D系列是采用高耐压CMOS技术开发的高耐压、低消耗电流、高精度输出电压的正电压电压稳压器。
由于最大工作电压可高达50 V，而消耗电流却仅为4.0 μA (典型值)，因此可在低消耗电流条件下工作。并且，由于内置了低通态电阻晶体管，所以输入输出电压差非常小，能够获得较大的输出电流。此外，还内置了ON / OFF控制电路。
为了使负载电流不超过输出晶体管的电流容量，内置了过载电流保护电路；为了防止因发热引起的对产品的破坏，内置了热敏关闭电路。
因采用高放热的HSOP-6封装，故可高密度安装。
特点
• 输出电压 : 在2.0 V ~ 15.0 V的范围内，可以0.1 V为进阶单位来选择
• 输入电压 : 3.0 V ~ 50 V
• 输出电压精度 : ±1.0% (Tj = +25°C)
±3.0% (Tj = −40°C ~ +105°C)
• 消耗电流 : 工作时 : 4.0 μA (典型值)、9.0 μA (最大值) (Ta = −40°C ~ +85°C)
休眠时 : 0.1 μA (典型值)、1.0 μA (最大值) (Ta = −40°C ~ +85°C)
• 输出电流 : 可输出200 mA (VIN≥VOUT(S) + 2.0 V)*1
• 输入、输出电容器: 能够使用大于或等于0.1 μF的陶瓷电容器
• 内置过载电流保护电路 : 限制输出晶体管的过载电流
• 内置热敏关闭电路 : 防止因发热引起对产品的破坏
• 内置ON / OFF控制电路 : 能够延长电池的使用寿命
• 工作温度范围 : Ta = −40°C ~ +85°C
• 无铅 (Sn 100%)、无卤素
*1. 请注意在输出大电流时的封装容许功耗。
用途
• 家电产品的稳压电源

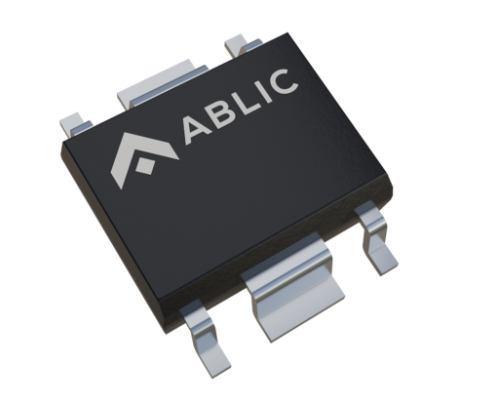

封装
• HSOP-6
Part List
Part number | Output voltage | ON/OFF logic | Operating temperature [℃] | Package | MOQ (pcs/Reel) |
S-1142C20I-E6T1U | 2.0V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C25I-E6T1U | 2.5V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C27I-E6T1U | 2.7V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C28I-E6T1U | 2.8V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C2JI-E6T1U | 2.95V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C30I-E6T1U | 3.0V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C32I-E6T1U | 3.2V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C33I-E6T1U | 3.3V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C35I-E6T1U | 3.5V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C37I-E6T1U | 3.7V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C40I-E6T1U | 4.0V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C50I-E6T1U | 5.0V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C66I-E6T1U | 6.6V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142C80I-E6T1U | 8.0V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142CC0I-E6T1U | 12V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142CC5I-E6T1U | 12.5V | Active"L" | -40-85 | HSOP-6 | 2000 |
S-1142D20I-E6T1U | 2.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D25I-E6T1U | 2.5V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D27I-E6T1U | 2.7V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D28I-E6T1U | 2.8V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D2JI-E6T1U | 2.95V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D30I-E6T1U | 3.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D32I-E6T1U | 3.2V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D33I-E6T1U | 3.3V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D34I-E6T1U | 3.4V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D35I-E6T1U | 3.5V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D37I-E6T1U | 3.7V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D39I-E6T1U | 4.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D40I-E6T1U | 4.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D42I-E6T1U | 4.2V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D48I-E6T1U | 4.8V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D50I-E6T1U | 5.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D51I-E6T1U | 5.1V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D52I-E6T1U | 5.2V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D53I-E6T1U | 5.3V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D57I-E6T1U | 5.7V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D60I-E6T1U | 6.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D62I-E6T1U | 6.2V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D66I-E6T1U | 6.6V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D80I-E6T1U | 8.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D85I-E6T1U | 8.5V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D86I-E6T1U | 8.6V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D90I-E6T1U | 9.0V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D96I-E6T1U | 9.6V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142D98I-E6T1U | 9.8V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142DB5I-E6T1U | 11.5V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142DC5I-E6T1U | 12.5V | Active"H" | -40-85 | HSOP-6 | 2000 |
S-1142DF0I-E6T1U | 15V | Active"H" | -40-85 | HSOP-6 | 2000 |
