S-1133 系列是采用 CMOS 技术开发的低压差、高精度输出电压、低消耗电流(输出电流为 300 mA)的正电压电压稳压器。
S-1133系列：ABLIC 高纹波抑制率、低压差型、中输出电流CMOS电压稳压器
S-1133 系列是采用 CMOS 技术开发的低压差、高精度输出电压、低消耗电流(输出电流为 300 mA)的正电压电压稳压器。 可使用 1 mF 的小型陶瓷电容器*1，且可在消耗电流极其微小(消耗电流为 60 mA (典型值))的条件下工作。为了使输出电流不超 过输出晶体管的电流容量，内置了过电流保护电路，而且为了防止因发热而引起的对产品的破坏，还内置了热敏关闭电路。 除了可在 IC 内部设定输出电压型产品以外，还在产品系列中增加了可通过外部电阻设定输出电压型(S-1133x00 系列)的产品。 因采用 SOT-89-5 封装、SNT-8A 超小型封装，故可高密度安装。同时，由于可与低消耗电流的特性相组合，因此最适用于携 带设备。
*1. 输出电压值在 1.7 V 以下的产品，可使用 2.2 mF 以上的陶瓷电容器。
特点
·输出电压 (内部设定产品) : 在1.2 V ~ 6.0 V的范围内，可以0.1 V为进阶单位来选择
·输出电压 (外部设定产品) : 在1.8 V~ 8.2 V的范围内可任意选择 (S-1133B00 / S-1133A00)
·输入电压 : 2.0 V ~ 10 V
·输出电压精度 : ±1.0% (1.2 V ~ 1.4 V输出产品 : ±15 mV)
·输入输出电压差 : 130 mV (典型值) (3.0 V输出产品、IOUT = 100 mA)
·消耗电流 : 工作时 : 60 mA (典型值)、90 mA (最大值)
休眠时 : 0.1 mA (典型值)、1.0 mA (最大值)
·输出电流 : 可输出300 mA (VIN³VOUT(S) + 1.0 V)*1
·输入、输出电容器 : 能够使用大于或等于1.0 mF的陶瓷电容器 (输出电压值在1.7 V以下的产品，可使用2.2 mF以上的陶瓷电容器)
·纹波抑制率 : 70 dB (典型值) (1.2 V输出产品，f = 1.0 kHz)
·内置过载电流保护电路 : 限制输出晶体管的过载电流
·内置热敏关闭电路 : 防止因发热引起对产品的破坏
·内置ON / OFF控制电路 : 能够延长电池的使用寿命
·工作温度范围 : Ta = -40°C ~ +85°C
·无铅、Sn 100%、无卤素*2
*1. 请注意在输出大电流时的封装容许功耗。
*2. 详情请参阅“n 产品型号的构成”。
用途
·使用电池设备的稳压电源
·通信设备的稳压电源
·家用电器产品的稳压电源
封装

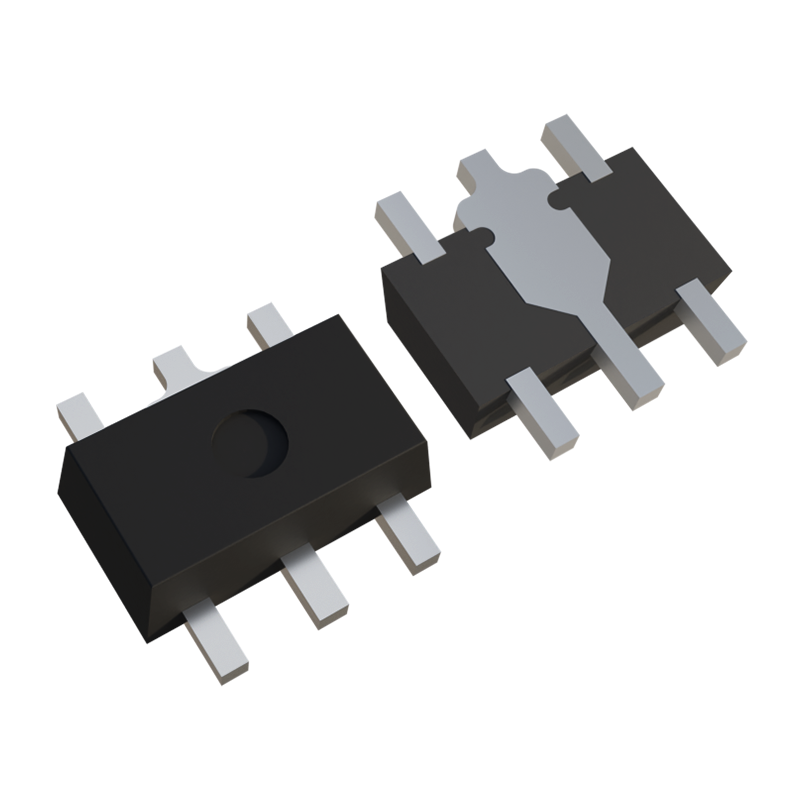

·SOT-89-5

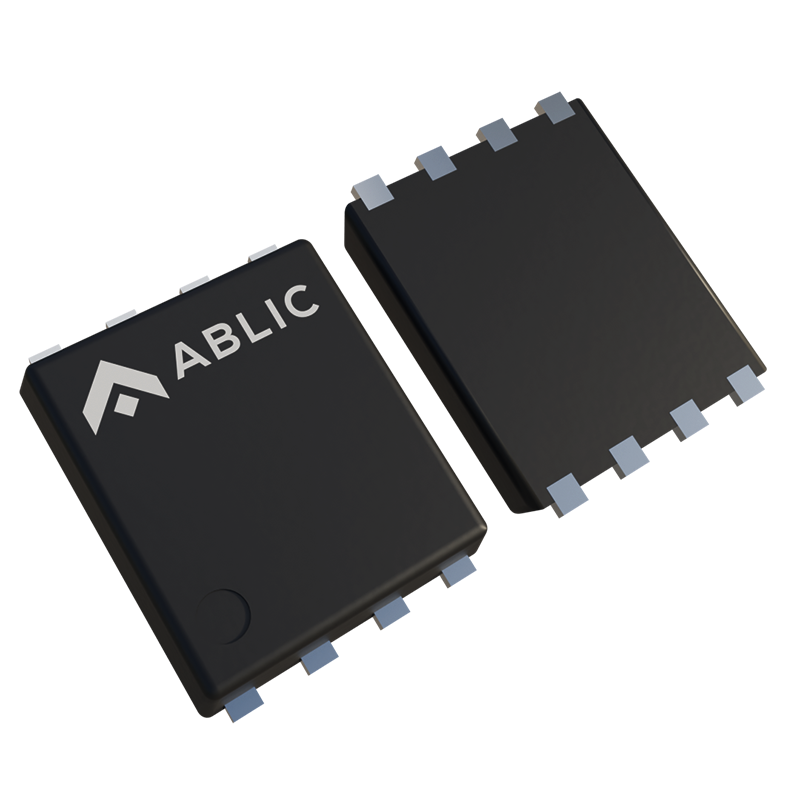

·SNT-8A
Part List
Part number | Output voltage | ON/OFF logic | Operating temperature [℃] | Package | MOQ (pcs/Reel) |
S-1133A50-U5T1U | 5.0V | Active"L" | -40-85 | SOT-89-5 | 1000 |
S-1133B00-I8T1U | Externally set | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B00-U5T1U | Externally set | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B12-I8T1U | 1.2V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B12-U5T1U | 1.2V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B13-I8T1U | 1.3V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B13-U5T1U | 1.3V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B14-I8T1U | 1.4V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B14-U5T1U | 1.4V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B15-I8T1U | 1.5V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B15-U5T1U | 1.5V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B16-I8T1U | 1.6V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B16-U5T1U | 1.6V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B17-I8T1U | 1.7V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B17-U5T1U | 1.7V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B18-I8T1U | 1.8V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B18-U5T1U | 1.8V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B19-I8T1U | 1.9V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B19-U5T1U | 1.9V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B20-I8T1U | 2.0V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B20-U5T1U | 2.0V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B21-I8T1U | 2.1V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B21-U5T1U | 2.1V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B22-I8T1U | 2.2V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B22-U5T1U | 2.2V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B23-I8T1U | 2.3V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B23-U5T1U | 2.3V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B24-I8T1U | 2.4V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B24-U5T1U | 2.4V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B25-I8T1U | 2.5V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B25-U5T1U | 2.5V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B26-I8T1U | 2.6V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B26-U5T1U | 2.6V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B27-I8T1U | 2.7V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B27-U5T1U | 2.7V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B28-I8T1U | 2.8V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B28-U5T1U | 2.8V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B29-I8T1U | 2.9V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B29-U5T1U | 2.9V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B30-I8T1U | 3.0V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B30-U5T1U | 3.0V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B31-I8T1U | 3.1V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B31-U5T1U | 3.1V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B32-I8T1U | 3.2V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B32-U5T1U | 3.2V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B33-I8T1U | 3.3V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B33-U5T1U | 3.3V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B34-I8T1U | 3.4V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B34-U5T1U | 3.4V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B35-I8T1U | 3.5V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B35-U5T1U | 3.5V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B36-I8T1U | 3.6V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B36-U5T1U | 3.6V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B37-I8T1U | 3.7V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B37-U5T1U | 3.7V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B38-I8T1U | 3.8V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B38-U5T1U | 3.8V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B39-I8T1U | 3.9V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B39-U5T1U | 3.9V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B40-I8T1U | 4.0V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B40-U5T1U | 4.0V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B41-I8T1U | 4.1V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B41-U5T1U | 4.1V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B42-I8T1U | 4.2V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B42-U5T1U | 4.2V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B43-I8T1U | 4.3V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B43-U5T1U | 4.3V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B44-I8T1U | 4.4V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B44-U5T1U | 4.4V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B45-I8T1U | 4.5V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B45-U5T1U | 4.5V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B46-I8T1U | 4.6V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B46-U5T1U | 4.6V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B47-I8T1U | 4.7V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B47-U5T1U | 4.7V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B48-I8T1U | 4.8V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B48-U5T1U | 4.8V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B49-I8T1U | 4.9V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B49-U5T1U | 4.9V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B50-I8T1U | 5.0V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B50-U5T1U | 5.0V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B51-I8T1U | 5.1V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B51-U5T1U | 5.1V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B52-I8T1U | 5.2V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B52-U5T1U | 5.2V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B53-I8T1U | 5.3V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B53-U5T1U | 5.3V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B54-I8T1U | 5.4V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B54-U5T1U | 5.4V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B55-I8T1U | 5.5V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B55-U5T1U | 5.5V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B56-I8T1U | 5.6V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B56-U5T1U | 5.6V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B57-I8T1U | 5.7V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B57-U5T1U | 5.7V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B58-I8T1U | 5.8V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B58-U5T1U | 5.8V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B59-I8T1U | 5.9V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B59-U5T1U | 5.9V | Active"H" | -40-85 | SOT-89-5 | 1000 |
S-1133B60-I8T1U | 6.0V | Active"H" | -40-85 | SNT-8A | 5000 |
S-1133B60-U5T1U | 6.0V | Active"H" | -40-85 | SOT-89-5 | 1000 |
