S-1112/1122系列：使用CMOS技术开发的电压稳压器
S-1112/1122系列：低压差、高精度输出电压、低消耗电流
S-1112/1122系列：正电压型电压稳压器
S-1112/1122系列：ABLIC高纹波抑制率 低压差型 CMOS电压稳压器
S-1112/1122系列是使用CMOS技术开发的低压差、高精度输出电压、低消耗电流的正电压型电压稳压器。 由于内置了低通态电阻晶体管，因而输入输出电压差低，并且能够获得较大的输出电流。为了使负载电流不超过 输出晶体管的电流容量，内置了过载电流保护电路。此外，还内置ON/OFF控制电路，以延长电池的使用寿命。 和以往CMOS技术电压稳压器相比，所能使用的电容器种类得以增多，也能使用小型的陶瓷电容器。因采用 SNT-6A(H) (仅限S-1112系列)、SOT-23-5小型封装，故可高密度安装。SOT-23-5由于引脚排列的不同，备有 S-1112系列和S-1122系列。
特点
· 输出电压 : 在1.5 V ~ 5.5 V的范围内，可以0.1 V为进阶单位来选择
· 输出电压精度 : ±1.0%
· 输入输出电压差 : 190 mV (典型值) (3.0 V输出产品、IOUT = 100 mA)
· 消耗电流 : 工作时 : 50 mA (典型值)、90 mA (最大值)
休眠时 : 0.1 mA (典型值)、1.0 mA (最大值)
· 输出电流 : 可输出150 mA (VIN³VOUT(S)+1.0 V)*1
· 输出电容器 : 能够使用大于或等于0.47 mF的陶瓷电容器
· 纹波抑制率 : 80 dB (典型值) (f = 1.0 kHz)
· 内置过载电流保护电路 : 限制输出晶体管的过载电流
· 内置ON/OFF控制电路 : 能够延长电池的使用寿命
· 工作温度范围 : Ta = -40°C ~ +85°C
· 无铅、Sn 100%、无卤素*2
*1. 请注意在输出大电流时的封装容许功耗。
*2. 详情请参阅“n 产品型号的构成”。
用途
· 使用电池供电设备用的稳压电源
· 通信设备用的稳压电源
· 家电产品用的稳压电源
· 携带电话用的稳压电源
封装

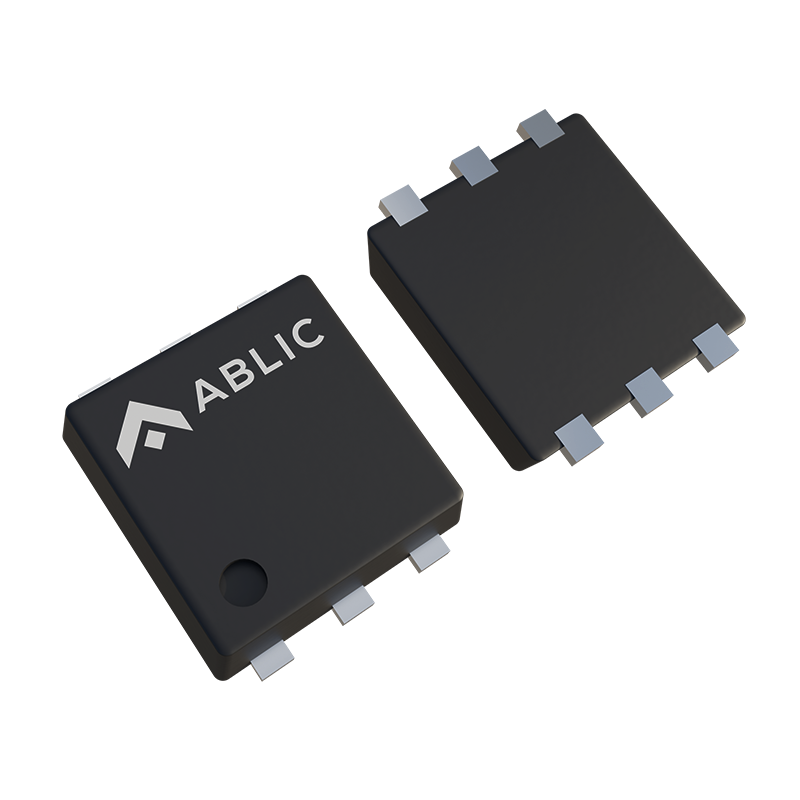

· SNT-6A(H)

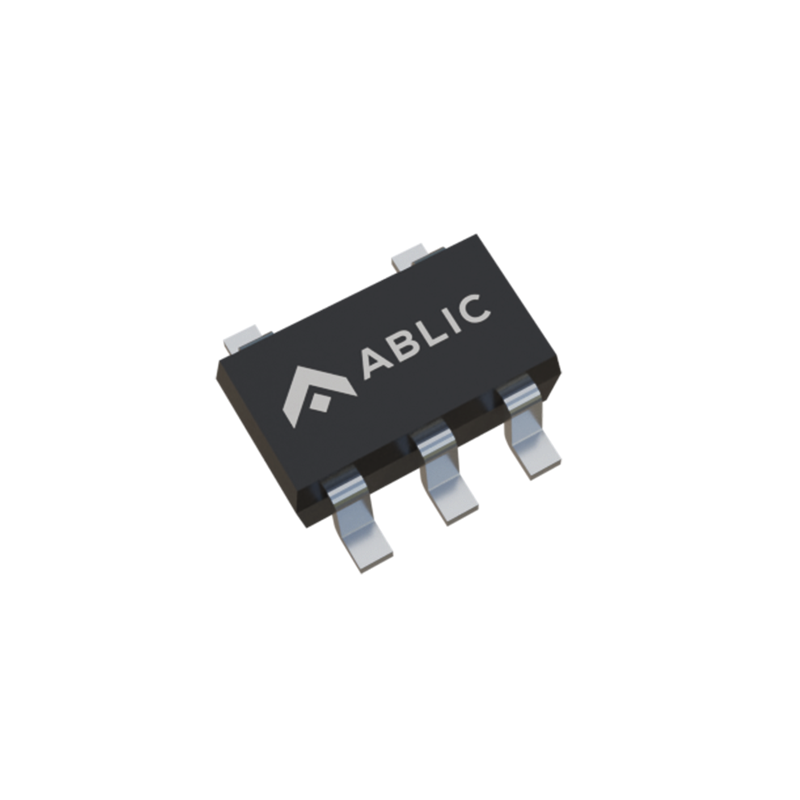

· SOT-23-5
Part List
Part number | Output voltage | ON/OFF logic | Operating temperature [℃] | Package | MOQ (pcs/Reel) |
S-1112B15MC-L6ATFU | 1.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B15PI-L6ATFU | 1.5V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B16MC-L6BTFU | 1.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B16PI-L6BTFU | 1.6V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B17MC-L6CTFU | 1.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B17PI-L6CTFU | 1.7V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B18MC-L6DTFU | 1.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B18PI-L6DTFU | 1.8V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B19MC-L6ETFU | 1.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B19PI-L6ETFU | 1.9V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B20MC-L6FTFU | 2.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B20PI-L6FTFU | 2.0V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B21MC-L6GTFU | 2.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B21PI-L6GTFU | 2.1V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B22MC-L6HTFU | 2.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B22PI-L6HTFU | 2.2V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B23MC-L6ITFU | 2.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B23PI-L6ITFU | 2.3V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B24MC-L6JTFU | 2.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B24PI-L6JTFU | 2.4V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B25MC-L6KTFU | 2.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B25PI-L6KTFU | 2.5V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B26MC-L6LTFU | 2.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B26PI-L6LTFU | 2.6V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B27MC-L6MTFU | 2.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B27PI-L6MTFU | 2.7V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B28MC-L6NTFU | 2.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B28PI-L6NTFU | 2.8V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B29MC-L6OTFU | 2.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B29PI-L6OTFU | 2.9V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B2JMC-L7PTFU | 2.85V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B2JPI-L7PTFU | 2.85V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B30MC-L6PTFU | 3.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B30PI-L6PTFU | 3.0V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B31MC-L6QTFU | 3.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B31PI-L6QTFU | 3.1V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B32MC-L6RTFU | 3.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B32PI-L6RTFU | 3.2V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B33MC-L6STFU | 3.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B33PI-L6STFU | 3.3V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B34MC-L6TTFU | 3.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B34PI-L6TTFU | 3.4V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B35MC-L6UTFU | 3.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B35PI-L6UTFU | 3.5V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B36MC-L6VTFU | 3.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B36PI-L6VTFU | 3.6V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B37MC-L6WTFU | 3.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B37PI-L6WTFU | 3.7V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B38MC-L6XTFU | 3.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B38PI-L6XTFU | 3.8V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B39MC-L6YTFU | 3.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B39PI-L6YTFU | 3.9V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B40MC-L6ZTFU | 4.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B40PI-L6ZTFU | 4.0V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B41MC-L7ATFU | 4.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B41PI-L7ATFU | 4.1V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B42MC-L7BTFU | 4.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B42PI-L7BTFU | 4.2V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B43MC-L7CTFU | 4.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B43PI-L7CTFU | 4.3V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B44MC-L7DTFU | 4.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B44PI-L7DTFU | 4.4V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B45MC-L7ETFU | 4.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B45PI-L7ETFU | 4.5V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B46MC-L7FTFU | 4.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B46PI-L7FTFU | 4.6V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B47MC-L7GTFU | 4.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B47PI-L7GTFU | 4.7V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B48MC-L7HTFU | 4.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B48PI-L7HTFU | 4.8V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B49MC-L7ITFU | 4.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B49PI-L7ITFU | 4.9V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B50MC-L7JTFU | 5.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B50PI-L7JTFU | 5.0V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B51MC-L7KTFU | 5.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B51PI-L7KTFU | 5.1V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B52MC-L7LTFU | 5.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B52PI-L7LTFU | 5.2V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B53MC-L7MTFU | 5.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B53PI-L7MTFU | 5.3V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B54MC-L7NTFU | 5.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B54PI-L7NTFU | 5.4V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1112B55MC-L7OTFU | 5.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1112B55PI-L7OTFU | 5.5V | Active"H" | -40-85 | SNT-6A(H) | 5000 |
S-1122B15MC-L8ATFU | 1.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B16MC-L8BTFU | 1.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B17MC-L8CTFU | 1.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B18MC-L8DTFU | 1.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B19MC-L8ETFU | 1.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B20MC-L8FTFU | 2.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B21MC-L8GTFU | 2.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B22MC-L8HTFU | 2.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B23MC-L8ITFU | 2.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B24MC-L8JTFU | 2.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B25MC-L8KTFU | 2.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B26MC-L8LTFU | 2.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B27MC-L8MTFU | 2.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B28MC-L8NTFU | 2.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B29MC-L8OTFU | 2.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B30MC-L8PTFU | 3.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B31MC-L8QTFU | 3.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B32MC-L8RTFU | 3.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B33MC-L8STFU | 3.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B34MC-L8TTFU | 3.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B35MC-L8UTFU | 3.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B36MC-L8VTFU | 3.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B37MC-L8WTFU | 3.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B38MC-L8XTFU | 3.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B39MC-L8YTFU | 3.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B40MC-L8ZTFU | 4.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B41MC-L9ATFU | 4.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B42MC-L9BTFU | 4.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B43MC-L9CTFU | 4.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B44MC-L9DTFU | 4.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B45MC-L9ETFU | 4.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B46MC-L9FTFU | 4.6V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B47MC-L9GTFU | 4.7V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B48MC-L9HTFU | 4.8V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B49MC-L9ITFU | 4.9V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B50MC-L9JTFU | 5.0V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B51MC-L9KTFU | 5.1V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B52MC-L9LTFU | 5.2V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B53MC-L9MTFU | 5.3V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B54MC-L9NTFU | 5.4V | Active"H" | -40-85 | SOT-23-5 | 3000 |
S-1122B55MC-L9OTFU | 5.5V | Active"H" | -40-85 | SOT-23-5 | 3000 |
