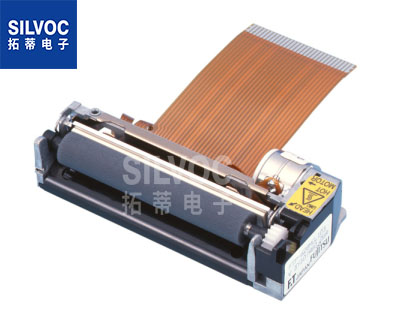

FTP-628MCL101#80、FTP-628MCL103#80：富士通2''高速热敏打印机芯、打印头

高速打印：独特的头驱动控制，打印速度可达80mm/s（640点/s）
易装纸型：独特的进纸轮结构可实现直进纸和轻松的打印头维护
无衬标签打印：特殊的进纸轮可防止无衬标签粘贴
超紧凑型：FTP-628MCL101#80和FTP-628MCL103#80
深度：33.0mm，宽度：70.2mm，高度：15.5mm
高分辨率：8点/mm打印头，打印清晰

规格参数

FTP-628MCL101#80、FTP-628MCL103#80：富士通2’’高速热敏打印机芯、打印头


完整型号：

FTP-628MCL101#80：无进纸轴检测开关
FTP-628MCL103#80：带进纸轴检测开关

Fujitsu 2” high speed (up to 80mm/s) thermal printer mechanisms

概述

超紧凑、高速FTP-628MCL101#80和FTP-628MCL103#80采用2’’纸宽（58mm）一个可拆卸的进纸轴，便于纸张

装载和维护。

特殊设计的压纸滚筒可使FTP-628MCL101#80和FTP-628MCL103#80用于无衬标签应用除了普通的收据式应用程

序，如便携式终端、POS、出票终端、银行、测试和测量以及医疗设备。

主要特点

• 高速打印

通过使用富士通(Fujitsu)独特的头驱动控制，它可以打印最高80mm/s（640点/s）

• 易装型

富士通(Fujitsu)独特的进纸轮结构可实现直进纸和轻松的打印头维护

• 无衬标签打印

特殊的进纸轮可防止无衬标签粘贴

• 超紧凑型

深度：33.0mm，宽度：70.2mm，高度：15.5mm

• 高分辨率

8点/mm打印头，打印清晰

• 符合RoHS

型号

Item	Part Numbers
Printer mechanism	FTP-628MCL101#80 without platen detect switch FTP-628MCL103#80 with platen detect switch
LSI for driving	FTP-628CU311 *1
Interface board*2	Serial/USB	FTP-628DSL311 *2
Interface board*2	Serial/USB	FTP-628DSL312 *2
Interface cable	Serial	FTP-628Y302
Interface cable	USB	FTP-629Y301#01
Power supply cable	Logic, head, motor	FTP-628Y403

*1: Applied energy is set for standard paper by default. Please adjust applied energy by energy adjustment command in the LSI when using with
liner-less label.
*2: Please see page 3 for basic interface board information. More detailed information can be obtained from your local Fujitsu sales representative.

规格

项目		规格参数
型号		FTP-628MCL101#80	FTP-628MCL103#80
打印方法		Thermal sensitive line dot method
点状结构		384 dots/lines
点间距（水平）		0.125mm (8 dots/mm) - Dot density
点间距（垂直）		0.125mm (8 dots/mm) - Line feed pitch
有效打印区域		48mm
纸张宽度		58mm +0/-1
纸张厚度		60-100µm (some paper in this range may not be used because of paper characteristics
打印速度		Max. 80mm/s (640 dot lines/s) at 9.5V
工作电压	打印头	4.2VDC to 9.5VDC, 2.4A, at 25°C, concurrent applied dots: 64 dots, Rav=176Ω
	打印头电机	4.2VDC to 9.5VDC, 0.75A maximum (average 0.56A)
	逻辑器件	3.3VDC±10% or 5VDC±10%, 0.1A maximum
尺寸(WxDxH)	打印机芯	70.2 x 33.0 x 15.5mm
重量	打印机芯	Approx. 40.2g
预期寿命	打印头	Pulse durability: 100 million pulse/dot (using Fujitsu Components’ standard driving method) Wear resistance: 50km (at 25% or less print ratio)
工作环境	工作温度*	0°C to +50°C
	工作湿度	20 to 85% RH (no condensation)
	储存温度	-20°C to +60°C (excluding paper)
	储存湿度	5 to 95% RH (no condensation)
检测功能	打印头温度检测	By thermistor
	缺纸/标记检测	By photointerrupter
	进纸轴释放/摇臂检测	-	By mechanical switch
推荐热敏纸	无衬纸	E623-404-J002 (Nakagawa paper)

*: +5°C to 40°C printing density assurance range

接口板

Item	Specifications
Part number	FTP-628DSL311	FTP-628DSL312
Power	4.2 to 9.5V	21.6 to 26.4V
Characteristic dimensions (W x H)	12 x 24 dots, 8 x 16 dots
Character type	Alphanumeric, Kana, International and special, download character
Interface	RS232C, USB
Dimensions (W x D)	67.2 x 32 mm
