型号

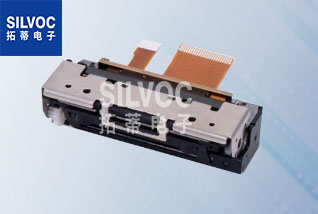

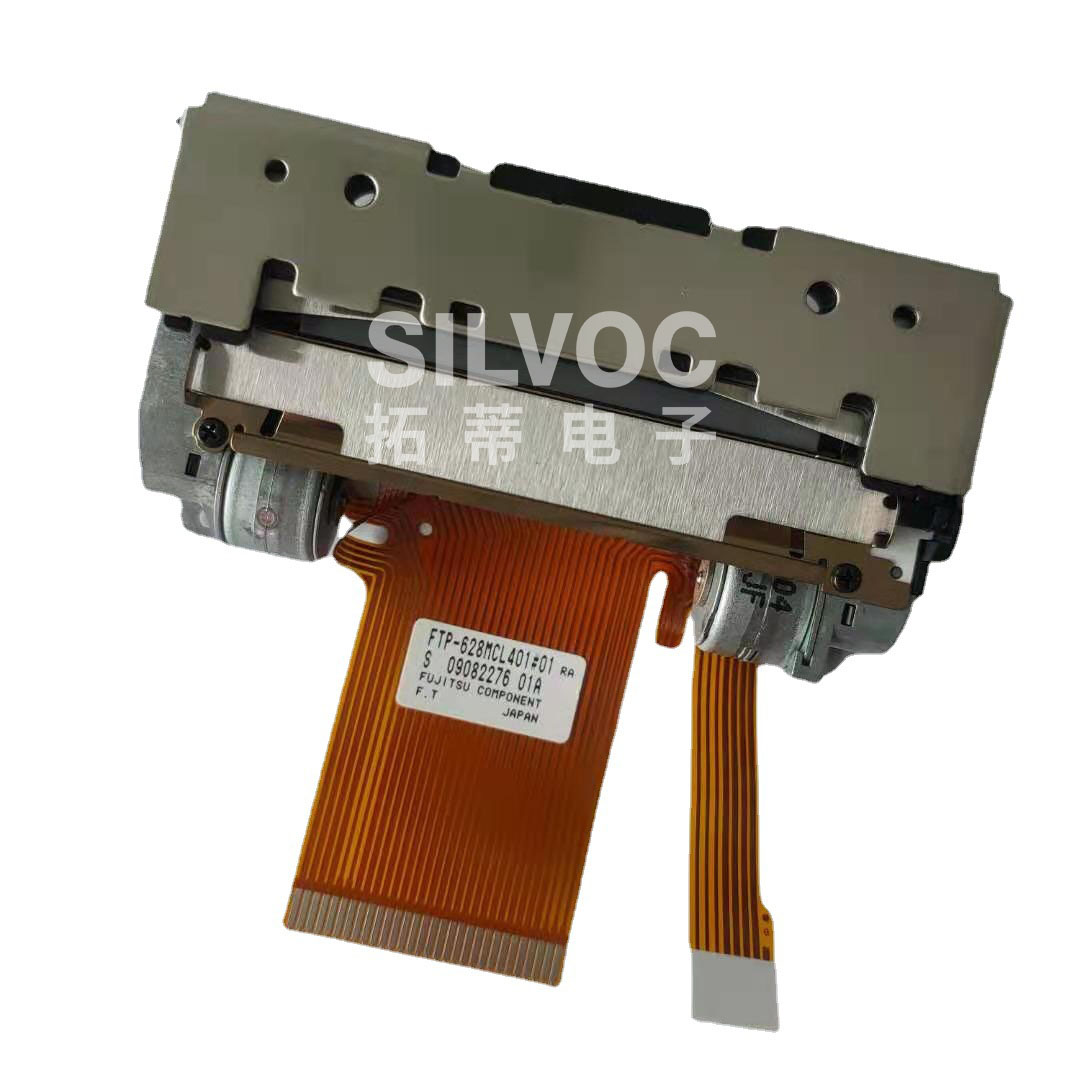

FTP-628MCL401#01、FTP-628MCL451#01

打印方法

Thermal-line   dot method

点状结构

384   dots/line

点间距（水平）

0.125 mm   (8 dots/mm)—Dot density

点间距（垂直）

0.125 mm   (8 dots/mm)—Line feed pitch

有效打印区域

48 mm

列数

ANK 32   columns/line (maximum 12 x 24 dot font)

纸张宽度

58 mm+0 -1

纸张厚度

60 to 85 µm   (some paper in this range may not be used because of paper characteristics)

打印速度

Maximum 80mm/sec.   (640dotline/sec.) at 9.5V *1
  Maximum   60mm/sec.(480 dotline/sec.) at 8.5V *2

字符类型

Alphanumeric,   katakana: 159 types
  International characters: 195 types
  JIS Kanji(Kanji CG loaded board): about 6800 types

字符、尺寸（宽×高）、列数

12 × 24   dots, (1.5 × 3.0 mm), 32 columns: alphanumeric, katakana
  24 × 24 dots, (3.0 × 3.0 mm), 16 columns: alphanumeric, katakana, Kanji
  8 × 16 dots, (1.0 × 2.0 mm), 48 columns: alphanumeric, katakana
  16 × 16 dots, (2.0 × 2.0 mm), 24 columns: alphanumeric, katakana, Kanji

接口

Conforms to   RS232C / Centronics

工作电压

打印头

4.2 to 9.5VDC,   2.4A (Head voltage 7.2VDC, resistance 176Ω,
  25ºC,   concurrent applied dots 64 dots)

电机

4.75 to 9.5VDC,   0.75A maximum

切刀电机

4.75 to 9.5VDC,   1.0A maximum

逻辑器件

3.3 or 5VDC   +/-10%, 0.1A maximum

尺寸

切刀结构

81.2 x 42.2 x   21.8 mm (W x D x H)

接口板

70 x 60 x12 mm

重量

切刀结构

Approximately 100g

接口板

Approximately 25g

寿命

打印头

Pulse resistance:   100 million pulses/dot (under our standard
  conditions).   Abrasion resistance: paper traveling distance
  50km   (print ratio: 12.5% or less)

切刀

500,000 cuts

工作环境

工作温度*

+5° to +40°C   (guarantee)

工作湿度

20 to 85% RH (no   condensation)

储存温度

-20˚ C to +60˚ C   (paper not included )

储存湿度

5 to 90% RH (no   condensation )

检测功能

打印头温度检测

Detected by   thermistor

缺纸/标记检测

Detected by   photo-interrupter

进纸轴释放

Detected by sliding   switch

可动叶片

Detected by photo-interrupter

推荐热敏纸

高灵敏度纸:

TF50KS-E4 (Nippon   Paper)

标准纸张:

TK50KS-E (Nippon   Paper)

FTP-020PU001   (58mm)
  PD150R   (Oji Paper)
  FTP-020P0701   (58mm)

中寿命存储纸:

TK60KS-F1 (Nippon   Paper)
  FTP-020P0102   (58mm)
  PD170R   (Oji Paper)

P220VBB-1   (Mitsubishi Paper)

长寿命存储纸:

PD160R-N (Oji   Paper)
  AFP-235   (Mitsubishi Paper)
  TP50KJ-R   (Nippon Paper)
  HA220AA   (Nippon Paper)
