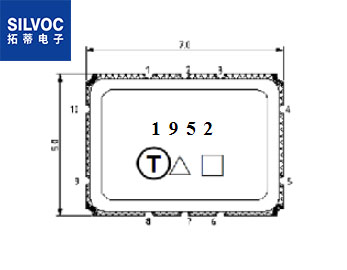

TA1952A:TST/嘉硕 滤波器(SAW Filter) 121.5 MHz  SMD7.0*5.0

型号(MODEL NO.): TA1952A    121.5 MHz  SMD7.0*5.0

A. MAXIMUM RATING:

1.  输入功率(Input Power Level): 15 dBm

2.  DC电压(DC Voltage): 10 V

3.  工作温度(Operating Temperature): -40°C to +85°C

4.  储藏温度(Storage Temperature): -45°C to +90°C

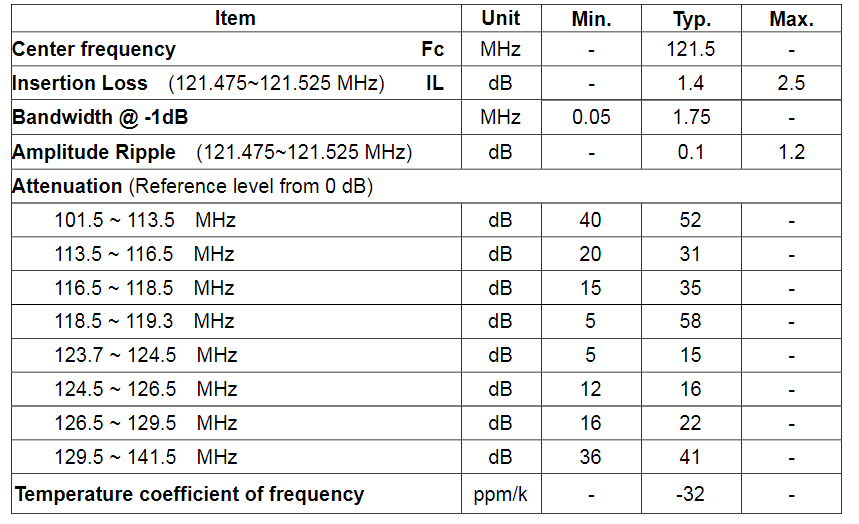

B. 电气特性(ELECTRICAL CHARACTERISTICS):

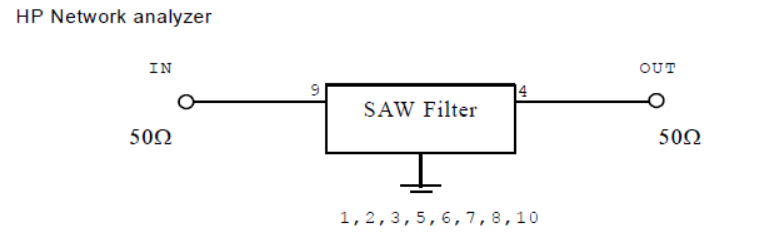

C. 测量电路(MEASUREMENT CIRCUIT):

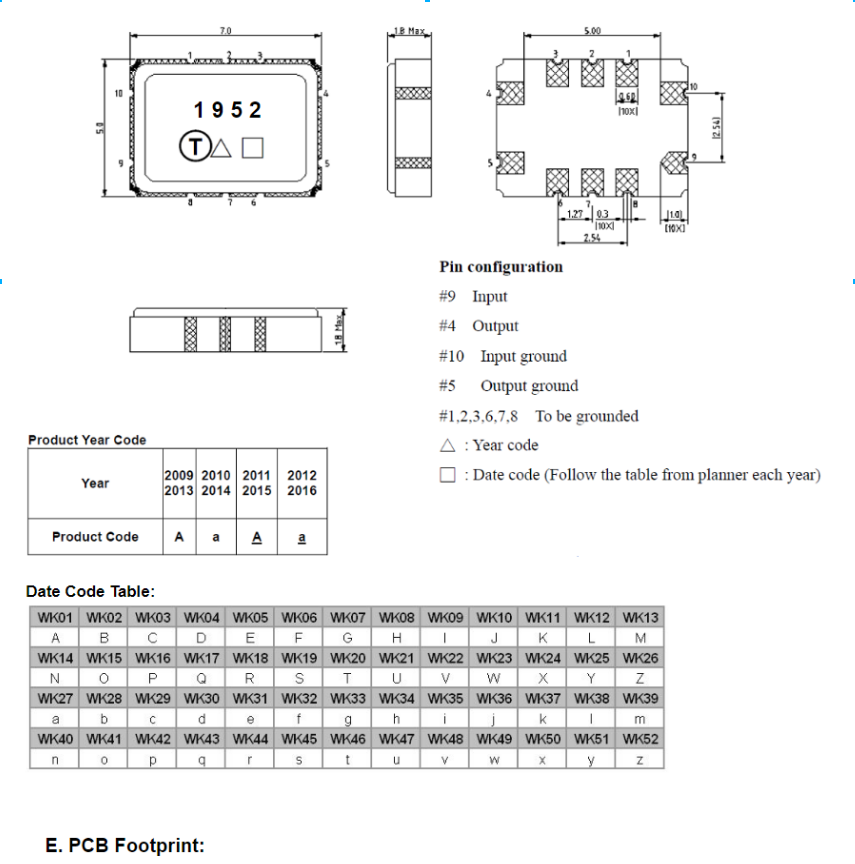

D. 外部尺寸(OUTLINE DRAWING):

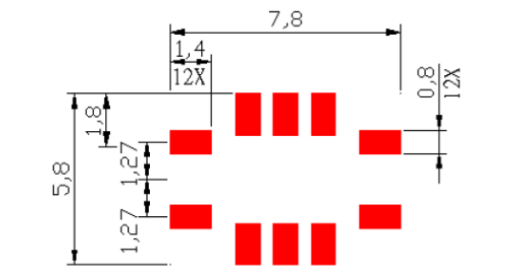

E. PCB Footprint:
