TE0131A:TST/嘉硕SAW双工器(SAW Diplexer)

TE0131A:1222.7625 / 1575.42 MHz SAW Diplexer  SMD5X5mm

A.MAXIMUM RATING:

1、输入功率(Input Power Level): 10 dBm

2、DC电压(DC voltage): 10 V

3、工作温度(Operating Temperature): -55°C to +85°C

4、储藏温度(Storage Temperature): -55°C to +105°C

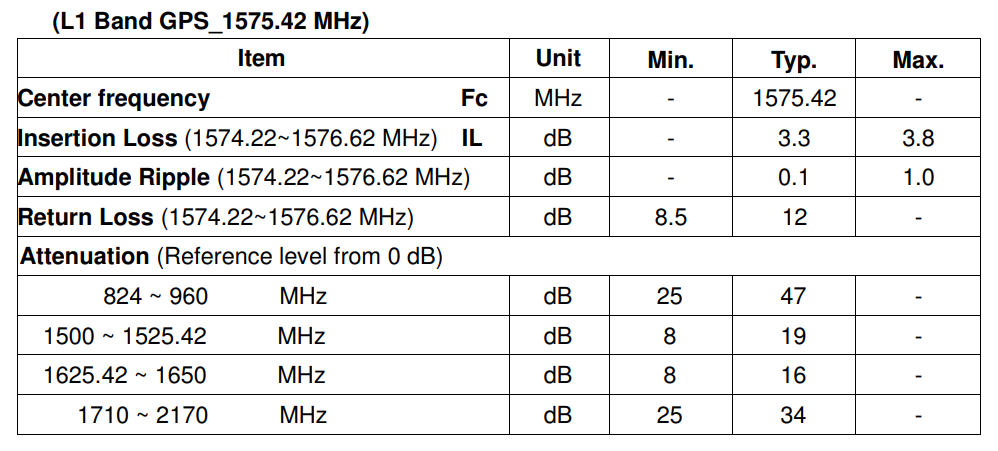

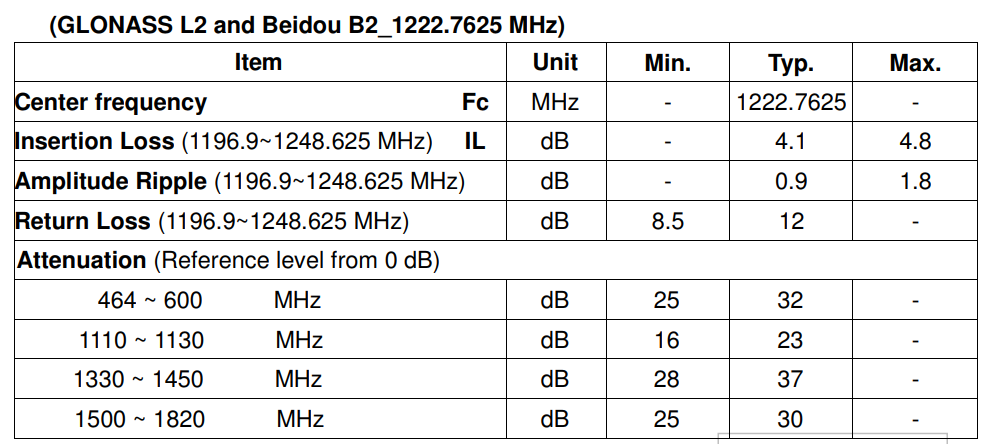

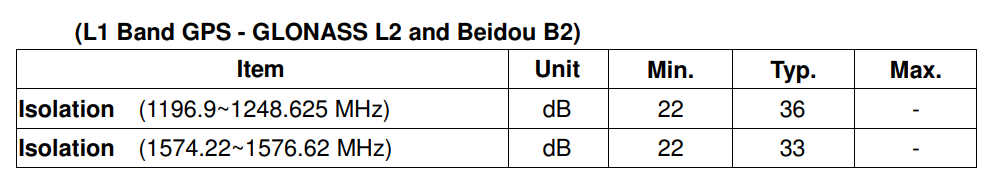

B. 电气特性(ELECTRICAL CHARACTERISTICS):

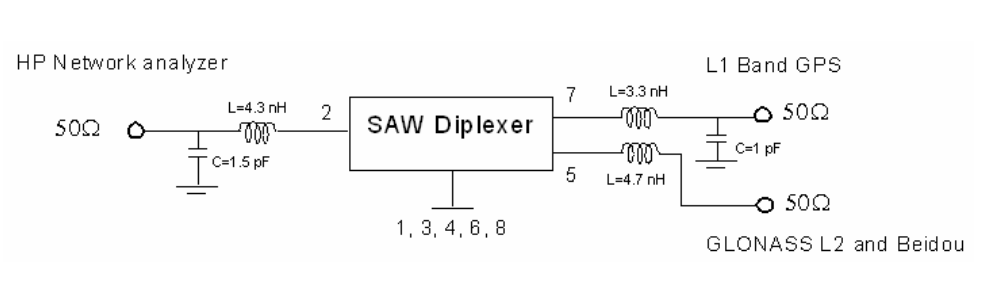

C. 测量电路(MEASUREMENT CIRCUIT) :

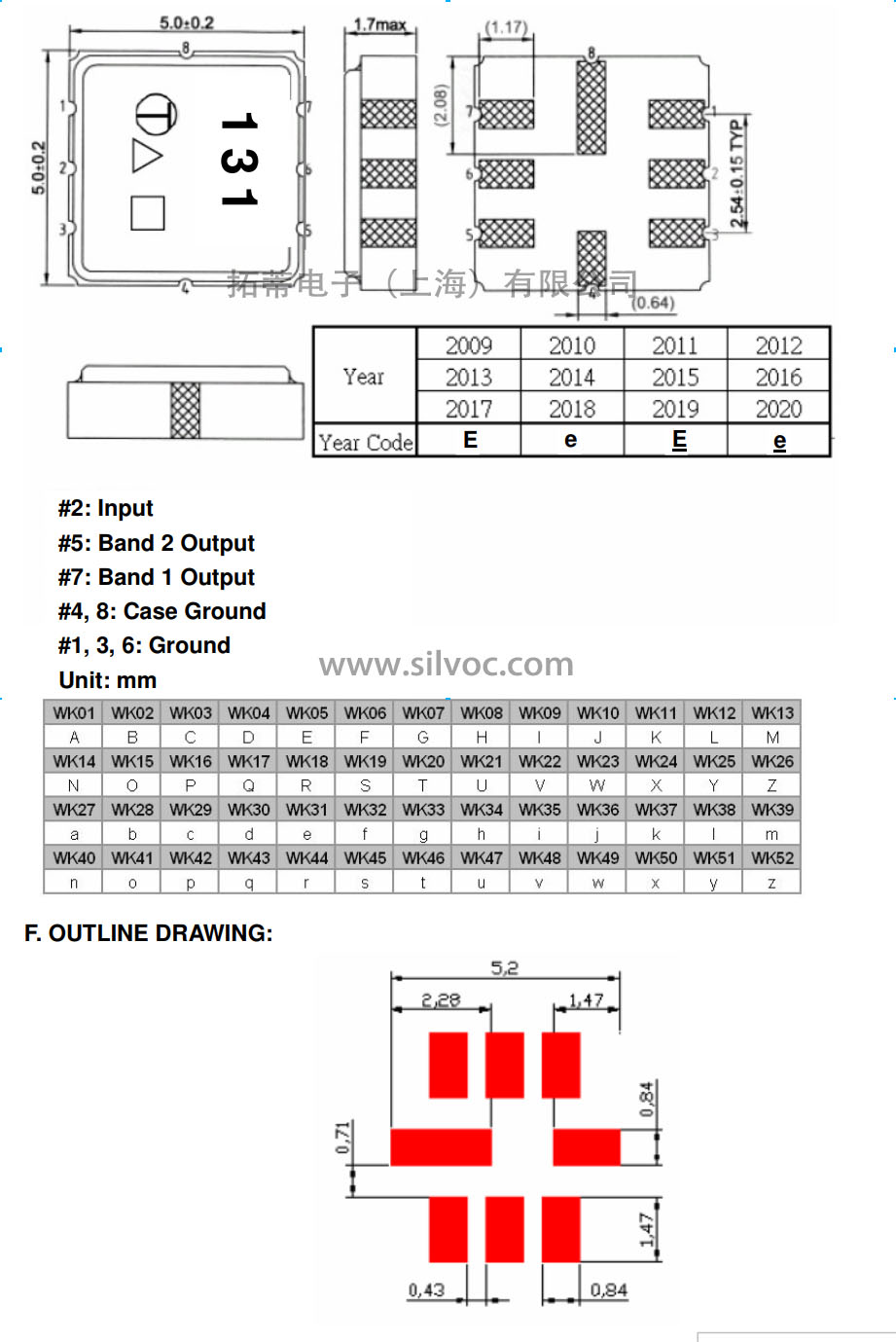

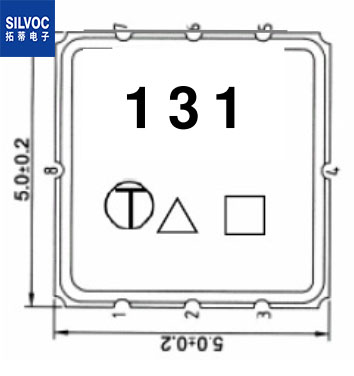

D. 外部尺寸(OUTLINE DRAWING):
