SG-8101CGA (AEC-Q100)-拓蒂电子（上海）有限公司

SG-8101CGA (0.67-170MHZ)：EPSON(爱普生)车载用可编程晶振，工作温度125°C

外部尺寸：2.5× 2.0 mm（SG-8101CGA）
输出频率：0.67 MHz to 170 MHz；电压：1.62V to 3.63V；输出：CMOS；功能：Output enable (OE) or Standby (/ST)
频率容差、工作温度：±15 × 10^-6 (-40°C to +85°C)；±20 × 10^-6 (-40 °C to +105 °C)；±50 × 10^-6 (-40 °C to +125 °C) ；±100 × 10^-6 (-40 °C to +125 °C)
利用PLL技术，写入频点参数，快速交货
AEC-Q100 compliant

规格参数

SG-8101CGA (0.67-170MHZ)：EPSON(爱普生)车载用可编程晶振，工作温度125°C

SG-8101CGA常用频点列表如下：

规格型号	料号	MOQ (PCS)
SG-8101CGA MP Blank	X1G005171000200	3000
SG-8101CGA 1.000000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 1.000000MHz TCHSA	X1G005171xxxx00	3000
SG-8101CGA 3.072000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 4.000000MHz TCHSA	X1G005171xxxx00	3000
SG-8101CGA 5.560000MHz TCHSA	X1G005171xxxx00	3000
SG-8101CGA 8.000000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 8.000000MHz TBGPA	X1G005171xxxx00	3000
SG-8101CGA 8.000000MHz TBGSB	X1G005171xxxx00	3000
SG-8101CGA 9.900000MHz TJJPA	X1G005171008600	3000
SG-8101CGA 10.000000MHz TCHSA	X1G005171xxxx00	3000
SG-8101CGA 12.000000MHz TCHPA	X1G005171003300	3000
SG-8101CGA 12.000000MHz TBGPA	X1G005171017300	3000
SG-8101CGA 12.288000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 14.745600MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 16.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 16.000000MHZ TBGSA	X1G005171xxxx00	3000
SG-8101CGA 18.000000MHZ TBGPB	X1G005171xxxx00	3000
SG-8101CGA 19.200000MHZ TCHPA	X1G005171005700	3000
SG-8101CGA 20.000000MHz TBGPA	X1G005171xxxx00	3000
SG-8101CGA 20.000000MHz TCHPA	X1G005171003700	3000
SG-8101CGA 24.000000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 24.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 24.000000MHZ TBGPB	X1G005171xxxx00	3000
SG-8101CGA 24.576000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 25.000000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 25.000000MHZ TCHPB	X1G005171xxxx00	3000
SG-8101CGA 25.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 25.000000MHZ TJJPA	X1G005171004200	3000
SG-8101CGA 26.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 26.000000MHZ TCHPA	X1G005171005600	3000
SG-8101CGA 27.000000MHZ TJJPA	X1G005171006600	3000
SG-8101CGA 27.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 30.000000MHz TBGPA	X1G005171xxxx00	3000
SG-8101CGA 30.000000MHz TCHPA	X1G005171xxxx00	3000
SG-8101CGA 32.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 32.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 33.330000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 33.330000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 33.333300MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 33.333300MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 37.125000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 40.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 40.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 40.960000MHZ TCHSA	X1G005171xxxx00	3000
SG-8101CGA 48.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 50.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 50.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 50.000000MHZ TBGSA	X1G005171xxxx00	3000
SG-8101CGA 54.000000MHZ TCHPA	X1G005171006700	3000
SG-8101CGA 65.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 66.000000MHz TBGSA	X1G005171xxxx00	3000
SG-8101CGA 66.000000MHz TCHSA	X1G005171xxxx00	3000
SG-8101CGA 66.670000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 72.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 75.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 80.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 80.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 100.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 100.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 120.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 125.000000MHZ TCHPA	X1G005171001600	3000
SG-8101CGA 133.000000MHZ TBGPA	X1G005171xxxx00	3000
SG-8101CGA 135.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 148.500000MHZ TJJPA	X1G005171005000	3000
SG-8101CGA 150.000000MHZ TCHPA	X1G005171xxxx00	3000
SG-8101CGA 156.250000MHZ TCHPA	X1G005171xxxx00	3000

特征

爱普生(EPSON)车载用可编程晶振：SG-8101CGA

车载用可编程晶振: SG-8101CGA，CMOS输出，供电电压是1.62V ~ 3.63V，工作温度可以达到-40℃至+125℃，符合车载用温度要求，精度做到100ppm、50ppm、20ppm和15ppm。

l 外部尺寸：2.5× 2.0 mm（SG-8101CGA）

l 输出频率：0.67 MHz to 170 MHz (1 × 10^-6 Step)

l 电压：1.62V to 3.63V

l 功能：Output enable (OE) or Standby (/ST)

l 输出：CMOS

l 频率容差、工作温度：

±15 × 10^-6 / -40 °C to +85 °C；

±20 × 10^-6 / -40 °C to +105 °C

±50 × 10^-6/ -40 °C to +125 °C

±100 × 10^-6/ -40 °C to +125 °C

l 利用PLL技术，写入频点参数，快速交货

l AEC-Q100 compliant

概述

爱普生的SG-8101CGA是一款可编程晶体振荡器，具有汽车用CMOS输出。虽然该系列提供了相同的频率和其他参数的简单编程功能，符合AEC-Q100标准，汽车最高温度限制为125°C。2.5×2.0 mm的小型封装将使电子制造商能够节省板空间。

规格 (特征)

项目

符号

规格说明

条件

电源电压

V_CC

1.80 V Typ.

2.50 V Typ.

3.30 V Typ.

1.62 to 1.98V

1.98 to 2.20V

2.20 to 2.80V

2.70 to 3.63 V

输出频率范围

f₀

0.67 MHz to 170 MHz

储存温度

T_stg

-40°C to +125°C

Storage as single product.

工作温度

T_use

G: -40°C to +85°C

H: -40°C to +105°C

J: -40°C to +125°C

频率稳定度 *1

f_tol

B: ±15 × 10^-6

T_use= -40°C to +85°C

C: ±20 × 10^-6

T_use= -40°C to +105°C

J: ±50 × 10^-6

T_use= -40°C to +125°C

L: ±100 × 10^-6

T_use= -40°C to +125°C

功耗

I_CC

3.3mA Max.

3.4mA Max.

3.5mA Max.

3.6mA Max.

T_use= +125°C

No load
f₀= 20 MHz

3.2mA Max.

3.3mA Max.

3.4mA Max.

3.5mA Max.

T_use= +105°C

2.7mA Typ.

2.9mA Typ.

3.0mA Typ.

T_use= +25°C

5.6mA Max.

5.9mA Max.

6.8mA Max.

8.2mA Max.

T_use= +125°C

No load
f₀= 170 MHz

5.5mA Max.

5.8mA Max.

6.7mA Max.

8.1mA Max.

T_use= +105°C

4.7mA Typ.

5.7mA Typ.

6.8mA Typ.

T_use= +25°C

输出禁用电流

I_dis

3.3mA Max.

3.4mA Max.

3.6mA Max.

T_use= +125°C

OE=GND , f0 = 170 MHz

3.2mA Max.

3.3mA Max.

3.5mA Max.

T_use= +105°C

待机电流

I_std

2.3μA Max.

2.5μA Max.

3.0μA Max.

4.2μA Max.

T_use= +125°C

ST = GND

0.9μA Max.

1.0μA Max.

1.5μA Max.

2.5μA Max.

T_use= +105°C

0.3μA Typ.

0.4μA Typ.

0.5μA Typ.

1.1μA Typ.

T_use= +25°C

占空比

SYM

45% to 55%

50% V_CC Level

输出电压
(DC特性)

V_OH

90% V_CC Min.

I_OH/I_OL Conditions [mA]

tr / tf

Vcc

Default
(f₀>40MHz)
Fast

I_OH

-2.5

-3.5

-4.0

-5.0

I_OL

2.5

3.5

4.0

5.0

Default
(f₀≦40MHz)

I_OH

-1.5

-2.0

-2.5

-3.0

V_OL

10% V_CC Max.

I_OL

1.5

2.0

2.5

3.0

Slow

I_OH

-1.0

-1.5

-2.0

-2.5

I_OL

1.0

1.5

2.0

2.5

A: 1.62 to 1.98 V , B: 1.98 to 2.20 V
C: 2.20 to 2.80 V , D: 2.70 to 3.63 V

输出负载条件
(CMOS)

L_CMOS

15pF Max.

输入电压

V_IH

70% V_CC Min.

OE or ST

V_IL

30% V_CC Max.

上升/下降时间

默认

tr / tf

3.0 ns Max.

f₀> 40MHz

20% V_CC to 80% V_CC
L_CMOS=15pF

6.0 ns Max.

f₀ ≦ 40MHz

快速

3.0 ns Max.

f₀=0.67to170MHz

缓慢

10.0 ns Max.

f₀=0.67to20MHz

禁用时间

t_stp

1 μs Max.

Measured from the time OE or ST pin crosses 30 % Vcc

启用时间

t_sta

1 μs Max.

Measured from the time OE pin crosses 70 % Vcc

恢复时间

t_res

3 ms Max.

Measured from the time ST pin crosses 70 % Vcc

振荡器启动时间

t_str

3 ms Max.

Measured from the time Vcc reaches its rated minimum value, 1.62 V

频率老化

f_aging

This is included in frequency tolerance specification

+25°C, first year

*1频率容差包括初始频率容差、温度变化、电源电压变化、回流漂移、负载漂移和老化（+25°C，10年）。

Pin description

Pin	Name	I/O type	Function
1	OE	Input	Output enable	高：OUT引脚的指定频率输出低：输出引脚低（弱下拉），只有输出驱动器被禁用。
1	ST	Input	Standby	高：OUT引脚的指定频率输出低：输出引脚低（弱下拉）设备进入待机模式。电源电流降低至the least值I_std。
2	GND	Power	Ground
3	OUT	Output	Clock output
4	V_CC	Power	Power supply

*2请不要在打开状态下使用OE/S̅T̅终端。

产品命名规则

(1) 产品型号 SG-8101CGA 25.000000MHZ T JJ P A

(标准形式) ① ② ③ ④ ⑤⑥⑦⑧

① Model ② Size ③ Frequency ④ Supply voltage (T: 1.8 V to 3.3 V Typ.)

⑤ Frequency tolerance (B: ±15 × 10^-6、C:±20 × 10^-6、J:±50 × 10^-6、L:±100 × 10^-6)

⑥ Operating temperature (G: -40 °C to +85 °C、H: -40 °C to +105 °C、J: -40 °C to +125 °C)

⑦ Function(P: OE, S:ST) ⑧ Rise time / Fall time

② Size
CGA	2.5 mm × 2.0 mm

⑤ Frequency tolerance / ⑥ Operating temperature
BG	±15 × 10^-6/ -40 °C to +85 °C
CH	±20 × 10^-6/ -40 °C to +105 °C
JJ	±50 × 10^-6/ -40 °C to +125 °C
LJ	±100 × 10^-6/ -40 °C to +125 °C

⑦ Function
P	Output enable (#1pin = OE)
S	Standby (#1pin = S̅T̅)

⑧ Rise time / Fall time
A	Default
B	Fast
C	Slow

(2) 产品料号 (Blank section is decided by each detail specifications.)

SG-8101CGA X1G005171xxxx00

①② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications ⑤ Packing（00：Recommended packing 3K pcs/Reel）

(3) 空白片型号和料号：

SG-8101CGA MP Blank: X1G005171000200

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications

⑤ Packing（00：Recommended packing 3K pcs/Reel）

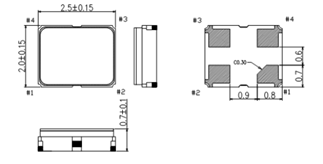

External dimensions (Unit: mm)

SG-8101CGA external dimensions.png

为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1µF旁路电容器。

Footprint (Recommended) (Unit: mm)

SG-8101CGA footprint.png
