SG3225HBN：爱普生 (EPSON)有源差分晶振，输出HCSL，低抖动

有源差分晶振，输出频率: 100MHz to 325MHz
输出：HCSL，电源电压：2.5 V Typ. / 3.3 V Typ.
频率稳定度: ±50 × 10^-6；功能: Output enable(OE)
工作温度: -40 °C to +85 °C, -40 °C to +105 °C
低相位抖动：85 fs typ. ( f₀ = 156.25 MHz )
外部尺寸: 3.2 ×2.5 ×1.05 mm

规格参数

SG3225HBN：爱普生 (EPSON)有源差分晶振，输出HCSL，低抖动

SG3225HBN常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
SG3225HBN	X1G005141xxxx00	2000
SG3225HBN 156.250000MHz CJGA	X1G005141000200	2000
SG3225HBN 100.000000MHz CLGA	X1G005141000300	2000
SG3225HBN 100.000000MHz CJGA	X1G005141000400	2000
SG3225HBN 125.000000MHz CJGA	X1G005141000500	2000
SG3225HBN 125.000000MHz CLGA	X1G005141000600	2000
SG3225HBN 212.500000MHz CJGA	X1G005141060200	2000
SG3225HBN 250.000000MHz CJGA	X1G005141060400	2000
SG3225HBN 100.000000MHz CLHA	X1G005141100300	2000
SG3225HBN 156.250000MHz CLHA	X1G005141100400	2000

特征

爱普生(EPSON)有源差分晶振: SG3225HBN

l 有源差分晶振

l 输出频率: 100MHz to 325MHz

l 输出：HCSL

l 电源电压：2.5 V Typ. / 3.3 V Typ.

l 频率稳定度: ±50 × 10^-6

l 功能: Output enable(OE)

l 工作温度: -40 °C to +85 °C, -40 °C to +105 °C

l 低相位抖动：85 fs typ. ( f₀ = 156.25 MHz )

l 外部尺寸: 3.2 ×2.5 ×1.05 mm

概述

SG3225HBN是一种低抖动的HCSL输出晶体振荡器。

该产品作为满足PCIe®1.0至PCIe®5.0抖动要求的PCI Express®参考时钟非常出色。

规格 (特征)

项目	符号	规格说明	条件 / 备注
输出频率范围	f₀	100MHz to 325MHz	Please contact us for inquiries regarding available frequencies.
电源电压	V_CC	D:2.5V ±0.125V, C:3.3V ±0.165V
储存温度	T_stg	-55℃ to +125℃	Store as bare product.
工作温度	T_use	G: -40℃ to +85℃, H: -40℃ to +105℃
频率稳定度	f_tol	J: ± 50 × 10^-6 (Not available H: -40℃ to +105℃)	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
频率稳定度	f_tol	L: ± 100 × 10^-6	Includes initial tolerance, temperature change, Vcc change and 10 years aging(+25 °C)
功耗	I_CC	25 mA Typ. , 35mA Max.	OE=V_CC, with output load
禁用电流	I_dis	15mA Max.	OE=GND
占空比	SYM	45% to 55%	At outputs crossing point
输出电压	V_OH	0.75 V Typ., 0.66V to 0.85V	DC characteristics, single output
输出电压	V_OL	0 V Typ., -0.15V to 0.15V	DC characteristics, single output
交叉电压	V_CR	0.25V to 0.55V
输出负载条件	L_HCSL	50Ω
输出负载条件	R_S	33Ω
输入电压	V_IH	70% V_CC Min.	OE terminal
输入电压	V_IL	30% V_CC Max.	OE terminal
差分输出上升转换速率/ 下降转换速率	Rr / Rf	1 V/ns to 4V/ns	Between -0.15 V and 0.15 V of differential output
启动时间	t_str	10ms Max.	Time at minimum supply voltage to be 0 s

LV-PECL (Low Voltage Positive Emitter-Couple Logic)：低压正发射极耦合逻辑

LVDS(Low Voltage Differential Signaling)：低压差分信号

HCSL(High-speed Current Steering Logic)：高速电流控制逻辑

相位抖动

Pin #

Connection

Function

OE terminal / active high

OE function	Output
HIGH or "open"	Specified frequency is output: Enable
LOW	Output becomes high impedance: Disable

—

GND

GND terminal

OUT

Output terminal (Positive)

O̅U̅T

Output terminal (Negative)

V_CC

V_CC terminal

Pin description

Pin #

Connection

Function

OE terminal / active high

OE function

Oscillator circuit

Output

HIGH or "open"

Oscillation

Specified frequency: Enable

LOW

OE: Oscillation

S̅ T̅: Oscillation stop

High impedance: Disable

—

GND

GND terminal

OUT

Output terminal (Positive)

O̅U̅T

Output terminal (Negative)

V_CC

V_CC terminal

产品命名规则

SG3225VAN等系列晶振产品名称参数：

(1) 产品名称 (标准形式)

SG3225HBN 156.250000MHZ C J G A (⑤⑥: Not Available code JH)

① ② ③ ④⑤⑥⑦

① Model ② Output (H: HCSL) ③ Frequency ④ Supply voltage (D: 2.5 V Typ. , C: 3.3 V Typ.)

⑤ Frequency tolerance (J: ±50 × 10^-6 , L: ±100 × 10^-6 )

⑥ Operating temperature range (G:-40 to +85°C, H:-40 to +105°C)

⑦ Internal identification code (A: default)

④ Supply voltage
D	2.5 V Typ.
C	3.3 V Typ.

⑤ Frequency tolerance
J	±50 × 10^-6
L	±100 × 10^-6

⑥ Operating temperature range
G	-40 °C to +85 °C
H	-40 °C to +105 °C

(2) 产品型号 / 产品编码 (空白部分由每个详细规范决定。)

SG3225HBN X1G005141xxxx00

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications

⑤ Packing（00：Recommended packing 2000 pcs/Reel）

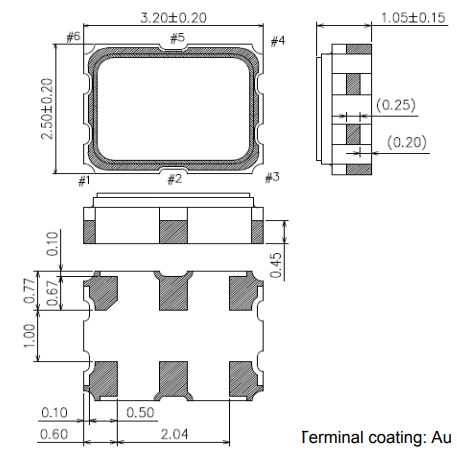

External dimensions (Unit: mm)

SG3225HBN External dimensions.png

为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.01µF to 0.1µF去耦电容。

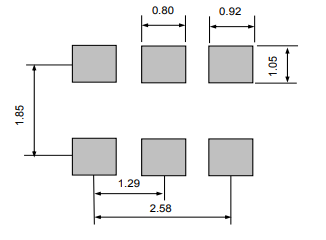

Footprint (Recommended) (Unit: mm)

SG3225HBN footprint.png
