SG5032CAN：爱普生 (EPSON)有源晶振

有源晶振，输出频率: 20种标准频率
输出: CMOS，电压: 1.60 V to 3.63 V，功能: Standby (/ST)
工作温度: -40 °C to +105 °C
外部尺寸: 2.0× 1.6 mm（SG2016CAN）、2.5× 2.0 mm（SG-210STF）、
3.2× 2.5 mm（SG3225CAN）、5.0× 3.2mm（SG5032CAN）、
7.0× 5.0 mm（SG7050CAN）

规格参数

SG5032CAN：爱普生 (EPSON)有源晶振

SG5032CAN常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
SG5032CAN 4.000000MHz TJGA	X1G004451003400	1000
SG5032CAN 8.000000MHz TJGA	X1G004451002100	1000
SG5032CAN 10.000000MHz TJGA	X1G004451001300	1000
SG5032CAN 12.000000MHz TJGA	X1G004451002800	1000
SG5032CAN 12.288000MHz TJGA	X1G004451000100	1000
SG5032CAN 14.745600MHz TJGA	X1G004451001900	1000
SG5032CAN 16.000000MHz TJGA	X1G004451000200	1000
SG5032CAN 20.000000MHz TJGA	X1G004451001100	1000
SG5032CAN 24.000000MHz TJGA	X1G004451000300	1000
SG5032CAN 24.576000MHz TJGA	X1G004451002900	1000
SG5032CAN 25.000000MHz TJGA	X1G004451000400	1000
SG5032CAN 26.000000MHz TJGA	X1G004451008200	1000
SG5032CAN 27.000000MHz TJGA	X1G004451000500	1000
SG5032CAN 32.000000MHz TJGA	X1G004451001400	1000
SG5032CAN 33.330000MHz TJGA	X1G004451021200	1000
SG5032CAN 33.333300MHz TJGA	X1G004451016700	1000
SG5032CAN 40.000000MHz TJGA	X1G004451001200	1000
SG5032CAN 48.000000MHz TJGA	X1G004451000700	1000
SG5032CAN 50.000000MHz TJGA	X1G004451000800	1000
SG5032CAN 72.000000MHz TJGA	X1G004451021700	1000
SG5032CAN 4.000000MHz TJHA	X1G004451019600	1000
SG5032CAN 8.000000MHz TJHA	X1G004451019700	1000
SG5032CAN 10.000000MHz TJHA	X1G004451017800	1000
SG5032CAN 12.000000MHz TJHA	X1G004451019900	1000
SG5032CAN 12.288000MHz TJHA	X1G004451020100	1000
SG5032CAN 14.745600MHz TJHA	X1G004451020200	1000
SG5032CAN 16.000000MHz TJHA	X1G004451020300	1000
SG5032CAN 20.000000MHz TJHA	X1G004451020500	1000
SG5032CAN 24.000000MHz TJHA	X1G004451020600	1000
SG5032CAN 24.576000MHz TJHA	X1G004451020700	1000
SG5032CAN 25.000000MHz TJHA	X1G004451020800	1000
SG5032CAN 26.000000MHz TJHA	X1G004451020900	1000
SG5032CAN 27.000000MHz TJHA	X1G004451021000	1000
SG5032CAN 32.000000MHz TJHA	X1G004451021100	1000
SG5032CAN 33.330000MHz TJHA	X1G004451021300	1000
SG5032CAN 33.333300MHz TJHA	X1G004451021400	1000
SG5032CAN 40.000000MHz TJHA	X1G004451021500	1000
SG5032CAN 48.000000MHz TJHA	X1G004451011200	1000
SG5032CAN 50.000000MHz TJHA	X1G004451003600	1000
SG5032CAN 72.000000MHz TJHA	X1G004451021800	1000
SG5032CAN 12.000000MHz TDBA	X1G004451019800	1000
SG5032CAN 12.288000MHz TDBA	X1G004451020000	1000
SG5032CAN 20.000000MHz TDBA	X1G004451020400	1000
SG5032CAN 24.000000MHz TDBA	X1G004451017200	1000
SG5032CAN 25.000000MHz TDBA	X1G004451009700	1000
SG5032CAN 48.000000MHz TDBA	X1G004451014900	1000
SG5032CAN 50.000000MHz TDBA	X1G004451011500	1000
SG5032CAN 72.000000MHz TDBA	X1G004451021600	1000

特征

爱普生(EPSON)有源晶振: SG2016CAN、SG3225CAN、SG5032CAN、SG7050CAN、SG-210STF

l 有源晶振

l 输出频率: 20种标准频率

l 输出: CMOS

l 电压: 1.60 V to 3.63 V

l 功能: Standby (/ST)

l 工作温度: -40 °C to +105 °C

l 外部尺寸:

2.0× 1.6 mm（SG2016CAN）

2.5× 2.0 mm（SG-210STF）、

3.2× 2.5 mm（SG3225CAN）、

5.0× 3.2mm（SG5032CAN）、

7.0× 5.0 mm（SG7050CAN）

概述

爱普生(Epson)的SG2016CAN、SG3225CAN、SG5032CAN、SG7050CAN和SG-210STF是具有CMOS输出的简单封装晶体振荡器（SPXO）系列。这些SPXO是物联网、可穿戴设备、医疗、工业自动化等各种应用的理想选择。这些SPXO具有低电流消耗、1.6V至3.63V的宽工作电压和-40°C至85°C的宽工作温度范围，此外还可提供高达105°C的工作温度。这些SPXO有五种不同的封装尺寸，从2.0×1.6 mm到7.0×5.0 mm，并有标准引脚输出。

规格 (特征)

项目

符号

规格说明

条件 / 备注

输出频率范围

f₀

4 MHz, 8 MHz, 10 MHz, 12 MHz, 12.288 MHz,14.7456 MHz, 16 MHz, 20 MHz, 24 MHz, 24.576 MHz, 25 MHz, 26 MHz, 27 MHz, 32 MHz, 33.33 MHz, 33.3333 MHz, 40 MHz, 48 MHz, 50 MHz, 72 MHz

电源电压

V_CC

1.60 to 3.63 V

4MHz ≤ fo £ 50 MHz, T_use = +105 °C Max.

Refer to Figure 1

1.71 to 3.63 V

f₀=72 MHz, T_use = +85 °C Max

2.25 to 3.63 V

f₀=72 MHz, T_use = +105 °C Max.

储存温度

T_stg

-55°C to +125°C

SG2016CAN, SG3225CAN

-40°C to +125°C

All others

工作温度

T_use

-20 °C to +70 °C, -40 °C to +85 °C, -40 °C to +105 °C

See of figure *1

频率稳定度

f_tol

±25 × 10^-6

-20 °C to +70 °C

±50 × 10^-6

-40 °C to +85 °C, -40 °C to +105 °C

功耗

I_CC

V_CC=1.8V ± 10%

V_CC=2.5V ± 10%

V_CC=3.3V ± 10%

1.5mA Max.

1.6mA Max.

1.8mA Max.

No load condition, 4 MHz ≤ fo ≤ 20 MHz

1.8mA Max.

2.0mA Max.

2.2mA Max.

No load condition, 20 MHz < fo ≤ 40 MHz

2.1mA Max.

2.4mA Max.

2.6mA Max.

No load condition, 40 MHz < fo≤ 50 MHz

2.4mA Max.

2.8mA Max.

3.0mA Max.

No load condition, fo = 72 MHz

待机电流

I_std

2.1μA Max.

2.5μA Max.

2.7μA Max.

/ST = GND

占空比

SYM

45% to 55%

50 % V_CC level, L_CMOS ≤ 15 pF

输出电压

V_OH

90% V_CC Min.

	1.8V ± 10%	2.5V ± 10%	3.3V ± 10%
V_OH	-1.5mA	-3mA	-4mA
V_OL	1.5mA	3mA	4mA

V_OL

10% V_CC Max.

V_OH-2

V_CC - 0.4 V Min.

	1.8V ± 10%	2.5V ± 10%	3.3V ± 10%
V_OH	-3mA	-4mA	-6mA
V_OL	3mA	4mA	6mA

V_OL-2

0.4 V Max.

输出负载条件
(CMOS)

L_CMOS

15pF Max.

输入电压

V_IH

80% V_CC Min.

/ST terminal

V_IL

20% V_CC Max.

上升/下降时间

tr / tf

3.0 ns Max.

3.5 ns Max. (@1.8 V±10 %)

20% V_CC to 80% V_CC level,
L_CMOS=15pF

启动时间

t_str

3 ms Max.

T = 0 at 90 % V_CC

频率老化

f_aging

±3 × 10^-6 / year Max.

+25 °C, First year

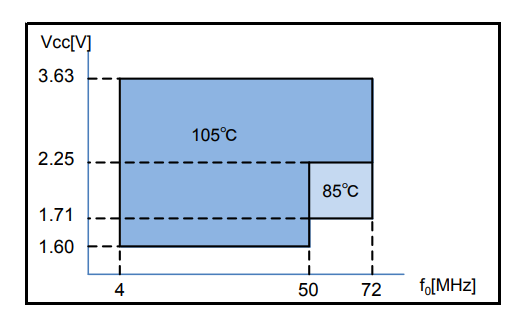

Figure 1（1）.png

Figure 1：工作温度上限和相关条件

请注意，电源电压范围（VCC）取决于输出频率（fo）和操作温度上限（T_use Max）。

Pin description

Pin

Name

I/O type

Function

/ST

Input

/ST terminal

/ST function	Oscillator circuit	Output
HIGH or "open"	Oscillation	Specified frequency: Enable
LOW	Oscillation stop	High impedance: Disable

GND

Power

Ground

OUT

Output

Clock output

V_CC

Power

Power supply

产品命名规则

SG3225CAN等系列晶振产品名称参数：

(1) 产品名称 (标准形式)

SG2016CAN 25.000000MHZ T J G A

SG3225CAN 25.000000MHZ T J G A

SG5032CAN 25.000000MHZ T J G A

SG7050CAN 25.000000MHZ T J G A

① ② ③ ④ ⑤⑥⑦

① Model ② Output(C: CMOS) ③ Frequency ④ Supply voltage

⑤ Frequency tolerance ⑥Operating temperature range

⑦ Internal identification code("A" is default)

④ Supply voltage *See Figure 1
T	1.8 V to 3.3 V Typ.
K	2.5 V to 3.3 V Typ.

⑤Frequency tolerance / ⑥Operating temperature range
DB*	±25 × 10^-6 / -20 °C to +70 °C
JG	±50 × 10^-6 / -40 °C to +85 °C
JH	±50 × 10^-6 / -40 °C to +105 °C

* Please refer to Product number list on Full Data Sheet for available frequencies

(2) 产品名称 (标准形式)

[Model : SG-210STF]

Product name SG-210STF 25.000000MHz L

(Standard form) ① ② ③ ④ ⑤

① Model ② Function(S:Standby) ③ Supply voltage ④ Frequency ⑤ Frequency tolerance

③ Supply voltage *See Figure 1
T	1.8 V to 3.3 V Typ.

⑤Frequency tolerance / ⑥Operating temperature range
S*	±25 × 10^-6 / -20 °C to +70 °C
L	±50 × 10^-6 / -40 °C to +85 °C
Y	±50 × 10^-6 / -40 °C to +105 °C

* Please refer to Product number list on Full Data Sheet for available frequencies

(3) 产品型号和编码规则 (Blank section is decided by each detail specifications.)

SG2016CAN X1G004801xxxx00

SG3225CAN X1G005961xxxx15

SG5032CAN X1G004451xxxx00

SG7050CAN X1G004481xxxx00

SG-210STF X1G004171xxxx00

① ② ③ ④⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications

⑤ Packing（00：Recommended packing）

SG2016CAN:3000 pcs/Reel; SG3225CAN: 2000 pcs/Reel; SG5032CAN:1000 pcs/Reel; SG7050CAN: 1000 pcs/Reel; SG-210STF: 3000 pcs/Reel

(4) 产品型号 / 产品编码

(4.1) SG2016CAN产品编码

SG2016CAN Frequency [MHz]	SG2016CAN Frequency tolerance / Operating temperature
	DB	JG	JH
	±25 × 10^-6 -20 °C to +70 °C	±50 × 10^-6 -40 °C to +85 °C	±50 × 10^-6 -40 °C to +105 °C
4	—	X1G004801003000	X1G004801004900
8	—	X1G004801004500	X1G004801004600
10	—	X1G004801002900	X1G004801002700
12	X1G004801005000	X1G004801000700	X1G004801005100
12.288	X1G004801005200	X1G004801004400	X1G004801005300
14.7456	—	X1G004801005400	X1G004801005500
16	—	X1G004801001400	X1G004801005600
20	X1G004801005700	X1G004801005800	X1G004801001800
24	X1G004801005900	X1G004801000200	X1G004801004000
24.576	—	X1G004801006000	X1G004801003100
25	X1G004801002400	X1G004801001200	X1G004801003500
26	—	X1G004801000300	X1G004801003900
27	—	X1G004801006100	X1G004801002100
32	—	X1G004801006200	X1G004801006300
33.33	—	X1G004801006400	X1G004801006500
33.3333	—	X1G004801002600	X1G004801006600
40	—	X1G004801006700	X1G004801003600
48	X1G004801006800	X1G004801002000	X1G004801006900
50	X1G004801007000	X1G004801001300	X1G004801002800
72	X1G004801007100	X1G004801007200	X1G004801007300

(4.2) SG3225CAN产品编码

SG3225CAN Frequency [MHz]	SG3225CAN Frequency tolerance / Operating temperature
	DB	JG	JH
	±25 × 10^-6 -20 °C to +70 °C	±50 × 10^-6 -40 °C to +85 °C	±50 × 10^-6 -40 °C to +105 °C
4	—	X1G005961001115	X1G005961001215
8	—	X1G005961000415	X1G005961001315
10	—	X1G005961000515	X1G005961001415
12	X1G005961001515	X1G005961000615	X1G005961001516
12.288	X1G005961001715	X1G005961001815	X1G005961001915
14.7456	—	X1G005961002015	X1G005961002115
16	—	X1G005961002215	X1G005961002315
20	X1G005961002415	X1G005961000715	X1G005961002515
24	X1G005961002615	X1G005961000115	X1G005961002715
24.576	—	X1G005961000815	X1G005961002815
25	X1G005961002915	X1G005961000215	X1G005961003015
26	—	X1G005961003115	X1G005961003215
27	—	X1G005961003315	X1G005961003415
32	—	X1G005961003515	X1G005961003615
33.33	—	X1G005961003715	X1G005961003815
33.3333	—	X1G005961003915	X1G005961004015
40	—	X1G005961000915	X1G005961004115
48	X1G005961004215	X1G005961000315	X1G005961004315
50	X1G005961004415	X1G005961001015	X1G005961004515
72	X1G005961004615	X1G005961004715	X1G005961004815

(4.3) SG5032CAN产品编码

SG5032CAN Frequency [MHz]	SG5032CAN Frequency tolerance / Operating temperature
	DB	JG	JH
	±25 × 10^-6 -20 °C to +70 °C	±50 × 10^-6 -40 °C to +85 °C	±50 × 10^-6 -40 °C to +105 °C
4	—	X1G004451003400	X1G004451019600
8	—	X1G004451002100	X1G004451019700
10	—	X1G004451001300	X1G004451017800
12	X1G004451019800	X1G004451002800	X1G004451019900
12.288	X1G004451020000	X1G004451000100	X1G004451020100
14.7456	—	X1G004451001900	X1G004451020200
16	—	X1G004451000200	X1G004451020300
20	X1G004451020400	X1G004451001100	X1G004451020500
24	X1G004451017200	X1G004451000300	X1G004451020600
24.576	—	X1G004451002900	X1G004451020700
25	X1G004451009700	X1G004451000400	X1G004451020800
26	—	X1G004451008200	X1G004451020900
27	—	X1G004451000500	X1G004451021000
32	—	X1G004451001400	X1G004451021100
33.33	—	X1G004451021200	X1G004451021300
33.3333	—	X1G004451016700	X1G004451021400
40	—	X1G004451001200	X1G004451021500
48	X1G004451014900	X1G004451000700	X1G004451011200
50	X1G004451011500	X1G004451000800	X1G004451003600
72	X1G004451021600	X1G004451021700	X1G004451021800

(4.4) SG7050CAN产品编码

SG7050CAN Frequency [MHz]	SG7050CAN Frequency tolerance / Operating temperature
	DB	JG	JH
	±25 × 10^-6 -20 °C to +70 °C	±50 × 10^-6 -40 °C to +85 °C	±50 × 10^-6 -40 °C to +105 °C
4	—	X1G004481005100	X1G004481025200
8	—	X1G004481001400	X1G004481025300
10	—	X1G004481000500	X1G004481025400
12	X1G004481025500	X1G004481000600	X1G004481025600
12.288	X1G004481025700	X1G004481000100	X1G004481025800
14.7456	—	X1G004481002500	X1G004481025900
16	—	X1G004481000700	X1G004481026000
20	X1G004481012800	X1G004481000800	X1G004481026100
24	X1G004481002200	X1G004481000200	X1G004481026200
24.576	—	X1G004481001600	X1G004481026300
25	X1G004481011600	X1G004481000300	X1G004481026400
26	—	X1G004481003500	X1G004481026500
27	—	X1G004481000400	X1G004481026600
32	—	X1G004481000900	X1G004481026700
33.33	—	X1G004481017900	X1G004481026800
33.3333	—	X1G004481003300	X1G004481026900
40	—	X1G004481001500	X1G004481027000
48	X1G004481022600	X1G004481001100	X1G004481017100
50	X1G004481011200	X1G004481001200	X1G004481016000
72	X1G004481027200	X1G004481018300	X1G004481027300

(4.5) SG-210STF 产品编码

SG-210STF Frequency [MHz]	SG-210STF Frequency tolerance / Operating temperature
	S	L	Y
	±25 × 10^-6 -20 °C to +70 °C	±50 × 10^-6 -40 °C to +85 °C	±50 × 10^-6 -40 °C to +105 °C
4	—	X1G004171000900	X1G004171029900
8	—	X1G004171001500	X1G004171006900
10	—	X1G004171001600	X1G004171036500
12	X1G004171016300	X1G004171001800	X1G004171028000
12.288	X1G004171006100	X1G004171001900	X1G004171036600
14.7456	—	X1G004171002500	X1G004171036700
16	—	X1G004171002700	X1G004171015400
20	X1G004171021800	X1G004171002900	X1G004171023800
24	X1G004171015600	X1G004171003100	X1G004171019700
24.576	—	X1G004171003200	X1G004171036800
25	X1G004171007700	X1G004171003300	X1G004171005900
26	—	X1G004171003400	X1G004171024400
27	—	X1G004171003500	X1G004171025000
32	—	X1G004171004000	X1G004171012700
33.33	—	X1G004171011900	X1G004171030000
33.3333	—	X1G004171012000	X1G004171007500
40	—	X1G004171004500	X1G004171020600
48	X1G004171007800	X1G004171004600	X1G004171036900
50	X1G004171007900	X1G004171004700	X1G004171012600
72	X1G004171037000	X1G004171012400	X1G004171037100

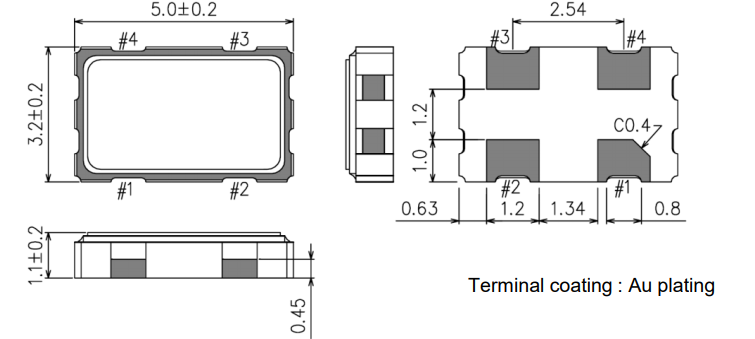

External dimensions (Unit: mm)

SG5032CAN External Dimensions.png

为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.01µF to 0.1µF去耦电容。

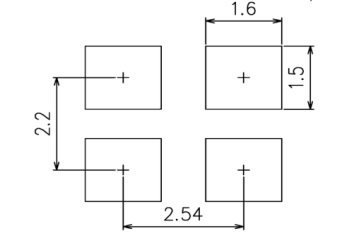

Footprint (Recommended) (Unit: mm)

SG5032CAN footprint.png
