汽车用有源晶振，输出频率: 19种标准频率
输出: CMOS，电压: 1.80 V to 3.3 V，功能: Standby (/ST)
工作温度: -40 °C to +105 °C
符合AEC-Q200

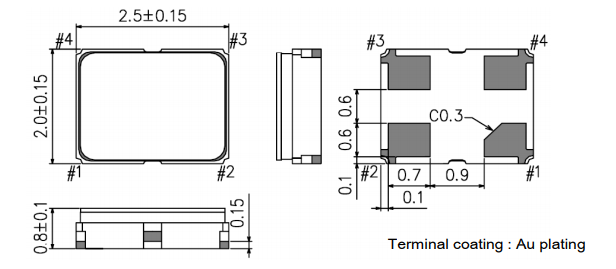

外部尺寸: 2.0×1.6 mm（SG2016CAA）；2.5×2.0 mm（SG2520CAA）
SG2520CAA (AEC-Q200): 爱普生 (EPSON)车载用有源晶振
SG2520CAA常用频率列表如下：
规格型号 | 产品编码 | MOQ (PCS) |
SG2520CAA 8.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 10.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 11.289600MHz TJHA | X1G005951001400 | 3000 |
SG2520CAA 12.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 12.288000MHz TJHA | X1G005951000600 | 3000 |
SG2520CAA 14.745600MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 16.666600MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 20.000000MHz TJHA | X1G005951001000 | 3000 |
SG2520CAA 22.579200MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 24.000000MHz TJHA | X1G005951001300 | 3000 |
SG2520CAA 24.576000MHz TJHA | X1G005951000700 | 3000 |
SG2520CAA 25.000000MHz TJHA | X1G005951000900 | 3000 |
SG2520CAA 27.000000MHz TJHA | X1G005951000400 | 3000 |
SG2520CAA 33.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 33.333300MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 40.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 48.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 50.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 54.000000MHz TJHA | X1G005951xxxx00 | 3000 |
SG2520CAA 8.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 10.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 11.289600MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 12.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 12.288000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 14.745600MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 16.666600MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 20.000000MHz TLJA | X1G005951001100 | 3000 |
SG2520CAA 22.579200MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 24.000000MHz TLJA | X1G005951001200 | 3000 |
SG2520CAA 24.576000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 25.000000MHz TLJA | X1G005951000800 | 3000 |
SG2520CAA 27.000000MHz TLJA | X1G005951000500 | 3000 |
SG2520CAA 33.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 33.333300MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 40.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 48.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 50.000000MHz TLJA | X1G005951xxxx00 | 3000 |
SG2520CAA 54.000000MHz TLJA | X1G005951xxxx00 | 3000 |
爱普生(EPSON)有源晶振: SG2016CAA、SG2520CAA
l 有源晶振(SPXO)
l 输出频率: 19种标准频率
l 输出: CMOS
l 电压: 1.80 V to 3.3 V Typ.
l 功能: Standby (/ST)
l 工作温度: -40 °C to +125 °C
l 符合AEC-Q200
l 外部尺寸:
2.0×1.6 mm（SG2016CAA）
2.5×2.0 mm（SG2520CAA）
● ADAS（高级驾驶员辅助系统）：摄像机、激光雷达（光探测和测距）、雷达、网络
● 汽车信息娱乐系统、音频、时钟、仪表、仪表盘、车身控制（BCM）
爱普生(Epson)的SG2016CAA是具有CMOS输出的简单封装晶体振荡器（SPXO）。
该SPXO是汽车和高可靠性应用的理想选择，符合AEC-Q200标准。
该SPXO具有低电流消耗、1.6 V至3.63 V的宽工作电压和-40°C至125°C的宽工作温度范围。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 / 备注 | ||||||||||||||
输出频率范围 | f0 | 8 MHz, 10 MHz, 11.2896 MHz, 12 MHz,12.288 MHz,14.7456 MHz, 16.6666 MHz, 20 MHz, 22.5792 MHz, 24 MHz, 24.576 MHz, 25 MHz, 27 MHz, 33 MHz, 33.3333 MHz, 40 MHz, 48 MHz, 50 MHz, 54 MHz | |||||||||||||||
电源电压 | VCC | T: 1.60 to 3.63 V | |||||||||||||||
储存温度 | T_stg | -55°C to +125°C | Storage as single product. | ||||||||||||||
工作温度 | T_use | H: -40 °C to +105 °C J: -40 °C to +125 °C | |||||||||||||||
频率稳定度 | f_tol | J: ±50 × 10-6 L: ±100 × 10-6 | |||||||||||||||
功耗 | ICC | VCC=1.8V ± 10% | VCC=2.5V ± 10% | VCC=3.3V ± 10% | |||||||||||||
2.0mA Max. | 2.1mA Max. | 2.3mA Max. | No load condition, 8MHz £ fo £ 20 MHz | ||||||||||||||
2.3mA Max. | 2.5mA Max. | 2.7mA Max. | No load condition, 20MHz < fo £ 40 MHz | ||||||||||||||
2.6mA Max. | 2.9mA Max. | 3.1mA Max. | No load condition, 40MHz < fo £ 54 MHz | ||||||||||||||
待机电流 | I_std | 2.7μA Max. | 3.1μA Max. | 3.3μA Max. | /ST = GND | ||||||||||||
占空比 | SYM | 45% to 55% | 50 % VCC level, L_CMOS £ 15 pF | ||||||||||||||
输出电压 | VOH | 90% VCC Min. |
| ||||||||||||||
VOL | 10% VCC Max. | ||||||||||||||||
VOH-2 | VCC - 0.4 V Min. |
| |||||||||||||||
VOL-2 | 0.4 V Max. | ||||||||||||||||
输出负载条件 | L_CMOS | 15pF Max. | |||||||||||||||
输入电压 | VIH | 80% VCC Min. | /ST terminal | ||||||||||||||
VIL | 20% VCC Max. | ||||||||||||||||
上升/下降时间 | tr / tf | 3.0 ns Max. 3.5 ns Max. (@1.8 V±10 %) | 20% VCC to 80% VCC level, | ||||||||||||||
启动时间 | t_str | 5 ms Max. | T = 0 at 90 % VCC | ||||||||||||||
频率老化 | f_aging | ±3 × 10-6 / year Max. | +25 °C, First year | ||||||||||||||
Pin | Name | I/O type | Function | |||||||||
1 | /ST | Input | /ST terminal
| |||||||||
2 | GND | Power | Ground | |||||||||
3 | OUT | Output | Clock output | |||||||||
4 | VCC | Power | Power supply |
SG2016CAA等系列晶振产品名称参数：
(1) 产品名称 (标准形式)
SG2016CAA 25.000000MHZ T J H A
SG2520CAA 25.000000MHZ T J H A
① ② ③ ④⑤⑥⑦
① Model ② Output(C: CMOS) ③ Frequency ④ Supply voltage
⑤ Frequency tolerance ⑥Operating temperature range
⑦ Internal identification code("A" is default)
④ Supply voltage *See Figure 1 | |
T | 1.8 V to 3.3 V Typ. |
K | 2.5 V to 3.3 V Typ. |
⑤Frequency tolerance / ⑥Operating temperature range | |
JH | ±50 × 10-6 / -40 °C to +105 °C |
LJ | ±100 × 10-6 / -40 °C to +125 °C |
* Please refer to Product number list on Full Data Sheet for available frequencies
(2) 产品型号和编码规则 (Blank section is decided by each detail specifications.)
SG2016CAA X1G005341xxxx00
SG2520CAA X1G005951xxxx16
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing）
SG2016CAA: 3000 pcs/Reel; SG2520CAA: 3000 pcs/Reel
(4) 产品型号和产品编码
(4.1) SG2016CAA 编码
SG2016CAA Frequency [MHz] | SG2016CAA Frequency tolerance / Operating temperature | |
JH | LJ | |
±50 × 10-6 -40 °C to +105 °C | ±100 × 10-6 -40 °C to +125 °C | |
8 | X1G005341xxxx00 | X1G005341xxxx00 |
10 | X1G005341xxxx00 | X1G005341xxxx00 |
11.2896 | X1G005341006100 | X1G005341xxxx00 |
12 | X1G005341xxxx00 | X1G005341xxxx00 |
12.288 | X1G005341001700 | X1G005341xxxx00 |
14.7456 | X1G005341xxxx00 | X1G005341xxxx00 |
16.6666 | X1G005341xxxx00 | X1G005341xxxx00 |
20 | X1G005341002400 | X1G005341006200 |
22.5792 | X1G005341xxxx00 | X1G005341xxxx00 |
24 | X1G005341001100 | X1G005341002900 |
24.576 | X1G005341002700 | X1G005341xxxx00 |
25 | X1G005341003500 | X1G005341000900 |
27 | X1G005341000200 | X1G005341001300 |
33 | X1G005341xxxx00 | X1G005341xxxx00 |
33.3333 | X1G005341xxxx00 | X1G005341xxxx00 |
40 | X1G005341xxxx00 | X1G005341xxxx00 |
48 | X1G005341xxxx00 | X1G005341xxxx00 |
50 | X1G005341xxxx00 | X1G005341xxxx00 |
54 | X1G005341xxxx00 | X1G005341xxxx00 |
(4.2) SG2520CAA 编码
SG2520CAA Frequency [MHz] | SG2520CAA Frequency tolerance / Operating temperature | |
JH | LJ | |
±50 × 10-6 -40 °C to +105 °C | ±100 × 10-6 -40 °C to +125 °C | |
8 | X1G005951xxxx00 | X1G005951xxxx00 |
10 | X1G005951xxxx00 | X1G005951xxxx00 |
11.2896 | X1G005951001400 | X1G005951xxxx00 |
12 | X1G005951xxxx00 | X1G005951xxxx00 |
12.288 | X1G005951000600 | X1G005951xxxx00 |
14.7456 | X1G005951xxxx00 | X1G005951xxxx00 |
16.6666 | X1G005951xxxx00 | X1G005951xxxx00 |
20 | X1G005951001000 | X1G005951001100 |
22.5792 | X1G005951xxxx00 | X1G005951xxxx00 |
24 | X1G005951001300 | X1G005951001200 |
24.576 | X1G005951000700 | X1G005951xxxx00 |
25 | X1G005951000900 | X1G005951000800 |
27 | X1G005951000400 | X1G005951000500 |
33 | X1G005951xxxx00 | X1G005951xxxx00 |
33.3333 | X1G005951xxxx00 | X1G005951xxxx00 |
40 | X1G005951xxxx00 | X1G005951xxxx00 |
48 | X1G005951xxxx00 | X1G005951xxxx00 |
50 | X1G005951xxxx00 | X1G005951xxxx00 |
54 | X1G005951xxxx00 | X1G005951xxxx00 |
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.01µF to 0.1µF去耦电容。
