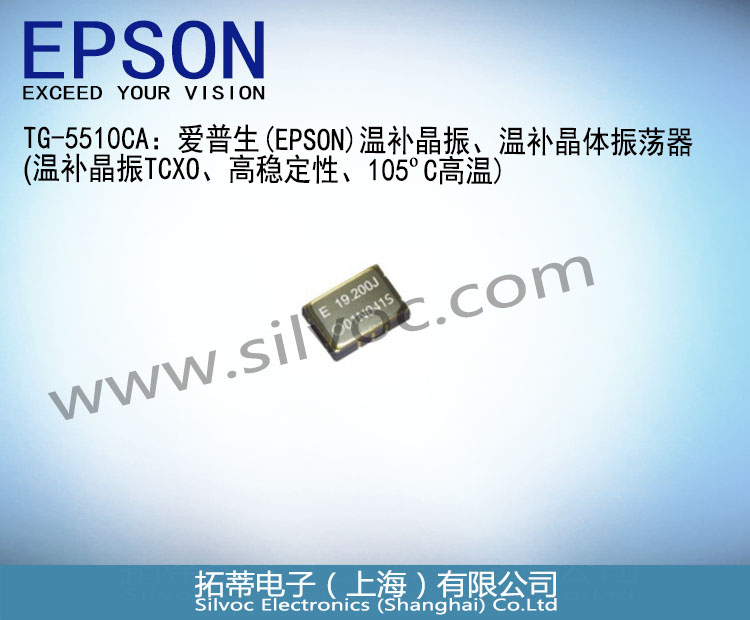

TG-5510CA：爱普生(EPSON) 温补晶振TCXO高稳定性、105ºC高温

频率范围：10MHz to 54MHz；输出波形：CMOS or Clipped Sine Wave
电源电压：3.3 V Typ.；频率/温度特性：±0.28×10^-6 Max.（-40°C to +85°C）
频率老化：±3.0×10^-6Max. / 20 years（符合Stratum3）
频率斜率：±0.2×10^-6/°C Max.温度；自由运行精度：±4.6×10^-6 Max. / 20年（for Stratum3）
功能：+105°C高温（可选），高稳定性；外部尺寸：7.0×5.0×1.5 mm（10pins）
应用领域：网络同步、BTS、微波、Stratum3、SyncE、IEEE1588

规格参数

TG-5510CA：爱普生(EPSON) 温补晶振TCXO高稳定性、105ºC高温

TG-5510CA常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
TG-5510CA-98N 10.000000MHz	X1G006001009814	1000
TG-5510CA-94N 12.800000MHz	X1G006001009414	1000
TG-5510CA-85N 15.360000MHz	X1G006001008514	1000
TG-5510CA-81N 19.200000MHz	X1G006001008114	1000
TG-5510CA-91N 19.440000MHz	X1G006001009114	1000
TG-5510CA-95N 20.000000MHz	X1G006001009514	1000
TG-5510CA-79N 24.000000MHz	X1G006001007914	1000
TG-5510CA-77N 24.576000MHz	X1G006001007714	1000
TG-5510CA-90N 25.000000MHz	X1G006001009014	1000
TG-5510CA-92N 25.600000MHz	X1G006001009214	1000
TG-5510CA-76N 30.720000MHz	X1G006001007614	1000
TG-5510CA-82N 38.400000MHz	X1G006001008214	1000
TG-5510CA-96N 38.880000MHz	X1G006001009614	1000
TG-5510CA-93N 40.000000MHz	X1G006001009314	1000
TG-5510CA-80N 48.000000MHz	X1G006001008014	1000
TG-5510CA-78N 49.152000MHz	X1G006001007814	1000
TG-5510CA-97N 50.000000MHz	X1G006001009714	1000
TG-5510CA-73N 52.000000MHz	X1G006001007314	1000
TG-5510CA-74N 54.000000MHz	X1G006001007414	1000
TG-5510CA-41N 10.000000MHz	X1G006001004114	1000
TG-5510CA-42N 19.200000MHz	X1G006001004214	1000
TG-5510CA-43N 20.000000MHz	X1G006001004314	1000
TG-5510CA-44N 24.576000MHz	X1G006001004414	1000
TG-5510CA-45N 25.000000MHz	X1G006001004514	1000
TG-5510CA-46N 38.880000MHz	X1G006001004614	1000
TG-5510CA-47N 40.000000MHz	X1G006001004714	1000
TG-5510CA-48N 50.000000MHz	X1G006001004814	1000

特征

EPSON 温补晶振TCXO: TG-5510CA

• 频率范围：10MHz to 54MHz

• 输出波形：CMOS or Clipped sine wave

• 电源电压：3.3 V Typ.

• 频率/温度特性：±0.28×10^-6 Max.（-40°C to +85°C）

• 频率斜率：±0.2×10^-6/ºC Max.温度

• 频率老化：±3.0×10^-6Max./20年（符合Stratum3）

• 自由运行精度：±4.6×10^-6 Max. / 20年（for Stratum3）

• 外部尺寸：7.0×5.0×1.5mm（10pins）

• 应用领域

网络同步、BTS、微波、Stratum3、SyncE、IEEE1588

• 功能

+105ºC高温，高稳定性

概述

TG-5510CA是一种具有CMOS或削峰正弦输出（Clipped Sine output）的高稳定性TCXO

• 需要温度为+85ºC的5G基站和边缘计算，需要室外安装、小型化和无风扇操作

• 与其他TCXO相比，它提供了多种改进，如低温斜率和相位噪声

• 符合GR-1244-CORE Stratum3和G.8262.1、G.8273.2（A级、B级）

• 注意：本产品没有电压控制（Vc）功能

规格 (特征)

项目	符号	CMOS	Clipped sine wave		条件 / 备注
输出频率范围	f₀	10 MHz to 54 MHz			Please contact us about available frequencies.
电源电压	V_CC	3.3 V ± 5 %
储存温度	T_stg	-40°C to +105°C			Storage as single product
工作温度	T_use	-40°C to +85°C (-40°C to +105°C)			Standard (Option)
a) 频率稳定度	f_tol	± 1.0 × 10^-6Max.			After reflow, +25 °C
b) 频率/温度特性	f_o-T_C	±0.28 × 10^-6 Max. (±0.25 × 10^-6 Max.)			Standard (Option)
c) 频率/负载系数	f_o-Load	± 0.1 × 10^-6 Max.			Load ± 10 %
d) 频率/电压系数	f_o-V_CC	± 0.1 × 10^-6 Max.			V_CC ± 5 %
e) 频率老化	f_age	± 0.5 × 10^-6 Max.			+25°C , First year
		± 3.0 × 10^-6 Max.			+25°C , 20 years
漂移产生(MTIE, TDEV)		符合 GR-1244CORE, ITU-T G.8262.1, G.8273.2
滞留稳定性（自由运行精度）	f_hos	± 4.6× 10^-6 Max. / 20 years			This includes Item a), b), c), d) and e)
功耗	I_CC	7.0 mA Max.		6.0 mA Max.	10 MHz ≦ f₀≦ 26 MHz
		9.0 mA Max.			26 MHz < f₀≦ 40 MHz
		10.0 mA Max.			26 MHz < f₀≦ 54 MHz
占空比	SYM	45 % to 55 %		-	GND level (DC cut)
输出电压	V_OH	90 % V_CC Min.		-
	V_OL	10 % V_CC Max.		-
	V_PP	-		0.8 V Min.	Peak to Peak
上升/下降时间	tr/tf	8.0 ns Max.		-	10 % V_CC to 90 % V_CC level Load : 15 pF
启动时间	t_str	5.0 ms Max.			T = 0 at 90 % V_CC
输出负载条件	Load	15 pF	10 kΩ//10 pF
输入电压	V_IH	70% V_CC Min.			OE terminal (Enable voltage)
	V_IL	30% V_CC Max.			OE terminal (Disable voltage)

*注：需要了解本规范中未列出的要求，请联系代理-拓蒂电子。

产品命名规则

TG-5510CA温补晶振产品名称参数：

(1) 产品名称 (标准形式)

TG-5510CA-*** 38.880000MHz

① ② ③ ④

① Model ② Package type(CA: 7.0 × 5.0 × 1.5 mm)

③ Spec segment (Please contact us)

④ Frequency

Selectable specs.: Output (CMOS, Clipped sine wave),

Frequency/temperature (±0.28 × 10-6 Max., ±0.25 × 10-6 Max.)

Operating temperature (-40 °C to +85 °C, -40 °C to +105 °C),

OE function (Active High)

(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)

TG-5510CA X1G006001xxxx14

TG-5511CA X1G006011xxxx14

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications ⑤ Packing（Recommended packing 14：1K pcs/Reel）

Product name	Frequency [MHz]	Product number	Selectable specs
TG-5510CA-98N	10.000	X1G006001009814	Output: CMOS Frequency/temperature: ±0.28 × 10^-6 Max. Operating temperature: -40 °C to +85 °C OE function: Active High
TG-5510CA-94N	12.800	X1G006001009414
TG-5510CA-85N	15.360	X1G006001008514
TG-5510CA-81N	19.200	X1G006001008114
TG-5510CA-91N	19.440	X1G006001009114
TG-5510CA-95N	20.000	X1G006001009514
TG-5510CA-79N	24.000	X1G006001007914
TG-5510CA-77N	24.576	X1G006001007714
TG-5510CA-90N	25.000	X1G006001009014
TG-5510CA-92N	25.600	X1G006001009214
TG-5510CA-76N	30.720	X1G006001007614
TG-5510CA-82N	38.400	X1G006001008214
TG-5510CA-96N	38.880	X1G006001009614
TG-5510CA-93N	40.000	X1G006001009314
TG-5510CA-80N	48.000	X1G006001008014
TG-5510CA-78N	49.152	X1G006001007814
TG-5510CA-97N	50.000	X1G006001009714
TG-5510CA-73N	52.000	X1G006001xxxx14
TG-5510CA-74N	54.000	X1G006001xxxx14
TG-5510CA-41N	10.000	X1G006001004114	Output: CMOS Frequency/temperature: ±0.28 × 10^-6 Max. Operating temperature: -40 °C to +105 °C OE function: Active High
TG-5510CA-42N	19.200	X1G006001004214
TG-5510CA-43N	20.000	X1G006001004314
TG-5510CA-44N	24.576	X1G006001004414
TG-5510CA-45N	25.000	X1G006001004514
TG-5510CA-46N	38.880	X1G006001004614
TG-5510CA-47N	40.000	X1G006001004714
TG-5510CA-48N	50.000	X1G006001004814

*有关产品编号的详细信息，请联系代理-拓蒂电子。

有关其他频率和规格，请联系代理-拓蒂电子。

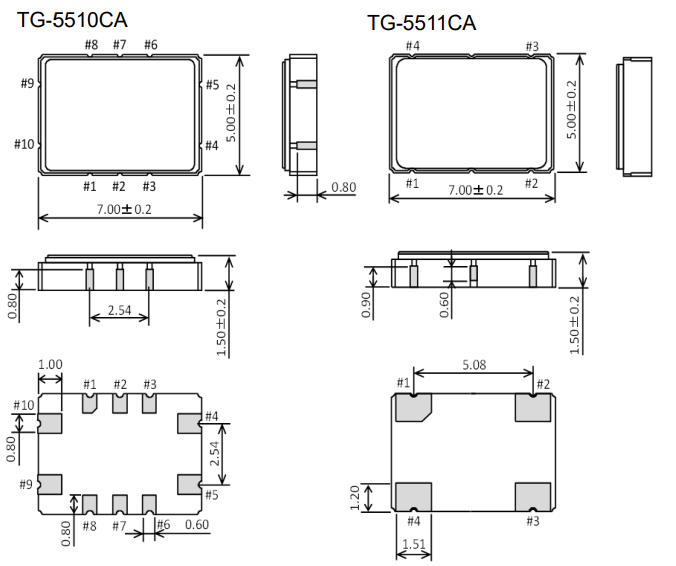

External dimensions (Unit: mm)

TG-5510 5511CA External Dimensions.png

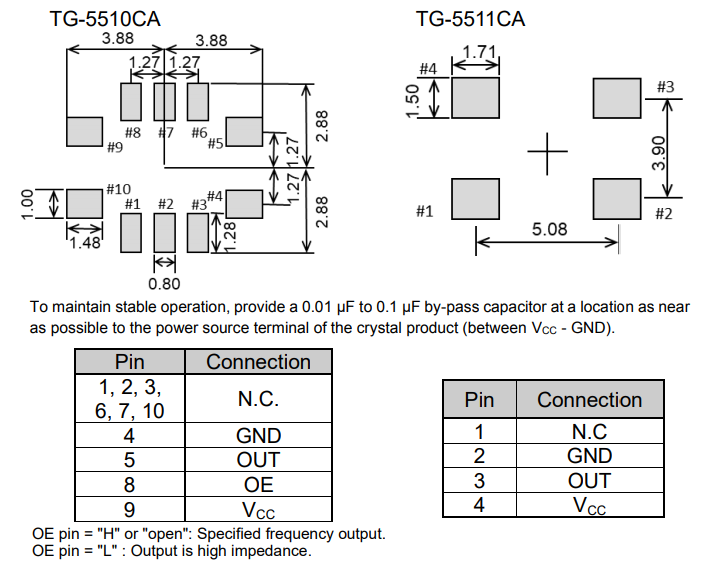

Footprint (Recommended) (Unit: mm)

TG-5510 5511CA footprint.png

为保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1μF旁路电容。
