TG5032SGN：爱普生(EPSON) 温补晶振、TCXO / VC-TCXO、超高稳定性10pins端子型

频率范围：10MHz to 40MHz；输出波形：Clipped sine wave
电源电压：3.3 V Typ.；频率/温度特性：±0.1×10^-6 Max.(-40°C to +85°C)
频率老化：±3.0×10^-6Max. / 20 years
外部尺寸：5.0×3.2×1.45 mm（10 pins）
功能：超高稳定性，宽温度范围
应用领域：小基站，Stratum3，SyncE，IEEE1588

规格参数

TG5032SGN：爱普生(EPSON) 温补晶振、TCXO / VC-TCXO、超高稳定性10pins端子型

TG5032SGN常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
TG5032SGN 10.000000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 10.000000MHz CAGHNA	X1G005241xxxx00	1000
TG5032SGN 10.000000MHz CAGHGA	X1G005241xxxx00	1000
TG5032SGN 12.800000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 20.000000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 24.576000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 25.000000MHz CAGHDA	X1G005241000300	1000
TG5032SGN 25.000000MHz CMGHNA	X1G005241xxxx00	1000
TG5032SGN 25.000000MHz CAGHNA	X1G005241xxxx00	1000
TG5032SGN 25.000000MHz CAGNDA	X1G005241xxxx00	1000
TG5032SGN 25.600000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 26.000000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 30.720000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 30.720000MHz CAGHNA	X1G005241xxxx00	1000
TG5032SGN 30.720000MHz CAGHKB	X1G005241xxxx00	1000
TG5032SGN 38.400000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 38.800000MHz CAGHDA	X1G005241xxxx00	1000
TG5032SGN 40.000000MHz CAGHDA	X1G005241000400	1000
TG5032SGN 40.000000MHz CAGHJA	X1G005241xxxx00	1000
TG5032SGN 19.200000MHz FHGHDA	X1G005241001000	1000
TG5032SGN 19.200000MHz CAGHDA	X1G005241000200	1000
TG5032SGN 19.200000MHz FAGHDA	X1G005241001200	1000

特征

EPSON 温补晶振TCXO: TG5032SGN

• 频率范围：10MHz to 40MHz

• 输出波形：Clipped sine wave

• 电源电压：3.3 V Typ.

• 频率/温度特性：±0.1×10^-6 Max.(-40°C to +85°C)

• 频率老化：±3.0×10^-6Max. / 20 years

• 外部尺寸：5.0×3.2×1.45 mm（10 pins）

• 应用领域：

小基站，Stratum3，SyncE，IEEE1588

•功能：

超高稳定性，宽温度范围

概述

TG5032SGN是Clipped sine wave输出的超高稳定性温度补偿晶体振荡器，并使用晶体单元的基本振荡产生削波正弦波输出。这实现了频率为10至40MHz的低相位噪声，并且适用于包括小单元的参考时钟。这使产品符合各种标准，包括GR-1244-CORE Stratum3、G.8262.1、G.8273.2（A级、B级）。

规格 (特征)

项目	符号	TG5032SGN (Clipped sine wave)		条件 / 备注
		VC-TCXO	TCXO
输出频率范围	f₀	10 MHz to 40 MHz
		10, 12.8, 19.2, 20, 24.576, 25, 25.6, 26, 30.72, 38.4, 38.88, 40 MHz		Standard frequency
电源电压	V_CC	C: 3.3 V ± 5 % ( Standard ) (Supply voltage range :2.375 V to 3.63 V)
储存温度	T_stg	-40°C to +90°C		Storage as single product
工作温度	T_use	G : -40°C to +85°C
a) 频率稳定度	f_tol	± 1.0 × 10^-6Max.		After reflow, +25 °C
b) 频率/温度特性	f_o-TC	A: ±0.1 × 10^-6 Max. / G : -40°C to +85°C H: ±0.25 × 10^-6 Max. / G : -40°C to +85°C B: ±0.28 × 10^-6 Max. / G : -40°C to +85°C		Reference to (fmax + fmin) / 2
c) 频率/负载系数	f_o-Load	± 0.1 × 10^-6 Max.		Load ± 10 %
d) 频率/电压系数	f_o-V_CC	± 0.1 × 10^-6 Max.		V_CC ± 5 %
e) 频率老化	f_age	± 0.5 × 10^-6 Max.		+25°C , First year
		± 3.0 × 10^-6 Max.		+25°C , 20 years
滞留稳定性（恒温）	-	± 0.01 × 10^-6 Max. (+25°C, 24 hours)		After 10 days of continuous operation.
		± 0.04 × 10^-6 Max. (+25°C, 24 hours)		After 48 hours of continuous operation.
漂移产生 ( MTIE, TDEV )	-	-		Compliant with GR-1244CORE , ITU-T G.8262
自由运行精度	-	± 4.6 × 10^-6 Max.		This includes Item a), b), c), d) and e)
功耗	I_CC	5.0 mA Max.		10 MHz ≦ f₀≦ 26 MHz
输入阻抗	Rin	100 kΩ Min.	-	V_C- GND (DC)
频率控制范围	f_cont	± 5 × 10^-6to ± 10 ×10^-6	-	J,D : V_C= 1.5 V ± 1.0 V at V_CC = 3.3V K,E : V_C= 1.65 V ± 1.0 V at V_CC = 3.3V
频率变化极性	-	Positive polarity	-
占空比	SYM	-
输出电压	V_OH	-
	V_OL	-
输出电压	V_PP	0.8 V Min.		Peak to Peak
上升/下降时间	tr/tf	8.0 ns Max.		10 % V_CC to 90 % V_CC level Load : 15 pF
启动时间	t_str	5.0 ms Max. (Non-Filter: Standard) 2.0 sec. Max. (Filter: Option)		T = 0 at 90 % V_CC
输出负载条件	Load	10 kΩ/ 10 pF
输入电压	V_IH	70 % V_CC Min.		OE terminal (Enable voltage)
	V_IL	30 % V_CC Max.		OE terminal (Disable voltage)

产品命名规则

TG5032SGN温补晶振产品名称参数：

(1) 产品名称 (标准形式)

TG5032CGN 30.720000MHz C A G H D A

TG5032SGN 30.720000MHz C A G H D A

① ② ③ ④ ⑤ ⑥⑦⑧⑨

① Model ② Output ((C: CMOS, S: Clipped sine wave) ③ Frequency

④ Supply voltage (C: 3.3V Typ.)

⑤ Frequency / temperature characteristics (A: ±0.1× 10^-6 Max., H: ±0.25× 10^-6 Max., B: ±0.28× 10^-6 Max.,)

⑥ Operating temperature (G: -40 °C to +85 °C) ⑦ OE function (H: Active High)

⑧ V_C function(Refer to symbol table, A: VC =any)

⑨ Internal identification code ("A" is default)

⑧ V_C function [Vc] (symbol table)
Voltage [V]	Non	1.5	1.65	Any
Non Filter	N	D	E	A
Filter ON	G	J	K	F

(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)

TG5032CGN X1G005231xxxx00

TG5032SGN X1G005241xxxx00

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications ⑤ Packing（Recommended packing 00：1K pcs/Reel）

Frequency	Part number
[MHz]	TG5032CGN (Size: 5.0 x 3.2)	TG5032SGN (Size: 5.0 x 3.2)
	V_CC = 3.3 V	V_CC = 3.3 V
	Suffix: CAGHDA	Suffix: SAGHDA
10	X1G005231xxxx00	X1G005241xxxx00
12.8	X1G005231xxxx00	X1G005241xxxx00
19.2	X1G005231xxxx00	X1G005241xxxx00
20	X1G005231xxxx00	X1G005241xxxx00
24.576	X1G005231xxxx00	X1G005241xxxx00
25	X1G005231xxxx00	X1G005241xxxx00
25.6	X1G005231xxxx00	X1G005241xxxx00
30.72	X1G005231xxxx00	X1G005241xxxx00
38.4	X1G005231xxxx00	X1G005241xxxx00
38.88	X1G005231xxxx00	X1G005241xxxx00
40	X1G005231xxxx00	X1G005241xxxx00

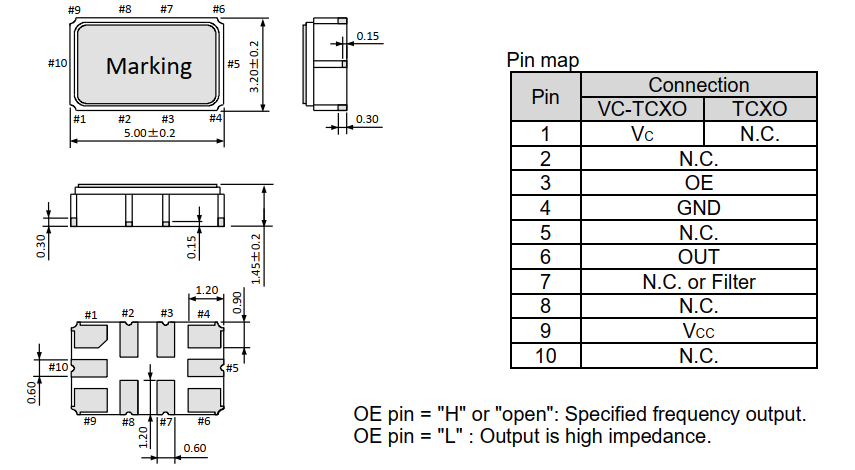

External dimensions (Unit: mm)

TG5032SGN External dimensions1.png

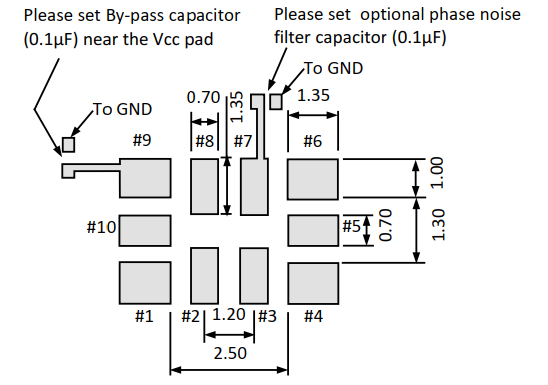

Footprint (Recommended) (Unit: mm)

TG5032SGN footprint1.png

为保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1μF旁路电容。
