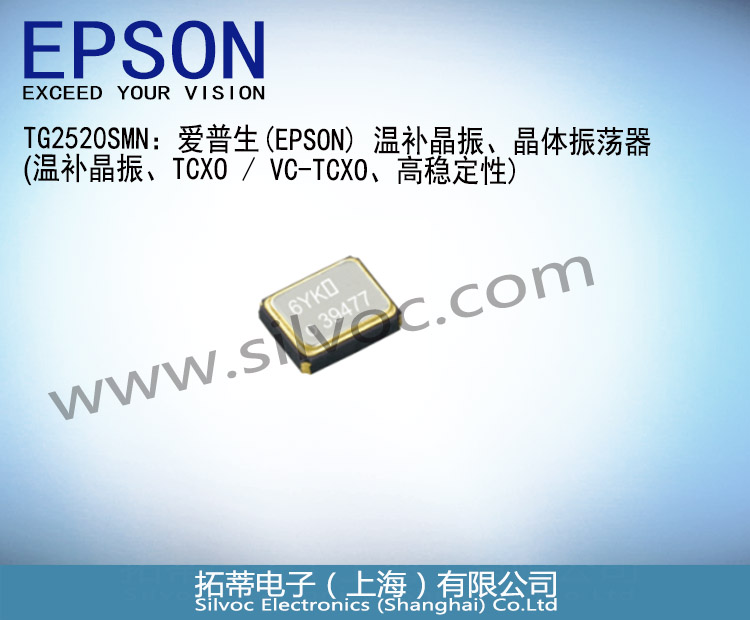

TG2520SMN：爱普生(EPSON) 温补晶振、TCXO / VC-TCXO、高稳定性

输出频率：10 MHz to 55 MHz
电源电压：1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. /3.3 V Typ.
频率、温度特性：±0.5×10^-6 Max.（-40°C to +85°C）；±2.0×10^-6 Max.（-40°C to +85°C）
外部尺寸：2.5 × 2.0 × 0.8 mm；特征：低噪音
应用领域：GPS、射频、无线通信设备（LTE、WiMAX、Wi-Fi、W-LAN、IoT等）

规格参数

TG2520SMN：爱普生(EPSON) 温补晶振、TCXO / VC-TCXO、高稳定性

TG2520SMN常用频率列表如下：

规格型号	产品编码	MOQ (PCS)
TG2520SMN 16.368000MHz ECGNNM	X1G005421020100	5000
TG2520SMN 16.369000MHz ECGNNM	X1G005421020200	5000
TG2520SMN 19.200000MHz ECGNNM	X1G005421020300	5000
TG2520SMN 26.000000MHz ECGNNM	X1G005421020400	5000
TG2520SMN 32.000000MHz ECGNNM	X1G005421020500	5000
TG2520SMN 38.400000MHz ECGNNM	X1G005421020600	5000
TG2520SMN 40.000000MHz ECGNNM	X1G005421020700	5000
TG2520SMN 16.000000MHz ECGNNM	X1G005421020800	5000
TG2520SMN 20.000000MHz ECGNNM	X1G005421021100	5000
TG2520SMN 24.000000MHz ECGNNM	X1G005421021200	5000
TG2520SMN 25.000000MHz ECGNNM	X1G005421021300	5000
TG2520SMN 27.000000MHz ECGNNM	X1G005421021400	5000
TG2520SMN 30.000000MHz ECGNNM	X1G005421021500	5000
TG2520SMN 48.000000MHz ECGNNM	X1G005421021600	5000
TG2520SMN 52.000000MHz ECGNNM	X1G005421022000	5000
TG2520SMN 27.600000MHz ECGNNM	X1G005421022100	5000
TG2520SMN 50.000000MHz ECGNNM	X1G005421022200	5000
TG2520SMN 16.368000MHz MCGNNM	X1G005421030100	5000
TG2520SMN 16.369000MHz MCGNNM	X1G005421030200	5000
TG2520SMN 19.200000MHz MCGNNM	X1G005421030300	5000
TG2520SMN 26.000000MHz MCGNNM	X1G005421030400	5000
TG2520SMN 32.000000MHz MCGNNM	X1G005421030500	5000
TG2520SMN 38.400000MHz MCGNNM	X1G005421030600	5000
TG2520SMN 40.000000MHz MCGNNM	X1G005421030700	5000
TG2520SMN 16.000000MHz MCGNNM	X1G005421030800	5000
TG2520SMN 20.000000MHz MCGNNM	X1G005421031100	5000
TG2520SMN 24.000000MHz MCGNNM	X1G005421031200	5000
TG2520SMN 25.000000MHz MCGNNM	X1G005421031300	5000
TG2520SMN 27.000000MHz MCGNNM	X1G005421031400	5000
TG2520SMN 30.000000MHz MCGNNM	X1G005421031500	5000
TG2520SMN 48.000000MHz MCGNNM	X1G005421031600	5000
TG2520SMN 52.000000MHz MCGNNM	X1G005421032000	5000
TG2520SMN 27.600000MHz MCGNNM	X1G005421032100	5000
TG2520SMN 50.000000MHz MCGNNM	X1G005421032200	5000

特征

EPSON 温补晶振TCXO:TG2016SMN、TG2520SMN

• 输出频率：10 MHz至55 MHz

• 电源电压：1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. /3.3 V Typ.

• 频率、温度特性：

±0.5×10^-6Max.（-40°C to +85°C）

±2.0×10^-6 Max.（-40°C to +85°C）

• 外部尺寸：2.5 × 2.0 × 0.8 mm

• 应用领域：

GPS，射频

无线通信设备（LTE、WiMAX、Wi-Fi、W-LAN、IoT等）

• 特征：低噪音

概述

TG2016SMN、TG2520SMN是使用爱普生开发和制造的IC和MHz基本晶体的高稳定性和低相位噪声温补晶振TCXO。相位噪声是爱普生紧凑型TCXO产品阵容中较低的，使其成为GNSS和其他无线通信设备的理想参考时钟。

规格 (特征)

项目	符号	规格		条件 / 备注
		VC-TCXO	TCXO
输出频率范围	f₀	10 MHz to 55MHz		Please contact us except for standard frequency
		19.2MHz , 26MHz , 38.4MHz		Standard frequency
电源电压	V_CC	1.8V ±0.1V / 2.8V ±5% / 3.0V ±5% / 3.3V ±5%		Supply voltage range:1.7V to 3.63V
储存温度	T_stg	-40°C to +90°C		Storage as single product.
工作温度	T_use	G: -40°C to +85°C
频率稳定度	f_tol	±1.5 ×10^-6 Max.		After reflow,+25°C
频率/温度特性	f₀-T_C	C: ±0.5 × 10^-6 Max. / G: -40°C to +85°C F: ±2.0 × 10^-6 Max. / G: -40°C to +85°C
频率/负载系数	f₀-Load	±0.1 × 10^-6 Max.		10kΩ // 10pF ±10%
频率/电压系数	f₀-V_CC	±0.1 × 10^-6 Max.		V_CC± 5%
频率老化	f_age	±0.5 × 10^-6 Max.		+25°C,First year, 10 MHz 12 MHz ≦ f₀≦ 20 MHz 24 MHz ≦ f₀≦ 40 MHz
		±1.5 × 10^-6 Max.		+25°C,First year, 10 MHz < f₀< 12 MHz 20 MHz < f₀< 24 MHz 40 MHz < f₀≦ 55 MHz
功耗	I_CC	1.5 mA Max.		10 MHz ≦ f₀≦ 26 MHz
		1.8 mA Max.		26 MHz < f₀≦ 40 MHz
		2.0 mA Max.		40 MHz < f₀≦ 50 MHz
		2.1 mA Max.		50 MHz < f₀≦ 55 MHz
输入阻抗	Rin	500 kΩ Min.	-	V_C - GND(DC)
频率控制范围	f_cont	±8.0 × 10^-6 to ±12 × 10^-6	-	B: V_C =0.9V ±0.6V (V_CC=1.8V) C: V_C =1.4V ±1.0V (V_CC=2.8V) D: V_C =1.5V ±1.0V (V_CC=3.0V) E: V_C =1.65V ±1.0V (V_CC=3.3V)
频率变化极性	-	Positive polarity	-
占空比	SYM	45% to 55%		GND level(DC cut)
输出电压	V_PP	0.8V Min.		peak to peak
启动时间	t_str	1.0 ms Max.		t=0 st 90% Vcc
输出负载	Load_R	10kΩ		DC cut capacitor = 0.01µF
	Load_C	10pF

产品命名规则

TG2520SMN温补晶振产品名称参数：

(1) 产品名称 (标准形式)

TG2016SMN 26.000000MHz E C G N N M

① ② ③ ④ ⑤ ⑥⑦⑧⑨

① Model (TG2016, TG2520) ② Output (S: Clipped sine) ③ Frequency

④ Supply voltage (Refer to symbol table)

⑤ Frequency / temperature characteristics (C: ±0.5 × 10^-6 Max., F: ±2.0 × 10^-6 Max.)

⑥ Operating temperature (G: -40 °C to +85 °C) ⑦ Standby function (N: Non)

⑧ V_C function(Refer to symbol table, N: Non for TCXO)

⑨ Internal identification code ("M" is default)

④ Supply voltage [V_CC], ⑧ V_C function [Vc] (symbol table)
Voltage [V]	TCXO	VC-TCXO
④ V_CC (Typ.)	E:1.8 M:2.8 to 3.3	E:1.8	E:1.8	E:1.8	E:1.8
⑧ V_C(Typ.)	N: Non	B:0.9	C:1.4	D:1.5	E:1.65

(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)

TG2016SMN X1G005441xxxx25

TG2520SMN X1G005421xxxx27

① ② ③ ④ ⑤

① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）

④ Detail specifications ⑤ Packing（Recommended packing 25：12K pcs/Reel, 27：10K pcs/Reel）

频率	产品编码
[MHz]	TG2520SMN (Size: 2.5 x 2.0) ±0.5 ppm (-40 to +85 °C), without VC function		TG2016SMN (Size: 2.0 x 1.6) ±0.5 ppm (-40 to +85 °C), without VC function
	V_CC = 1.8 V	V_CC = 2.66 to 3.465 V	V_CC = 1.8 V	V_CC= 2.66 to 3.465 V
	Suffix: ECGNNM	Suffix: MCGNNM	Suffix: ECGNNM	Suffix: MCGNNM
16	X1G005421020827	X1G005421030827	X1G005441020825	X1G005441030825
16.368	X1G005421020127	X1G005421030127	X1G005441020125	X1G005441030125
16.369	X1G005421020227	X1G005421030227	X1G005441020225	X1G005441030225
19.2	X1G005421020327	X1G005421030327	X1G005441020325	X1G005441030325
20	X1G005421021127	X1G005421031127	X1G005441021125	X1G005441031125
24	X1G005421021227	X1G005421031227	X1G005441021225	X1G005441031225
25	X1G005421021327	X1G005421031327	X1G005441021325	X1G005441031325
26	X1G005421020427	X1G005421030427	X1G005441020425	X1G005441030425
27	X1G005421021427	X1G005421031427	X1G005441021425	X1G005441031425
27.6	X1G005421022127	X1G005421032127	X1G005441022125	X1G005441032125
30	X1G005421021527	X1G005421031527	X1G005441021525	X1G005441031525
32	X1G005421020527	X1G005421030527	X1G005441020525	X1G005441030525
38.4	X1G005421020627	X1G005421030627	X1G005441020625	X1G005441030625
40	X1G005421020727	X1G005421030727	X1G005441020725	X1G005441030725
48	X1G005421021627	X1G005421031627	X1G005441021625	X1G005441031625
50	X1G005421022227	X1G005421032227	X1G005441022225	X1G005441032225
52	X1G005421022027	X1G005421032027	X1G005441022025	X1G005441032025

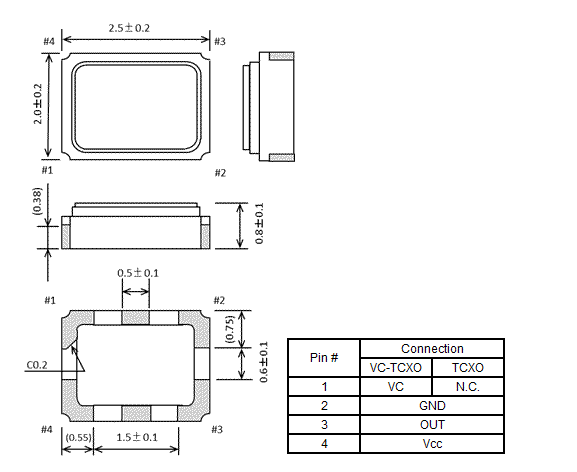

External dimensions (Unit: mm)

TG2520SMN External dimensions.gif

请保持“N.C.”引脚打开状态或GND连接。

“N.C.”引脚不能用作接地引脚。

Footprint (Recommended) (Unit: mm)

TG2520SMN footprint.gif

为了稳定运行，请在Vcc和GND之间添加旁路电容器（0.01uF至0.1uF）。请尽可能靠近TCXO。
