输出频率：10 MHz to 55 MHz
电源电压：1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. /3.3 V Typ.
频率、温度特性：±0.5×10-6 Max.（-40°C to +85°C）；±2.0×10-6 Max.（-40°C to +85°C）
外部尺寸：2.0×1.6×0.73mm；特征：低噪音
应用领域：GPS、射频、无线通信设备（LTE、WiMAX、Wi-Fi、W-LAN、IoT等）
TG2016SMN：爱普生(EPSON) 温补晶振、TCXO / VC-TCXO、高稳定性
TG2016SMN常用频率列表如下：
规格型号 | 料号 | MOQ (PCS) |
TG2016SMN 16.368000MHz ECGNNM | X1G005441020100 | 6000 |
TG2016SMN 16.369000MHz ECGNNM | X1G005441020200 | 6000 |
TG2016SMN 19.200000MHz ECGNNM | X1G005441020300 | 6000 |
TG2016SMN 26.000000MHz ECGNNM | X1G005441020400 | 6000 |
TG2016SMN 32.000000MHz ECGNNM | X1G005441020500 | 6000 |
TG2016SMN 38.400000MHz ECGNNM | X1G005441020600 | 6000 |
TG2016SMN 40.000000MHz ECGNNM | X1G005441020700 | 6000 |
TG2016SMN 16.000000MHz ECGNNM | X1G005441020800 | 6000 |
TG2016SMN 20.000000MHz ECGNNM | X1G005441021100 | 6000 |
TG2016SMN 24.000000MHz ECGNNM | X1G005441021200 | 6000 |
TG2016SMN 25.000000MHz ECGNNM | X1G005441021300 | 6000 |
TG2016SMN 27.000000MHz ECGNNM | X1G005441021400 | 6000 |
TG2016SMN 30.000000MHz ECGNNM | X1G005441021500 | 6000 |
TG2016SMN 48.000000MHz ECGNNM | X1G005441021600 | 6000 |
TG2016SMN 52.000000MHz ECGNNM | X1G005441022000 | 6000 |
TG2016SMN 27.600000MHz ECGNNM | X1G005441022100 | 6000 |
TG2016SMN 16.368000MHz MCGNNM | X1G005441030100 | 6000 |
TG2016SMN 16.369000MHz MCGNNM | X1G005441030200 | 6000 |
TG2016SMN 19.200000MHz MCGNNM | X1G005441030300 | 6000 |
TG2016SMN 26.000000MHz MCGNNM | X1G005441030400 | 6000 |
TG2016SMN 32.000000MHz MCGNNM | X1G005441030500 | 6000 |
TG2016SMN 38.400000MHz MCGNNM | X1G005441030600 | 6000 |
TG2016SMN 40.000000MHz MCGNNM | X1G005441030700 | 6000 |
TG2016SMN 16.000000MHz MCGNNM | X1G005441030800 | 6000 |
TG2016SMN 20.000000MHz MCGNNM | X1G005441031100 | 6000 |
TG2016SMN 24.000000MHz MCGNNM | X1G005441031200 | 6000 |
TG2016SMN 25.000000MHz MCGNNM | X1G005441031300 | 6000 |
TG2016SMN 27.000000MHz MCGNNM | X1G005441031400 | 6000 |
TG2016SMN 30.000000MHz MCGNNM | X1G005441031500 | 6000 |
TG2016SMN 48.000000MHz MCGNNM | X1G005441031600 | 6000 |
TG2016SMN 52.000000MHz MCGNNM | X1G005441032000 | 6000 |
TG2016SMN 27.600000MHz MCGNNM | X1G005441032100 | 6000 |
EPSON 温补晶振TCXO:TG2016SMN、TG2520SMN
• 输出频率：10 MHz至55 MHz
• 电源电压：1.8 V Typ. / 2.8 V Typ. / 3.0 V Typ. /3.3 V Typ.
• 频率、温度特性：
±0.5×10-6 Max.（-40°C to +85°C）
±2.0×10-6 Max.（-40°C to +85°C）
• 外部尺寸：2.0×1.6×0.73mm
• 应用领域：
GPS，射频
无线通信设备（LTE、WiMAX、Wi-Fi、W-LAN、IoT等）
• 特征：低噪音
l GPS，射频
l 无线通信设备（LTE、WiMAX、Wi-Fi、W-LAN、IoT等）
TG2016SMN、TG2520SMN是使用爱普生开发和制造的IC和MHz基本晶体的高稳定性和低相位噪声温补晶振TCXO。相位噪声是爱普生紧凑型TCXO产品阵容中较低的，使其成为GNSS和其他无线通信设备的理想参考时钟。
规格 (特征)
项目 | 符号 | VC-TCXO | TCXO | 条件 / 备注 | |
输出频率范围 | f0 | 10 MHz to 55 MHz | |||
16, 16.368, 16.369, 19.2, 20, 24, 25, 26, 27, 27.6, 30, 32, 38.4, 40, 48, 50, 52 MHz | Standard frequency | ||||
电源电压 | VCC | 1.8 V ±0.1 V / 2.8 V ±5 % / 3.0 V ±5 % / 3.3 V ±5 % | Supply voltage range :1.7 V to 3.63 V | ||
储存温度 | T_stg | -40°C to +90°C | Storage as single product. | ||
工作温度 | T_use | G: -40°C to +85°C | |||
频率稳定度 | f_tol | ±1.5 × 10-6 Max. | After reflow, +25 °C | ||
频率/温度特性 | f0-TC | C: ±0.5 × 10-6 Max. / G: -40 °C to +85 °C F: ±2.0 × 10-6 Max. / G: -40 °C to +85 °C | Standard stability version | ||
频率/负载系数 | f0-Load | ±0.1 × 10-6 Max. | 10 kΩ // 10 pF ±10 % | ||
频率/电压系数 | f0-VCC | ±0.1 × 10-6 Max. | VCC ± 5 % | ||
频率老化 | f_age | ±0.5 × 10-6 Max. | +25 °C, First year, 10MHz, 12 MHz≤ f0 ≤20 MHz, 24 MHz≤ f0 ≤40 MHz | ||
±1.5 × 10-6 Max. | +25 °C ,First year, 10 MHz< f0 < 12 MHz, 20MHz < f0< 24 MHz, 40MHz < f0≤ 55 MHz | ||||
功耗 | ICC | 1.5 mA Max. | 10 MHz ≤ f0 ≤ 26 MHz | ||
1.8 mA Max. | 26 MHz ≤ f0 ≤ 40 MHz | ||||
2.0 mA Max. | 40 MHz ≤ f0 ≤ 50 MHz | ||||
2.1 mA Max. | 50 MHz ≤ f0 ≤ 55 MHz | ||||
输入阻抗 | Zin | 500 kΩ Min. | — | VC - GND (DC) | |
频率控制范围 | f_cont | ±8.0 × 10-6 to ±12.0 × 10-6 | — | B: VC =0.9 V ±0.6 V (VCC =1.8 V) or C: VC =1.4 V ±1.0 V (VCC =2.8 V) or D: VC =1.5 V ±1.0 V (VCC =3.0 V) or E: VC =1.65 V ±1.0 V (VCC =3.3 V) | |
频率变化极性 | f_cp | Positive polarity | — | ||
占空比 | SYM | 45% to 55% | GND level (DC cut) | ||
输出电压 | VPP | 0.8 V Min | Peak to Peak | ||
启动时间 | t_str | 1.0 ms Max. | T=0 at 90% Vcc | ||
输出负载 | Load_R | 10 kΩ | DC cut capacitor = 0.01 µF | ||
Load_C | 10 pF | ||||
TG2016SMN晶振产品名称参数：
(1) 产品名称 (标准形式)
TG2016SMN 26.000000MHz E C G N N M
① ② ③ ④ ⑤ ⑥⑦⑧⑨
① Model (TG2016, TG2520) ② Output (S: Clipped sine) ③ Frequency
④ Supply voltage (Refer to symbol table)
⑤ Frequency / temperature characteristics (C: ±0.5 × 10-6 Max., F: ±2.0 × 10-6 Max.)
⑥ Operating temperature (G: -40 °C to +85 °C) ⑦ Standby function (N: Non)
⑧ VC function(Refer to symbol table, N: Non for TCXO)
⑨ Internal identification code ("M" is default)
④ Supply voltage [VCC], ⑧ VC function [Vc] (symbol table) | |||||
Voltage [V] | TCXO | VC-TCXO | |||
④ VCC (Typ.) | E:1.8 M:2.8 to 3.3 | E:1.8 | E:1.8 | E:1.8 | E:1.8 |
⑧ VC (Typ.) | N: Non | B:0.9 | C:1.4 | D:1.5 | E:1.65 |
(2) 产品型号/ 产品编码 (Blank section is decided by each detail specifications.)
TG2016SMN X1G005441xxxx25
TG2520SMN X1G005421xxxx27
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications ⑤ Packing（Recommended packing 25：12K pcs/Reel, 27：10K pcs/Reel）
频率 | 产品编码 | |||
[MHz] | TG2520SMN (Size: 2.5 x 2.0) ±0.5 ppm (-40 to +85 °C), without VC function | TG2016SMN (Size: 2.0 x 1.6) ±0.5 ppm (-40 to +85 °C), without VC function | ||
VCC = 1.8 V | VCC = 2.66 to 3.465 V | VCC = 1.8 V | VCC = 2.66 to 3.465 V | |
Suffix: ECGNNM | Suffix: MCGNNM | Suffix: ECGNNM | Suffix: MCGNNM | |
16 | X1G005421020827 | X1G005421030827 | X1G005441020825 | X1G005441030825 |
16.368 | X1G005421020127 | X1G005421030127 | X1G005441020125 | X1G005441030125 |
16.369 | X1G005421020227 | X1G005421030227 | X1G005441020225 | X1G005441030225 |
19.2 | X1G005421020327 | X1G005421030327 | X1G005441020325 | X1G005441030325 |
20 | X1G005421021127 | X1G005421031127 | X1G005441021125 | X1G005441031125 |
24 | X1G005421021227 | X1G005421031227 | X1G005441021225 | X1G005441031225 |
25 | X1G005421021327 | X1G005421031327 | X1G005441021325 | X1G005441031325 |
26 | X1G005421020427 | X1G005421030427 | X1G005441020425 | X1G005441030425 |
27 | X1G005421021427 | X1G005421031427 | X1G005441021425 | X1G005441031425 |
27.6 | X1G005421022127 | X1G005421032127 | X1G005441022125 | X1G005441032125 |
30 | X1G005421021527 | X1G005421031527 | X1G005441021525 | X1G005441031525 |
32 | X1G005421020527 | X1G005421030527 | X1G005441020525 | X1G005441030525 |
38.4 | X1G005421020627 | X1G005421030627 | X1G005441020625 | X1G005441030625 |
40 | X1G005421020727 | X1G005421030727 | X1G005441020725 | X1G005441030725 |
48 | X1G005421021627 | X1G005421031627 | X1G005441021625 | X1G005441031625 |
50 | X1G005421022227 | X1G005421032227 | X1G005441022225 | X1G005441032225 |
52 | X1G005421022027 | X1G005421032027 | X1G005441022025 | X1G005441032025 |

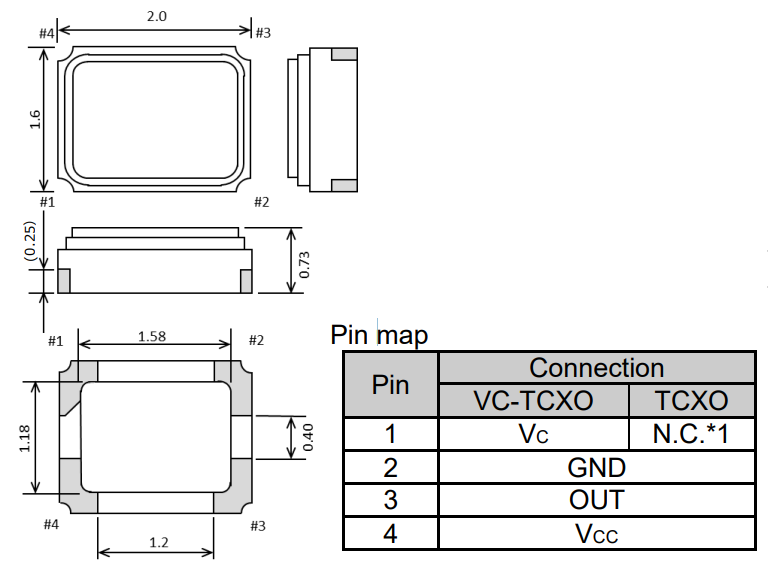

请保持“N.C.”引脚打开状态或GND连接。
“N.C.”引脚不能用作接地引脚。
为了稳定运行，请在Vcc和GND之间添加旁路电容器（0.01uF至0.1uF）。请尽可能靠近TCXO。
