频率范围：19.2 MHz , 26.0 MHz

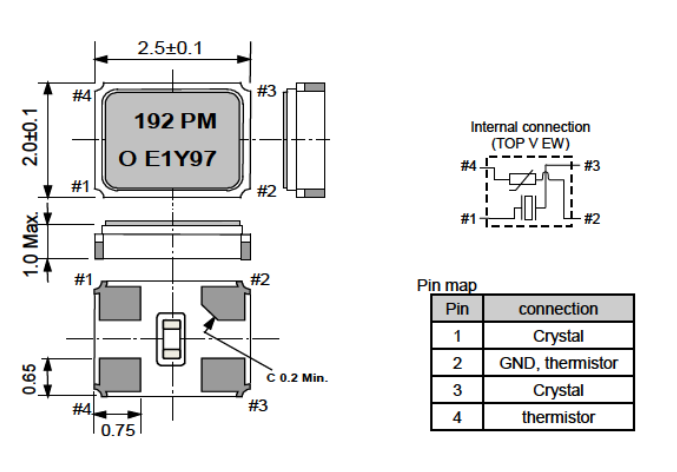

外部尺寸：2.5 × 2.0 × 1.00mm
谐波次数：基频
应用：手机、蓝牙、W-LAN、ISM波段收音机、MPU时钟、GPS、智能手机
FA-20HS：EPSON(爱普生) MHz范围晶体单元，内置热敏电阻
常规参数列表如下：
型号 | 料号 | 温度范围 | MOQ(pcs) |
FA-20HS 19.200000MHz 6.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 19.200000MHz 7.0 +10.0-10.0 | X1E000291000116 | --40 to +85°C | 3000 |
FA-20HS 19.200000MHz 9.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 19.200000MHz 10.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 19.200000MHz 12.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 19.200000MHz 18.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 19.200000MHz 20.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 6.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 7.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 9.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 10.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 12.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 18.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
FA-20HS 26.000000MHz 20.0 +10.0-10.0 | X1E000291xxxx16 | -40 to +85°C | 3000 |
· 频率范围：19.2 MHz , 26.0 MHz
· 外部尺寸：2.5 × 2.0 × 1.00mm
· 谐波次数：基频
· 应用：
手机、蓝牙、W-LAN
ISM波段收音机、MPU时钟、GPS、智能手机
l 手机、蓝牙、W-LAN
l ISM波段收音机、MPU时钟、GPS、智能手机
规格 (特征)
项目 | 符号 | 规格说明 | 条件/备注 |
额定频率范围 | f_nom | 19.2 MHz , 26.0 MHz | Fundamental Please contact us about available frequencies. |
储存温度 | T_stg | -40°C to +125°C | Store as single product. |
工作温度 | T_use | -40°C to +85°C | |
激励功率 | DL | 100µW Max. | Recommended: 1µW to 100µW |
频率公差 | f_tol | ±10 × 10-6*1 | Please contact us about reference temperature. |
频率与温度特性 （标准） | f_tem | ±12 × 10-6*1 | -30°C to +85°C Please contact us for inquiries. |
负载电容 | CL | 6pF to ∞ | Please specify. |
串联电阻（ESR） | R1 | As per below table | -30°C to +85°C |
频率老化 | f_age | ±1 × 10-6 to ±3 × 10-6 / year Max. *1 | +25°C, First year |
热敏电阻 | - | Please contact us about specifications. | |
热敏电阻B常数 | - |
*1 Please contact us for available frequency tolerances as they are dependent upon the nominal frequency.
串联电阻 (ESR)
Frequency | Motional resistance |
19.2MHz | 80Ω Max. |
26.0MHz | 60Ω Max. |
产品名称 FA-20HS 19.200000MHz 7.0 +10.0-10.0
(标准形式) ① ② ③ ④
①Model ②Frequency ③Load capacitance (pF) ④Frequency tolerance (×10-6, +25 °C)
产品料号
FA-20HS X1E000291xxxx16
① ② ③ ④ ⑤
① 晶体器件 ② 型号 ③ 环境代码（0：欧盟RoHS / 2: 无铅）
④ 详细规格 ⑤ 包装规格（16：推荐包装3K pcs/Reel）
