频率范围：16 MHz to 50 MHz

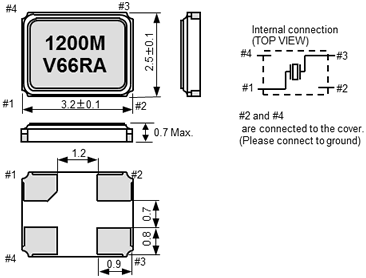

外部尺寸：3.2 × 2.5 × 0.7mm
谐波次数：基频
应用：手机、蓝牙、W-LAN、ISM波段收音机，MPU时钟
FA-238：EPSON(爱普生) MHz范围晶体单元，超小型薄型SMD
常用参数列表如下：
规格型号 | 料号 | 温度范围 | MOQ(pcs) |
FA-238 12.000000MHz 12.0 +20.0 -20.0 | Q22FA2380169900 | -40 to +85°C | 3000 |
FA-238 50.000000MHz | Q22FA2380151300 | -40 to +85°C | 3000 |
FA-238 49.152000MHz 9.0 +50.0 -50.0 | Q22FA2380143800 | -20 to +70°C | 3000 |
FA-238 33.333000MHz | Q22FA2380145000 | -40 to +85°C | 3000 |
FA-238 24.000000MHz 10.0 +50.0 -50.0 | Q22FA2380179400 | -40 to +85°C | 3000 |
FA-238 25.000000MHz 8.0 +30.0 -30.0 | Q22FA2380131000 | -20 to +70°C | 3000 |
FA-238 25.000000MHz 8.0 +50.0 -50.0 | Q22FA2380077600 | -20 to +70°C | 3000 |
FA-238 20.000000MHz 10.0 +50.0 -50.0 | Q22FA2380026400 | -20 to +70°C | 3000 |
FA-238 24.000000MHz 18.0 +50.0 -50.0 | Q22FA2380011400 | -20 to +70°C | 3000 |
FA-238 25.000000MHz 20.0 +20.0 -20.0 | Q22FA2380186300 | -40 to +85°C | 3000 |
FA-238 24.000000MHz 12.0 +30.0 -30.0 | Q22FA2380118800 | -40 to +85°C | 3000 |
FA-238 16.000000MHz 10.0 +50.0 -50.0 | Q22FA2380042100 | -20 to +70°C | 3000 |
FA-238 16.000000MHz 18.0 +50.0 -50.0 | Q22FA2380036700 | -20 to +70°C | 3000 |
FA-238 24.000000MHz 12.0 +50.0 -50.0 | Q22FA2380006500 | -20 to +70°C | 3000 |
FA-238 16.000000MHz 8.0 +15.0 -15.0 | Q22FA2380167400 | -20 to +70°C | 3000 |
FA-238 24.000000MHz 9.0 +15.0 -15.0 | Q22FA2380161000 | -20 to +70°C | 3000 |
FA-238 20.000000MHz 12.0 +30.0 -30.0 | Q22FA2380003500 | -20 to +70°C | 3000 |
FA-238 25.000000MHz 18.0 +15.0 -15.0 | Q22FA2380084400 | -20 to +70°C | 3000 |
FA-238 50.000000MHz | Q22FA2380184800 | -20 to +70°C | 3000 |
FA-238 49.152000MHz 9.0 +50.0 -50.0 | Q22FA2380143800 | -20 to +70°C | 3000 |
FA-238 27.120000MHz | Q22FA2380144100 | -20 to +70°C | 3000 |
FA-238 27.000000MHz 16.0 +50.0 -50.0 | Q22FA2380010300 | -20 to +70°C | 3000 |
FA-238 24.000000MHz 10.0 +20.0 -20.0 | Q22FA2380120100 | -40 to +85°C | 3000 |
FA-238 50.000000MHz 18.0 +20.0 -20.0 | Q22FA2380184800 | -40 to +85°C | 3000 |
FA-238 22.579200MHz | Q22FA2380142100 | -40 to +85°C | 3000 |
FA-238 24.000000MHz 10.0 | Q22FA2380024700 | -40 to +85°C | 3000 |
FA-238 33.333000MHz | Q22FA2380145000 | -40 to +85°C | 3000 |
FA-238 25.000000MHz 10.0 +20.0 -20.0 | Q22FA2380049900 | -40 to +85°C | 3000 |
FA-238 49.152000MHz 20.0 +20.0 -20.0 | Q22FA2380077800 | -20 to +70°C | 3000 |
FA-238 18.432000MHz 10.0 +50.0 -50.0 | Q22FA2380014900 | -20 to +70°C | 3000 |
FA-238 25.000000MHz 18.0 +20.0 -20.0 | Q22FA2380168700 | -40 to +85°C | 3000 |
FA-238 25.000000MHz 8.0 +30.0 -30.0 | Q22FA2380131000 | -20 to +70°C | 3000 |
FA-238 24.000000MHz 12.0 +30.0 -30.0 | Q22FA2380118800 | -40 to +85°C | 3000 |
FA-238 48.000000MHz 12.0 +50.0 -50.0 | Q22FA2380185200 | -20 to +70°C | 3000 |
FA-238 32.768000MHz | Q22FA2380050000 | -40 to +85°C | 3000 |
FA-238 33.330000MHz 10.0 +50.0 -50.0 | Q22FA2380069900 | -20 to +70°C | 3000 |
FA-238 50.000000MHz | Q22FA2380192800 | -40 to +85°C | 3000 |
FA-238 25.000000MHz | Q22FA2380088900 | -40 to +85°C | 3000 |
· 频率范围：16 MHz to 50 MHz
· 外部尺寸：3.2 × 2.5 × 0.7mm
· 谐波次数：基频
· 应用：
手机、蓝牙、W-LAN
ISM波段收音机，MPU时钟
•用于消费和工业应用的小型通信模块
•可穿戴设备
•MCU时钟
规格 (特征)
项目 | 符号 | For Clock | For RF Reference | 条件/备注 | |
FA-238V | FA-238 | TSX-3225 | |||
额定频率范围 | f_nom | 12 MHz to 15.999 MHz | 16 MHz to 50 MHz | 16 MHz to 48 MHz | Fundamental *1 Please contact us about available frequencies. |
储存温度 | T_stg | -40°C to +125°C | Storage as single product. | ||
工作温度 | T_use | -40°C to +85°C (+105 °C) | Please contact us about +85 °C < T_use | ||
激励功率 | DL | 200µW Max. | Recommended: 10µW | ||
频率公差 | f_tol | ±50 × 10-6 (standard), (±15 × 10-6 to ±50 × 10-6 is available) | ±10 × 10-6 | +25 °C Please contact us for requirements not listed in this specifications. *1 | |
频率与温度特性 （标准） | f_tem | ±30 × 10-6/-20 °C to +70 °C | ±10 × 10-6/-20 °C to +75 °C | Please contact us for requirements not listed in this specifications. *1 | |
负载电容 | CL | 7pF to ∞ | Please specify. | ||
串联电阻（ESR） | R1 | As per below table | As per below table | -40 °C to +85 °C, DL = 100 µW | |
频率老化 | f_age | ±5 × 10-6 / year Max. | ±1 × 10-6 / year Max. *2 | +25°C, First year | |
*1 FA-238: For over 40 MHz, only the standard specification applies.
*2 40 MHz ≤ f_nom : ±2 × 10-6 / year Max.
串联电阻 (ESR)
(TSX-3225) 频率 | 串联电阻 |
16MHz ≤ f_nom < 21MHz | 60Ω Max. |
21MHz ≤ f_nom < 48MHz | 40Ω Max. |
(FA-238V / FA-238) 频率 | 串联电阻 |
12MHz ≤ f_nom < 13MHz | 100Ω Max. |
13MHz ≤ f_nom < 20MHz | 80Ω Max. |
20MHz ≤ f_nom ≤ 25MHz | 60Ω Max. |
25MHz ≤ f_nom ≤ 30MHz | 50Ω Max. |
30MHz ≤ f_nom ≤ 50MHz | 40Ω Max. |
产品名称 TSX-3225 48.000000MHz 12.0 +10.0-10.0
FA-238V 12.000000MHz 12.0 +15.0-15.0
FA-238 24.000000MHz 12.0 +15.0-15.0
(标准形式) ① ② ③ ④
①Model ②Frequency ③Load capacitance (pF) ④Frequency tolerance (×10-6, +25 °C)
产品料号
TSX-3225 X1E000021xxxx00
FA-238V Q22FA23V0xxxx00
FA-238 Q22FA2380xxxx00
① ② ③ ④ ⑤
① 晶体器件 ② 型号 ③ 环境代码（1：欧盟RoHS / 2: 无铅）
④ 详细规格 ⑤ 包装规格（00：推荐包装2K pcs/Reel）
