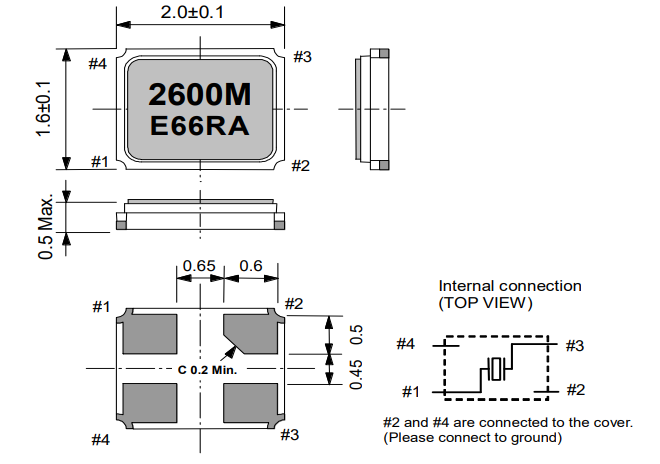

频率范围：19.2 MHz to 54 MHz；外部尺寸：2.0 × 1.6 × 0.5mm
谐波次数：基频；频率公差（标准）： ±10 x 10-6 / ±30 x 10-6 (@+25 °C)
频率与温度特性（标准）：±10 x 10-6 (-20 °C to +75 °C)；±30 x 10-6 (-20 °C to +75 °C)
ESR：150 Ω Max. (19.2 MHz < f_nom < 20 MHz)；100 Ω Max. (20 MHz < f_nom < 24 MHz)；
80 Ω Max. (24 MHz < f_nom < 26 MHz)； 60 Ω Max. (26 MHz < f_nom < 54 MHz)
应用：手机、蓝牙、W-LAN、ISM波段收音机，MPU时钟
FA-128：爱普生(EPSON) MHz范围晶体单元，超小型薄型SMD
FA-128常用频率列表如下：
规格型号 | 产品编码 | 工作温度 | 北美编码 |
FA-128 48.000000MHz 12.0 +50.0-50.0 | Q22FA1280000200 | -20°C to +70°C | FA-12848.0000 MB30V-W6 |
FA-128 38.400000MHz 10.0 +15.0-15.0 | Q22FA1280000700 | -20°C to +85°C | FA-12838.4000 ME15P-K6 |
FA-128 27.000000MHz 10.0 +30.0-30.0 | Q22FA1280000800 | -20°C to +70°C | FA-12827.0000 MD30V-K6 |
FA-128 38.400000MHz 10.0 +10.0-10.0 | Q22FA1280001000 | -20°C to +75°C | FA-12838.4000 MF10Z-K6 |
FA-128 26.000000MHz 10.0 +10.0-10.0 | Q22FA1280001100 | -20°C to +75°C | FA-12826.0000 MF10Z-K6 |
FA-128 24.000000MHz 16.0 +30.0-30.0 | Q22FA1280001300 | -25°C to +70°C | |
FA-128 24.000000MHz 16.0 +30.0-30.0 | Q22FA1280001400 | -40°C to +85°C | FA-12824.0000 MD30X-B6 |
FA-128 32.000000MHz 12.0 +10.0-10.0 | Q22FA1280001800 | -20°C to +75°C | FA-12832.0000 MF10Z-W6 |
FA-128 26.000000MHz 9.0 +10.0-10.0 | Q22FA1280002000 | -20°C to +75°C | FA-12826.0000 MF10Z-AC6 |
FA-128 27.120000MHz 10.0 +10.0-10.0 | Q22FA1280002100 | -20°C to +75°C | FA-12827.1200 MF10Z-K6 |
FA-128 24.000000MHz 10.0 +10.0-10.0 | Q22FA1280002200 | -20°C to +75°C | FA-12824.0000 MF10Z-K6 |
FA-128 26.000000MHz 12.0 +10.0-10.0 | Q22FA1280002400 | -20°C to +75°C | FA-12826.0000 MF10Z-W6 |
FA-128 32.000000MHz 8.0 +10.0-10.0 | Q22FA1280002500 | -20°C to +75°C | FA-12832.0000 MF10Z-AJ6 |
FA-128 26.000000MHz 8.0 +10.0-10.0 | Q22FA1280002600 | -20°C to +75°C | FA-12826.0000 MF10Z-AJ6 |
FA-128 24.000000MHz 12.0 +30.0-30.0 | Q22FA1280003000 | -20°C to +70°C | FA-12824.0000 MD30V-W6 |
FA-128 32.000000MHz 18.0 +30.0-30.0 | Q22FA1280003100 | -20°C to +75°C | FA-12832.0000 MD30Z-C6 |
FA-128 27.120000MHz 8.0 +15.0-15.0 | Q22FA1280003400 | -30°C to +70°C | |
FA-128 24.000000MHz 10.0 +30.0-30.0 | Q22FA1280003500 | -20°C to +75°C | FA-12824.0000 MD30Z-K6 |
FA-128 24.000000MHz 12.0 +50.0-50.0 | Q22FA1280003700 | -20°C to +75°C | FA-12824.0000 MB30Z-W6 |
FA-128 24.000000MHz 10.0 +50.0-50.0 | Q22FA1280003800 | -30°C to +85°C | FA-12824.0000 MB30Z-K6 |
FA-128 32.000000MHz 8.0 +10.0-10.0 | Q22FA1280004300 | -40°C to +85°C | FA-12832.0000 MF20X-AJ6 |
FA-128 48.000000MHz 16.0 +15.0-15.0 | Q22FA1280004400 | -40°C to +85°C | FA-12848.0000 ME18X-B6 |
FA-128 38.400000MHz 8.5 +10.0-10.0 | Q22FA1280004500 | -20°C to +75°C | FA-12838.4000 MF10Z-AS6 |
FA-128 26.000000MHz 12.0 +10.0-10.0 | Q22FA1280004700 | -20°C to +85°C | FA-12826.0000 MF10P-W6 |
FA-128 24.000000MHz 12.0 +10.0-10.0 | Q22FA1280005300 | -20°C to +70°C | FA-12824.0000 MF10V-W6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280005400 | -20°C to +70°C | FA-12824.0000 MF10V-AJ6 |
FA-128 44.000000MHz 12.0 +10.0-10.0 | Q22FA1280006100 | -20°C to +5°C | FA-12844.0000 MF10Z-W6 |
FA-128 48.000000MHz 8.0 +30.0-30.0 | Q22FA1280006200 | -20°C to +70°C | FA-12848.0000 MD30V-AJ6 |
FA-128 37.400000MHz 18.0 +10.0-10.0 | Q22FA1280006400 | -20°C to +75°C | FA-12837.4000 MF10Z-C6 |
FA-128 24.000000MHz 7.0 +30.0-30.0 | Q22FA1280006700 | -20°C to +75°C | FA-12824.0000 MD30Z-AG6 |
FA-128 27.000000MHz 7.0 +10.0-10.0 | Q22FA1280007000 | -20°C to +70°C | FA-12827.0000 MF15V-AG6 |
FA-128 33.600000MHz 9.0 +10.0-10.0 | Q22FA1280007900 | -30°C to +85°C | FA-12833.6000 MF10Y-AC6 |
FA-128 27.120000MHz 10.0 +30.0-30.0 | Q22FA1280008500 | -20°C to +75°C | FA-12827.1200 MD30Z-K6 |
FA-128 48.000000MHz 8.0 +30.0-30.0 | Q22FA1280008900 | -30°C to +85°C | FA-12848.0000 MD50Y-AJ6 |
FA-128 25.000000MHz 12.0 +10.0-10.0 | Q22FA1280009000 | -40°C to +85°C | FA-12825.0000 MF20X-W6 |
FA-128 27.120000MHz 7.0 +50.0-50.0 | Q22FA1280009100 | -20°C to +70°C | FA-12827.1200 MB30V-AG6 |
FA-128 32.000000MHz 10.0 +10.0-10.0 | Q22FA1280009200 | -40°C to +85°C | FA-12832.0000 MF20X-K6 |
FA-128 40.000000MHz 8.0 +10.0-10.0 | Q22FA1280009400 | -20°C to +75°C | FA-12840.0000 MF10Z-AJ6 |
FA-128 40.000000MHz 8.0 +10.0-10.0 | Q22FA1280009900 | -30°C to +85°C | |
FA-128 38.400000MHz 8.0 +10.0-10.0 | Q22FA1280010000 | -30°C to +85°C | |
FA-128 40.000000MHz 10.0 +10.0-10.0 | Q22FA1280010100 | -20°C to +75°C | FA-12840.0000 MF20X-K6 |
FA-128 25.000000MHz 12.5 +30.0-30.0 | Q22FA1280010500 | -20°C to +75°C | FA-12825.0000 MD30Z-A6 |
FA-128 25.000000MHz 10.0 +50.0-50.0 | Q22FA1280010700 | -20°C to +75°C | FA-12825.0000 MB30Z-K6 |
FA-128 25.000000MHz 12.0 +30.0-30.0 | Q22FA1280010800 | -20°C to +75°C | FA-12825.0000 MD30Z-W6 |
FA-128 27.120000MHz 10.0 +15.0-15.0 | Q22FA1280011200 | -20°C to +75°C | FA-12827.1200 ME15Z-K6 |
FA-128 24.000000MHz 9.0 +10.0-10.0 | Q22FA1280011400 | -20°C to +75°C | FA-12824.0000 MF10Z-AC6 |
FA-128 32.000000MHz 12.0 +15.0-15.0 | Q22FA1280011600 | -20°C to +70°C | FA-12832.0000 ME20V-W6 |
FA-128 32.000000MHz 10.0 +20.0-20.0 | Q22FA1280011900 | -20°C to +75°C | FA-12832.0000 MA20Z-K6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280012000 | -20°C to +75°C | FA-12824.0000 MF10Z-AJ6 |
FA-128 27.000000MHz 15.0 +10.0-10.0 | Q22FA1280012100 | -40°C to +85°C | FA-12827.0000 MF18X-R6 |
FA-128 24.000000MHz 6.0 +30.0-30.0 | Q22FA1280012500 | -20°C to +75°C | FA-12824.0000 MD30Z-E6 |
FA-128 25.000000MHz 8.0 +30.0-30.0 | Q22FA1280012600 | -20°C to +75°C | FA-12825.0000 MD30Z-AJ6 |
FA-128 24.576000MHz 10.0 +30.0-30.0 | Q22FA1280012700 | -20°C to +75°C | FA-12824.5760 MD20Z-K6 |
FA-128 27.120000MHz 12.0 +30.0-30.0 | Q22FA1280012900 | -20°C to +75°C | FA-12827.1200 MD30Z-W6 |
FA-128 32.000000MHz 9.0 +10.0-10.0 | Q22FA1280013100 | -20°C to +75°C | FA-12832.0000 MF9Z-AC6 |
FA-128 26.000000MHz 15.0 +10.0-10.0 | Q22FA1280013200 | -20°C to +70°C | FA-12826.0000 MF10V-R6 |
FA-128 27.000000MHz 12.0 +10.0-10.0 | Q22FA1280013500 | -40°C to +85°C | FA-12827.0000 MF18X-W6 |
FA-128 32.000000MHz 9.0 +20.0-20.0 | Q22FA1280013700 | -30°C to +85°C | FA-12832.0000 MA30Y-AC6 |
FA-128 26.000000MHz 9.0 +10.0-10.0 | Q22FA1280014000 | -40°C to +85°C | FA-12826.0000 MF20X-AC6 |
FA-128 20.000000MHz 10.0 +10.0-10.0 | Q22FA1280014100 | -20°C to +70°C | FA-12820.0000 MF10V-K6 |
FA-128 48.000000MHz 6.0 +50.0-50.0 | Q22FA1280014300 | -30°C to +85°C | FA-12848.0000 MB30Y-E6 |
FA-128 24.000000MHz 6.0 +10.0-10.0 | Q22FA1280014500 | -20°C to +75°C | FA-12824.0000 MF10Z-E6 |
FA-128 24.000000MHz 7.0 +10.0-10.0 | Q22FA1280014600 | -20°C to +75°C | FA-12824.0000 MF10Z-AG6 |
FA-128 38.400000MHz 8.0 +10.0-10.0 | Q22FA1280014700 | -20°C to +75°C | FA-12838.4000 MF10Z-AJ6 |
FA-128 26.000000MHz 8.0 +10.0-10.0 | Q22FA1280014800 | -30°C to +85°C | FA-12826.0000 MF12Y-AJ6 |
FA-128 27.000000MHz 8.0 +10.0-10.0 | Q22FA1280014900 | -40°C to +85°C | FA-12827.0000 MF18X-AJ6 |
FA-128 48.000000MHz 10.0 +10.0-10.0 | Q22FA1280015000 | -40°C to +85°C | FA-12848.0000 MF20X-K6 |
FA-128 40.000000MHz 10.0 +10.0-10.0 | Q22FA1280015200 | -20°C to +75°C | FA-12840.0000 MF10Z-K6 |
FA-128 25.000000MHz 6.0 +30.0-30.0 | Q22FA1280015600 | -30°C to +85°C | FA-12825.0000 MD30Y-E6 |
FA-128 27.000000MHz 10.0 +10.0-10.0 | Q22FA1280015800 | -20°C to +75°C | FA-12827.0000 MF10Z-K6 |
FA-128 27.000000MHz 12.0 +27.0-27.0 | Q22FA1280015900 | -20°C to +70°C | |
FA-128 25.000000MHz 7.0 +30.0-30.0 | Q22FA1280016000 | -20°C to +75°C | FA-12825.0000 MD30Z-AG6 |
FA-128 25.000000MHz 10.0 +10.0-10.0 | Q22FA1280016600 | -20°C to +75°C | FA-12825.0000 MF10Z-K6 |
FA-128 24.000000MHz 12.5 +10.0-10.0 | Q22FA1280016800 | -20°C to +75°C | FA-12824.0000 MF30Z-A6 |
FA-128 24.000000MHz 7.0 +10.0-10.0 | Q22FA1280016900 | -20°C to +75°C | FA-12824.0000 MF30Z-AG6 |
FA-128 26.000000MHz 6.0 +10.0-10.0 | Q22FA1280017000 | -20°C to +75°C | FA-12826.0000 MF10Z-E6 |
FA-128 27.120000MHz 10.0 +15.0-15.0 | Q22FA1280017400 | -30°C to +85°C | FA-12827.1200 ME20Y-K6 |
FA-128 27.000000MHz 12.0 +30.0-30.0 | Q22FA1280018200 | -20°C to +75°C | FA-12827.0000 MD50Z-W6 |
FA-128 25.000000MHz 10.0 +10.0-10.0 | Q22FA1280018300 | -40°C to +85°C | FA-12825.0000 MF20X-K6 |
FA-128 27.120000MHz 10.0 +30.0-30.0 | Q22FA1280018400 | -30°C to +85°C | FA-12827.1200 MD30Y-K6 |
FA-128 25.000000MHz 18.0 +50.0-50.0 | Q22FA1280018600 | -20°C to +70°C | FA-12825.0000 MB30V-C6 |
FA-128 48.000000MHz 16.0 +30.0-30.0 | Q22FA1280018700 | -40°C to +85°C | FA-12848.0000 MD20X-B6 |
FA-128 32.000000MHz 8.0 +10.0-10.0 | Q22FA1280019100 | -30°C to +85°C | FA-12832.0000 MF10Y-AJ6 |
FA-128 32.000000MHz 7.0 +10.0-10.0 | Q22FA1280019700 | -20°C to +75°C | FA-12832.0000 MF10Z-AG6 |
FA-128 24.000000MHz 18.0 +10.0-10.0 | Q22FA1280020100 | -20°C to +75°C | FA-12824.0000 MF10Z-C6 |
FA-128 32.000000MHz 6.7 +10.0-10.0 | Q22FA1280020200 | -20°C to +75°C | FA-12832.0000 MF10Z-VC6 |
FA-128 24.000000MHz 10.0 +30.0-30.0 | Q22FA1280021300 | -40°C to +85°C | FA-12824.0000 MD30X-K6 |
FA-128 25.000000MHz 10.0 +30.0-30.0 | Q22FA1280021400 | -40°C to +85°C | FA-12825.0000 MD30X-K6 |
FA-128 25.000000MHz 10.0 +30.0-30.0 | Q22FA1280021500 | -20°C to +75°C | FA-12825.0000 MD30Z-K6 |
FA-128 30.000000MHz 9.0 +10.0-10.0 | Q22FA1280021800 | -40°C to +85°C | FA-12830.0000 MF20X-AC6 |
FA-128 30.000000MHz 6.0 +30.0-30.0 | Q22FA1280021900 | -30°C to +85°C | FA-12830.0000 MD40Y-E6 |
FA-128 20.000000MHz 10.0 +30.0-30.0 | Q22FA1280022200 | -20°C to +75°C | FA-12820.0000 MD30Z-K6 |
FA-128 25.000000MHz 9.0 +30.0-30.0 | Q22FA1280022500 | -30°C to +85°C | FA-12825.0000 MD30Y-AC6 |
FA-128 26.000000MHz 8.0 +10.0-10.0 | Q22FA1280022600 | -40°C to +85°C | FA-12826.0000 MF20X-AJ6 |
FA-128 37.400000MHz 10.0 +10.0-10.0 | Q22FA1280022700 | -20°C to +75°C | FA-12837.4000 MF10Z-K6 |
FA-128 25.000000MHz 9.0 +10.0-10.0 | Q22FA1280022900 | -20°C to +75°C | FA-12825.0000 MF10Z-AC6 |
FA-128 26.000000MHz 10.0 +10.0-10.0 | Q22FA1280023000 | -40°C to +85°C | FA-12826.0000 MF20X-K6 |
FA-128 20.000000MHz 9.0 +10.0-10.0 | Q22FA1280023200 | -20°C to +75°C | FA-12820.0000 MF10Z-AC6 |
FA-128 27.120000MHz 6.0 +30.0-30.0 | Q22FA1280023300 | -30°C to +85°C | FA-12827.1200 MD30Y-E6 |
FA-128 16.000000MHz 9.0 +10.0-10.0 | Q22FA1280023400 | -20°C to +75°C | FA-12816.0000 MF10Z-AC6 |
FA-128 25.000000MHz 18.0 +30.0-30.0 | Q22FA1280023600 | -20°C to +70°C | FA-12825.0000 MD30V-C6 |
FA-128 25.000000MHz 18.0 +30.0-30.0 | Q22FA1280023800 | -40°C to +85°C | FA-12825.0000 MD30X-C6 |
FA-128 30.000000MHz 10.0 +10.0-10.0 | Q22FA1280024100 | -20°C to +75°C | FA-12830.0000 MF10Z-K6 |
FA-128 27.000000MHz 10.0 +30.0-30.0 | Q22FA1280024200 | -20°C to +75°C | FA-12827.0000 MD30X-K6 |
FA-128 24.000000MHz 10.0 +15.0-15.0 | Q22FA1280024400 | -40°C to +85°C | FA-12824.0000 ME20X-K6 |
FA-128 24.000000MHz 9.0 +20.0-20.0 | Q22FA1280025000 | -40°C to +85°C | FA-12824.0000 MA30X-AC6 |
FA-128 27.000000MHz 12.0 +30.0-30.0 | Q22FA1280025200 | -40°C to +85°C | FA-12827.0000 MD30X-W6 |
FA-128 20.000000MHz 7.0 +10.0-10.0 | Q22FA1280026100 | -20°C to +75°C | FA-12820.0000 MF10Z-AG6 |
FA-128 25.000000MHz 18.0 +10.0-10.0 | Q22FA1280026500 | -20°C to +75°C | FA-12825.0000 MF10Z-C6 |
FA-128 30.000000MHz 10.0 +30.0-30.0 | Q22FA1280026700 | -20°C to +75°C | FA-12830.0000 MD30Z-K6 |
FA-128 24.000000MHz 8.0 +30.0-30.0 | Q22FA1280027100 | -40°C to +85°C | FA-12824.0000 MD30X-AJ6 |
FA-128 48.000000MHz 12.0 +30.0-30.0 | Q22FA1280028400 | -20°C to +75°C | FA-12848.0000 MD30Z-W6 |
FA-128 25.000000MHz 20.0 +30.0-30.0 | Q22FA1280029800 | -40°C to +85°C | FA-12825.0000 MD30X-G6 |
FA-128 27.120000MHz 10.0 +10.0-10.0 | Q22FA1280030000 | -40°C to +85°C | FA-12827.1200 MF30X-K6 |
FA-128 48.000000MHz 12.0 +30.0-30.0 | Q22FA1280030100 | -40°C to +85°C | FA-12848.0000 MD30X-W6 |
FA-128 48.000000MHz 10.0 +30.0-30.0 | Q22FA1280030200 | -40°C to +85°C | FA-12848.0000 MD30X-K6 |
FA-128 36.000000MHz 8.0 +10.0-10.0 | Q22FA1280030300 | -30°C to +85°C | FA-12836.0000 MF12Y-AJ6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280030400 | -30°C to +85°C | FA-12824.0000 MF12Y-AJ6 |
FA-128 32.000000MHz 10.0 +10.0-10.0 | Q22FA1280030500 | -20°C to +75°C | FA-12832.0000 MF10Z-K6 |
FA-128 16.000000MHz 12.0 +10.0-10.0 | Q22FA1280030800 | -20°C to +75°C | FA-12816.0000 MF10Z-W6 |
FA-128 25.000000MHz 18.0 +30.0-30.0 | Q22FA1280031100 | -20°C to +75°C | FA-12825.0000 MD30Z-C6 |
FA-128 24.000000MHz 18.0 +30.0-30.0 | Q22FA1280031400 | -20°C to +75°C | FA-12824.0000 MD30Z-C6 |
FA-128 27.120000MHz 10.0 +10.0-10.0 | Q22FA1280031500 | -40°C to +85°C | FA-12827.1200 MF20X-K6 |
FA-128 40.000000MHz 10.0 +30.0-30.0 | Q22FA1280031800 | -20°C to +75°C | FA-12840.0000 MD30Z-K6 |
FA-128 48.000000MHz 7.0 +30.0-30.0 | Q22FA1280032100 | -25°C to +75°C | FA-12848.0000 MD30Z-AG6 |
FA-128 24.000000MHz 12.0 +20.0-20.0 | Q22FA1280032600 | -20°C to +70°C | FA-12824.0000 MA20V-W6 |
FA-128 40.000000MHz 12.0 +10.0-10.0 | Q22FA1280033200 | -20°C to +70°C | FA-12840.0000 MF10V-W6 |
FA-128 32.000000MHz 9.0 +10.0-10.0 | Q22FA1280033400 | -20°C to +75°C | FA-12832.0000 MF10Z-AC6 |
FA-128 20.000000MHz 10.0 +10.0-10.0 | Q22FA1280033500 | -40°C to +85°C | FA-12820.0000 MF30X-K6 |
FA-128 25.000000MHz 7.0 +10.0-10.0 | Q22FA1280033600 | -40°C to +85°C | FA-12825.0000 MF30X-AG6 |
FA-128 27.000000MHz 12.0 +10.0-10.0 | Q22FA1280033700 | -40°C to +85°C | FA-12827.0000 MF30X-W6 |
FA-128 16.000000MHz 10.0 +10.0-10.0 | Q22FA1280034100 | -20°C to +75°C | FA-12816.0000 MF10Z-K6 |
FA-128 50.000000MHz 8.0 +10.0-10.0 | Q22FA1280034500 | -20°C to +75°C | FA-12850.0000 MF10Z-AJ6 |
FA-128 20.000000MHz 6.0 +10.0-10.0 | Q22FA1280034600 | -20°C to +75°C | FA-12820.0000 MF10Z-E6 |
FA-128 16.000000MHz 8.0 +30.0-30.0 | Q22FA1280034800 | -20°C to +70°C | FA-12816.0000 MD30V-AJ6 |
FA-128 26.000000MHz 8.0 +20.0-20.0 | Q22FA1280035000 | -20°C to +70°C | FA-12826.0000 MA20V-AJ6 |
FA-128 26.000000MHz 7.0 +10.0-10.0 | Q22FA1280035200 | -40°C to +85°C | FA-12826.0000 MF20X-AG6 |
FA-128 24.576000MHz 12.0 +50.0-50.0 | Q22FA1280035700 | -40°C to +85°C | FA-12824.5760 MB50X-W6 |
FA-128 32.000000MHz 8.0 +20.0-20.0 | Q22FA1280036400 | -30°C to +85°C | FA-12832.0000 MA20Y-AJ6 |
FA-128 16.000000MHz 7.0 +10.0-10.0 | Q22FA1280036600 | -20°C to +75°C | FA-12816.0000 MF10Z-AG6 |
FA-128 32.253000MHz 8.0 +30.0-30.0 | Q22FA1280036700 | -40°C to +85°C | FA-12832.2530 MD50X-AJ6 |
FA-128 27.120000MHz 8.0 +15.0-15.0 | Q22FA1280036800 | -20°C to +85°C | FA-12827.1200 ME15P-AJ6 |
FA-128 30.000000MHz 10.0 +10.0-10.0 | Q22FA1280036900 | -40°C to +85°C | FA-12830.0000 MF20X-K6 |
FA-128 19.200000MHz 12.0 +10.0-10.0 | Q22FA1280037200 | -20°C to +75°C | FA-12819.2000 MF10Z-W6 |
FA-128 50.000000MHz 20.0 +30.0-30.0 | Q22FA1280037600 | -40°C to +85°C | FA-12850.0000 MD50X-G6 |
FA-128 26.000000MHz 19.0 +15.0-15.0 | Q22FA1280038600 | -40°C to +85°C | FA-12826.0000 ME20X-AQ6 |
FA-128 24.000000MHz 12.0 +10.0-10.0 | Q22FA1280038700 | -40°C to +85°C | FA-12824.0000 MF20X-W6 |
FA-128 25.000000MHz 16.0 +10.0-10.0 | Q22FA1280038800 | -40°C to +85°C | FA-12825.0000 MF20X-B6 |
FA-128 32.000000MHz 9.0 +10.0-10.0 | Q22FA1280039300 | -40°C to +85°C | FA-12832.0000 MF20X-AC6 |
FA-128 25.000000MHz 8.0 +10.0-10.0 | Q22FA1280039500 | -20°C to +75°C | FA-12825.0000 MF15Z-AJ6 |
FA-128 40.000000MHz 10.0 +10.0-10.0 | Q22FA1280039600 | -30°C to +85°C | FA-12840.0000 MF10Y-K6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280039800 | -40°C to +85°C | FA-12824.0000 MF20X-AJ6 |
FA-128 16.000000MHz 8.0 +10.0-10.0 | Q22FA1280040000 | -40°C to +85°C | FA-12816.0000 MF20X-AJ6 |
FA-128 32.000000MHz 9.0 +30.0-30.0 | Q22FA1280040100 | -30°C to +80°C | |
FA-128 16.000000MHz 12.0 +30.0-30.0 | Q22FA1280040500 | -20°C to +75°C | FA-12816.0000 MD30Z-W6 |
FA-128 27.000000MHz 20.0 +30.0-30.0 | Q22FA1280041300 | -40°C to +85°C | FA-12827.0000 MD30X-G6 |
FA-128 16.000000MHz 22.0 +30.0-30.0 | Q22FA1280041600 | -30°C to +85°C | FA-12816.0000 MD30Y-D6 |
FA-128 52.000000MHz 8.0 +30.0-30.0 | Q22FA1280041800 | -30°C to +85°C | FA-12852.0000 MD30Y-AJ6 |
FA-128 24.000000MHz 8.0 +30.0-30.0 | Q22FA1280042000 | -20°C to +75°C | FA-12824.0000 MD30Z-AJ6 |
FA-128 16.000000MHz 8.0 +15.0-15.0 | Q22FA1280042300 | -20°C to +75°C | FA-12816.0000 ME15Z-AJ6 |
FA-128 37.400000MHz 17.0 +10.0-10.0 | Q22FA1280043600 | -30°C to +85°C | FA-12837.4000 MF10Y-AV6 |
FA-128 32.000000MHz 6.0 +10.0-10.0 | Q22FA1280043800 | -20°C to +75°C | FA-12832.0000 MF10Z-E6 |
FA-128 20.000000MHz 8.0 +30.0-30.0 | Q22FA1280044100 | -40°C to +85°C | FA-12820.0000 MD30X-AJ6 |
FA-128 20.000000MHz 12.5 +20.0-20.0 | Q22FA1280044200 | -20°C to +75°C | FA-12820.0000 MA10P-A6 |
FA-128 25.000000MHz 6.0 +10.0-10.0 | Q22FA1280045000 | -20°C to +75°C | FA-12825.0000 MF10Z-E6 |
FA-128 25.000000MHz 6.0 +30.0-30.0 | Q22FA1280045100 | -40°C to +85°C | FA-12825.0000 MD30X-E6 |
FA-128 32.000000MHz 8.0 +10.0-10.0 | Q22FA1280045200 | -20°C to +75°C | FA-12832.0000 MF22G-AJ6 |
FA-128 32.000000MHz 8.0 +9.0-9.0 | Q22FA1280045300 | -40°C to +105°C | |
FA-128 31.250000MHz 10.0 +50.0-50.0 | Q22FA1280045400 | -40°C to +85°C | FA-12831.2500 MB30X-K6 |
FA-128 16.000000MHz 16.0 +10.0-10.0 | Q22FA1280045800 | -20°C to +70°C | FA-12816.0000 MF10V-B6 |
FA-128 26.000000MHz 11.0 +10.0-10.0 | Q22FA1280046100 | -20°C to +75°C | FA-12826.0000 MF10Z-P6 |
FA-128 24.000000MHz 7.0 +10.0-10.0 | Q22FA1280046300 | -40°C to +85°C | FA-12824.0000 MF15X-AG6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280046700 | -40°C to +85°C | FA-12824.0000 MF20X-AJ6 |
FA-128 24.000000MHz 9.0 +10.0-10.0 | Q22FA1280046800 | -20°C to +75°C | FA-12824.0000 MF10Z-AC6 |
FA-128 48.000000MHz 8.0 +10.0-10.0 | Q22FA1280046900 | -20°C to +70°C | FA-12848.0000 MF20V-AJ6 |
FA-128 26.000000MHz 12.0 +10.0-10.0 | Q22FA1280047000 | -40°C to +85°C | FA-12826.0000 MF20X-W6 |
FA-128 33.330000MHz 7.0 +30.0-30.0 | Q22FA1280047100 | -20°C to +75°C | FA-12833.3300 MD30Z-AG6 |
FA-128 25.000000MHz 6.0 +30.0-30.0 | Q22FA1280047300 | -40°C to +85°C | FA-12825.0000 MD20X-E6 |
FA-128 27.120000MHz 8.0 +15.0-15.0 | Q22FA1280047600 | -40°C to +85°C | FA-12827.1200 ME20X-AJ6 |
FA-128 48.000000MHz 8.0 +50.0-50.0 | Q22FA1280047900 | -20°C to +75°C | FA-12848.0000 MB30Z-AJ6 |
FA-128 28.636300MHz 6.0 +10.0-10.0 | Q22FA1280048000 | -20°C to +75°C | FA-12828.6363 MF10Z-E6 |
FA-128 48.000000MHz 6.0 +10.0-10.0 | Q22FA1280048400 | -20°C to +70°C | FA-12848.0000 MF20V-E6 |
FA-128 25.000000MHz 20.0 +30.0-30.0 | Q22FA1280048500 | -20°C to +85°C | FA-12825.0000 MD30P-G6 |
FA-128 16.000000MHz 99.0 +30.0-30.0 | Q22FA1280048700 | -20°C to +75°C | FA-12816.0000 MD30Z-M6 |
FA-128 24.000000MHz 12.0 +10.0-10.0 | Q22FA1280048900 | -20°C to +85°C | FA-12824.0000 MF10P-W6 |
FA-128 24.000000MHz 6.0 +10.0-10.0 | Q22FA1280049500 | -40°C to +85°C | FA-12824.0000 MF50X-E6 |
FA-128 52.000000MHz 6.7 +10.0-10.0 | Q22FA1280049700 | -20°C to +75°C | FA-12852.0000 MF10Z-VC6 |
FA-128 24.000000MHz 10.0 +10.0-10.0 | Q22FA1280049900 | -40°C to +85°C | FA-12824.0000 MF20X-K6 |
FA-128 32.000000MHz 6.0 +20.0-20.0 | Q22FA1280050200 | -40°C to +85°C | FA-12832.0000 MA30X-E6 |
FA-128 38.400000MHz 12.0 +10.0-10.0 | Q22FA1280050600 | -40°C to +85°C | FA-12838.4000 MF20X-W6 |
FA-128 16.000000MHz 9.0 +10.0-10.0 | Q22FA1280050700 | -30°C to +85°C | FA-12816.0000 MF15Y-AC6 |
FA-128 16.000000MHz 10.0 +30.0-30.0 | Q22FA1280051300 | -40°C to +85°C | FA-12816.0000 MD30X-K6 |
FA-128 32.000000MHz 12.0 +10.0-10.0 | Q22FA1280051400 | -40°C to +85°C | FA-12832.0000 MF20X-W6 |
FA-128 32.000000MHz 6.0 +10.0-10.0 | Q22FA1280051700 | -40°C to +85°C | FA-12832.0000 MF20X-E6 |
FA-128 52.000000MHz 8.0 +10.0-10.0 | Q22FA1280051900 | -30°C to +85°C | FA-12852.0000 MF12Y-AJ6 |
FA-128 24.000000MHz 8.5 +9.0-9.0 | Q22FA1280052600 | -10°C to +70°C | |
FA-128 16.000000MHz 6.0 +10.0-10.0 | Q22FA1280052900 | -20°C to +75°C | FA-12816.0000 MF10Z-E6 |
FA-128 32.000000MHz 10.0 +10.0-10.0 | Q22FA1280053000 | -20°C to +75°C | FA-12832.0000 MF10Z-K6 |
FA-128 50.000000MHz 10.0 +15.0-15.0 | Q22FA1280053100 | -40°C to +85°C | FA-12850.0000 ME15X-K6 |
FA-128 24.576000MHz 20.0 +15.0-15.0 | Q22FA1280053300 | -40°C to +85°C | FA-12824.5760 ME15X-G6 |
FA-128 20.000000MHz 15.0 +10.0-10.0 | Q22FA1280054100 | -20°C to +75°C | FA-12820.0000 MF10Z-R6 |
FA-128 26.000000MHz 12.0 +15.0-15.0 | Q22FA1280054800 | -40°C to +105°C | FA-12826.0000 ME30G-W6 |
FA-128 27.120000MHz 6.0 +30.0-30.0 | Q22FA1280055100 | -40°C to +105°C | FA-12827.1200 MD30G-E6 |
FA-128 19.200000MHz 12.0 +30.0-30.0 | Q22FA1280055200 | -20°C to +75°C | FA-12819.2000 MD30Z-W6 |
FA-128 25.000000MHz 10.0 +30.0-30.0 | Q22FA1280055900 | -40°C to +85°C | FA-12825.0000 MD30X-K6 |
FA-128 25.000000MHz 18.0 +30.0-30.0 | Q22FA1280056000 | -40°C to +85°C | FA-12825.0000 MD30X-C6 |
FA-128 24.000000MHz 12.0 +20.0-20.0 | Q22FA1280056100 | -40°C to +85°C | FA-12824.0000 MA20X-W6 |
FA-128 27.120000MHz 8.0 +15.0-15.0 | Q22FA1280056700 | -40°C to +85°C | FA-12827.1200 ME15X-AJ6 |
FA-128 25.000000MHz 8.0 +10.0-10.0 | Q22FA1280056900 | -40°C to +85°C | FA-12825.0000 MF20X-AJ6 |
FA-128 25.000000MHz 10.0 +10.0-10.0 | Q22FA1280057000 | -40°C to +85°C | FA-12825.0000 MF20X-K6 |
FA-128 48.000000MHz 7.0 +10.0-10.0 | Q22FA1280057700 | -40°C to +85°C | FA-12848.0000 MF15X-AG6 |
FA-128 50.000000MHz 8.0 +30.0-30.0 | Q22FA1280058100 | -40°C to +85°C | FA-12850.0000 MD50X-AJ6 |
FA-128 24.000000MHz 8.0 +10.0-10.0 | Q22FA1280058800 | -30°C to +85°C | FA-12824.0000 MF10Y-AJ6 |
FA-128 24.000000MHz 9.0 +10.0-10.0 | Q22FA1280059400 | -40°C to +85°C | FA-12824.0000 MF15X-AC6 |
FA-128 40.000000MHz 12.0 +10.0-10.0 | Q22FA1280059800 | -40°C to +85°C | FA-12840.0000 MF20X-W6 |
FA-128 24.576000MHz 8.0 +10.0-10.0 | Q22FA1280063700 | -40°C to +85°C | FA-12824.5760 MF20X-AJ6 |
FA-128 38.400000MHz 8.0 +10.0-10.0 | Q22FA1280064600 | -30°C to +85°C | FA-12838.4000 MF15Y-AJ6 |
FA-128 52.000000MHz 10.0 +25.0-25.0 | Q22FA1280065200 | -40°C to +85°C | |
FA-128 25.000625MHz 10.0 +10.0-10.0 | Q22FA1280065400 | -20°C to +75°C | FA-12825.0006 MF20X-K6 |
FA-128 40.000000MHz 10.0 +10.0-10.0 | Q22FA1280065500 | -30°C to +85°C | FA-12840.0000 MF10Y-K6 |
FA-128 37.400000MHz 18.0 +10.0-10.0 | Q22FA1280065600 | -40°C to +85°C | FA-12837.4000 MF20X-C6 |
FA-128 31.948800MHz 8.0 +30.0-30.0 | Q22FA1280065800 | -40°C to +85°C | FA-12831.9488 MD30X-AJ6 |
FA-128 16.000000MHz 12.0 +10.0-10.0 | Q22FA1280066200 | -40°C to +85°C | FA-12816.0000 MF20X-W6 |
FA-128 27.000000MHz 8.0 +10.0-10.0 | Q22FA1280066300 | -40°C to +85°C | FA-12827.0000 MF30X-AJ |
FA-128 24.000000MHz 10.0 +15.0-15.0 | Q22FA1280066900 | -40°C to +85°C | FA-12824.0000 ME20X-K |
• 频率范围：19.2 MHz to 54 MHz
• 外部尺寸：2.0 × 1.6 × 0.5mm
• 谐波次数：基频
• 频率公差（标准）： ±10 x 10-6 / ±30 x 10-6 (@+25 °C)
• 频率与温度特性（标准）：
±10 x 10-6 (-20 °C to +75 °C)
±30 x 10-6 (-20 °C to +75 °C)
• ESR：150 Ω Max. (19.2 MHz < f_nom < 20 MHz)
100 Ω Max. (20 MHz < f_nom < 24 MHz)
80 Ω Max. (24 MHz < f_nom < 26 MHz)
60 Ω Max. (26 MHz < f_nom < 54 MHz)
• 应用：
手机、蓝牙、W-LAN
ISM波段收音机，MPU时钟
FA-128已商业化，用作要求高精度的通信模块的基准时钟，以及用于需要小型化的应用（TWS（真无线立体声）、智能手表等）的无线通信和微型计算机的时钟。
使用多年培育的高精度加工技术创造的产品有助于提高客户系统的性能。
•用于消费和工业应用的小型通信模块
•可穿戴设备
•MCU时钟
规格 (特征)
项目 | 符号 | 规格说明 | 条件/备注 | |
For RF Reference | For Clock | |||
额定频率范围 | f_nom | 19.200MHz to 54.000MHz | 基频，有关可用频率的查询，请联系代理-拓蒂电子。 | |
储存温度 | T_stg | -40°C to +125°C | 裸存 | |
工作温度 | T_use | -40°C to +85°C (+105 °C) | 对于+85 °C < T_use，请联系我们。 | |
激励功率 | DL | 100µW Max. | 200µW Max. | 推荐: 10µW |
频率公差 | f_tol | ±10 × 10-6 *1 | ±30 × 10-6 | +25°C，如需了解本规格中未列出的参数，请联系代理-拓蒂电子。 |
频率与温度特性 （标准） | f_tem | ±10 × 10-6 *1 | ±30 × 10-6 | -20°C to +75°C，如需了解本规格中未列出的参数，请联系代理-拓蒂电子。 |
负载电容 | CL | 6pF to ∞ | 请指定 | |
串联电阻（ESR） | R1 | As per below table | -20°C to +75°C | |
频率老化 | f_age | ±1 × 10-6 / year Max. | ±5 × 10-6 / year Max. | +25°C, First year |
串联电阻 (ESR)
Frequency | Motional resistance |
19.2MHz ≤ f_nom < 20.0MHz | 150Ω Max. |
20.0MHz ≤ f_nom < 24.0MHz | 100Ω Max. |
24.0MHz ≤ f_nom ≤ 26.0MHz | 80Ω Max. |
26.0MHz ≤ f_nom ≤ 54.0MHz | 60Ω Max. |
（1） 产品名称
产品名称 FA-128 24.000000MHz 12.0 +10.0-10.0
(标准形式) ① ② ③ ④
① 型号 ② 频率 ③ 负载电容 (pF) ④ 频率公差 (×10-6, +25 °C)
除上述列出的具体规格外，如需其他规格，请指定频率温度特性和工作温度范围。
（2）产品料号 （空白部分由各详细规范决定。）
FA-128 Q22FA1280xxxx18
① ② ③ ④⑤
① 晶体器件 ② 型号 ③ 环境代码（1：欧盟RoHS / 2: 无铅）
④ 详细规格 ⑤ 包装规格（26：推荐包装 6K pcs/Reel）
在线咨询
微信服务
