频率范围：24 MHz to 54 MHz；外部尺寸：1.6 × 1.2 × 0.35mm (t: Max.)?
谐波次数：基频；频率公差（标准）： ±10 x 10-6 / ±30 x 10-6 (@+25 °C)
频率与温度特性（标准）：±12 x 10-6 (-20 °C to +75 °C)；
±30 x 10-6 (-20 °C to +75 °C)
ESR: 200 Ω Max. (24 MHz < f_nom < 32 MHz)；
100 Ω Max. (32 MHz < f_nom < 36 MHz)；
80 Ω Max. (36 MHz < f_nom < 54 MHz)

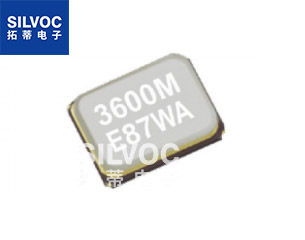

FA-118T ：爱普生 (EPSON) MHz范围晶体单元，超小型薄型SMD
FA-118T 常用频率列表如下：
规格型号 | 产品编码 | 工作温度 | 北美编码 |
FA-118T 48.000000MHz 12.0 +10.0-10.0 | X1E000251000000 | ||
FA-118T 27.120000MHz 10.0 +30.0-30.0 | X1E000251000900 | -20°C to +75°C | |
FA-118T 26.000000MHz 8.0 +10.0-10.0 | X1E000251001100 | -20°C to +75°C | |
FA-118T 26.000000MHz 9.0 +10.0-10.0 | X1E000251001400 | -20°C to +75°C | |
FA-118T 37.400000MHz 14.0 +10.0-10.0 | X1E000251002700 | ||
FA-118T 25.000000MHz 10.0 +30.0-30.0 | X1E000251003300 | -20°C to +75°C | |
FA-118T 30.000000MHz 8.0 +20.0-20.0 | X1E000251003500 | -20°C to +75°C | FA-118T30.0000 MA20Z-AJ |
FA-118T 24.000000MHz 12.0 +10.0-10.0 | X1E000251004600 | -20°C to +75°C | FA-118T24.0000 MF10Z-W |
FA-118T 24.000000MHz | X1E000251004800 | ||
FA-118T 32.000000MHz 9.0 +10.0-10.0 | X1E000251005000 | -20°C to +75°C | FA-118T32.0000 MF12Z-AC |
FA-118T 52.000000MHz 9.0 +15.0-15.0 | X1E000251005600 | -20°C to +75°C | FA-118T52.0000 ME12Z-AC |
FA-118T 25.000000MHz 7.0 +30.0-30.0 | X1E000251005700 | -20°C to +75°C | FA-118T25.0000 MD30Z-AG |
FA-118T 32.000000MHz 8.0 +15.0-15.0 | X1E000251005800 | -30°C to +85°C | FA-118T32.0000 ME20Y-AJ |
FA-118T 32.000000MHz 8.0 +10.0-10.0 | X1E000251005900 | -20°C to +75°C | FA-118T32.0000 MF10Z-AJ |
FA-118T 48.000000MHz 10.0 +30.0-30.0 | X1E000251006000 | -20°C to +75°C | FA-118T48.0000 MD30Z-K |
FA-118T 26.000000MHz 12.0 +10.0-10.0 | X1E000251006400 | -20°C to +75°C | FA-118T26.0000 MF12Z-W |
FA-118T 32.000000MHz 10.0 +10.0-10.0 | X1E000251006500 | -20°C to +75°C | FA-118T32.0000 MF12Z-K |
FA-118T 24.000000MHz 8.0 +30.0-30.0 | X1E000251006800 | -20°C to +75°C | FA-118T24.0000 MD30Z-AJ |
FA-118T 24.000000MHz 10.0 +30.0-30.0 | X1E000251006900 | -20°C to +75°C | FA-118T24.0000 MD30Z-K |
FA-118T 40.000000MHz 12.0 +8.0-8.0 | X1E000251007100 | -30°C to +85°C | |
FA-118T 26.000000MHz 8.0 +10.0-10.0 | X1E000251007500 | -30°C to +85°C | FA-118T26.0000 MF10Y-AJ |
FA-118T 25.000000MHz 9.0 +10.0-10.0 | X1E000251007700 | -20°C to +75°C | FA-118T25.0000 MF10Z-AC |
FA-118T 40.000000MHz 7.0 +10.0-10.0 | X1E000251007800 | -20°C to +75°C | FA-118T40.0000 MF10Z-AG |
FA-118T 32.000000MHz 9.0 +10.0-10.0 | X1E000251007900 | -20°C to +75°C | FA-118T32.0000 MF10Z-AC |
FA-118T 32.000000MHz 6.0 +10.0-10.0 | X1E000251008000 | -20°C to +75°C | FA-118T32.0000 MF12Z-E |
FA-118T 32.000000MHz 8.0 +20.0-20.0 | X1E000251008600 | -20°C to +75°C | FA-118T32.0000 MA20Z-AJ |
FA-118T 24.000000MHz 8.0 +30.0-30.0 | X1E000251009300 | -20°C to +70°C | FA-118T24.0000 MD30V-AJ |
FA-118T 48.000000MHz 6.0 +30.0-30.0 | X1E000251009900 | -20°C to +75°C | FA-118T48.0000 MD30Z-E |
FA-118T 50.000000MHz 8.0 +30.0-30.0 | X1E000251010200 | -40°C to +85°C | FA-118T50.0000 MD30X-AJ |
FA-118T 32.000000MHz 10.0 +20.0-20.0 | X1E000251010400 | -40°C to +85°C | FA-118T32.0000 MA30X-K |
FA-118T 25.000000MHz 10.0 +50.0-50.0 | X1E000251011100 | -20°C to +75°C | FA-118T25.0000 MB30Z-K |
FA-118T 25.000000MHz 8.0 +10.0-10.0 | X1E000251011300 | -30°C to +85°C | FA-118T25.0000 MF15Y-AJ |
FA-118T 24.000000MHz 8.0 +10.0-10.0 | X1E000251012100 | -20°C to +85°C | FA-118T24.0000 MF10P-AJ |
FA-118T 24.000000MHz 7.0 +30.0-30.0 | X1E000251012600 | -20°C to +75°C | FA-118T24.0000 MD30Z-AG |
FA-118T 32.000000MHz 8.0 +10.0-10.0 | X1E000251013400 | -20°C to +85°C | FA-118T32.0000 MF12P-AJ |
FA-118T 24.000000MHz 8.0 +15.0-15.0 | X1E000251013600 | -20°C to +105°C | |
FA-118T 32.000000MHz 6.0 +10.0-10.0 | X1E000251013800 | -20°C to +70°C | FA-118T32.0000 MF15V-E |
FA-118T 32.000000MHz 8.0 +20.0-20.0 | X1E000251014100 | -40°C to +85°C | FA-118T32.0000 MA20X-AJ |
FA-118T 24.000000MHz 20.0 +30.0-30.0 | X1E000251014400 | -20°C to +75°C | FA-118T24.0000 MD30Z-G |
FA-118T 25.000000MHz 20.0 +30.0-30.0 | X1E000251014500 | -20°C to +75°C | FA-118T25.0000 MD30Z-G |
FA-118T 38.400000MHz 20.0 +10.0-10.0 | X1E000251015000 | -20°C to +75°C | FA-118T38.4000 MF10Z-G |
FA-118T 48.000000MHz 8.0 +10.0-10.0 | X1E000251015200 | -40°C to +85°C | FA-118T48.0000 MF20X-AJ |
FA-118T 24.000000MHz 8.0 +10.0-10.0 | X1E000251015300 | -40°C to +85°C | FA-118T24.0000 MF20X-AJ |
FA-118T 32.000000MHz 9.0 +30.0-30.0 | X1E000251015500 | -20°C to +75°C | FA-118T32.0000 MD30Z-AC |
FA-118T 26.000000MHz | X1E000251015700 | ||
FA-118T 50.000000MHz 12.0 +10.0-10.0 | X1E000251015800 | -40°C to +85°C | FA-118T50.0000 MF15X-W |
FA-118T 48.000000MHz 8.0 +15.0-15.0 | X1E000251015900 | -40°C to +85°C | FA-118T48.0000 ME19X-AJ |
FA-118T 37.400000MHz 8.0 +10.0-10.0 | X1E000251016100 | -30°C to +85°C | FA-118T37.4000 MF10Y-AJ |
FA-118T 32.000000MHz 10.0 +10.0-10.0 | X1E000251016600 | -30°C to +85°C | FA-118T32.0000 MF10Y-K |
FA-118T 24.000000MHz | X1E000251016700 | ||
FA-118T 50.000000MHz 8.0 +10.0-10.0 | X1E000251017500 | -20°C to +85°C | |
FA-118T 24.000000MHz | X1E000251018300 | ||
FA-118T 40.000000MHz 12.0 +10.0-10.0 | X1E000251019000 | -30°C to +85°C | FA-118T40.0000 MF10Y-W |
FA-118T 37.400000MHz | X1E000251019100 | ||
FA-118T 36.000000MHz | X1E000251019400 | ||
FA-118T 32.000000MHz 6.0 +10.0-10.0 | X1E000251019700 | -20°C to +75°C | FA-118T32.0000 MF10Z-E |
FA-118T 38.400000MHz 8.0 +10.0-10.0 | X1E000251020100 | -20°C to +85°C | FA-118T38.4000MF10P-AJ |
• 频率范围：24 MHz to 54 MHz

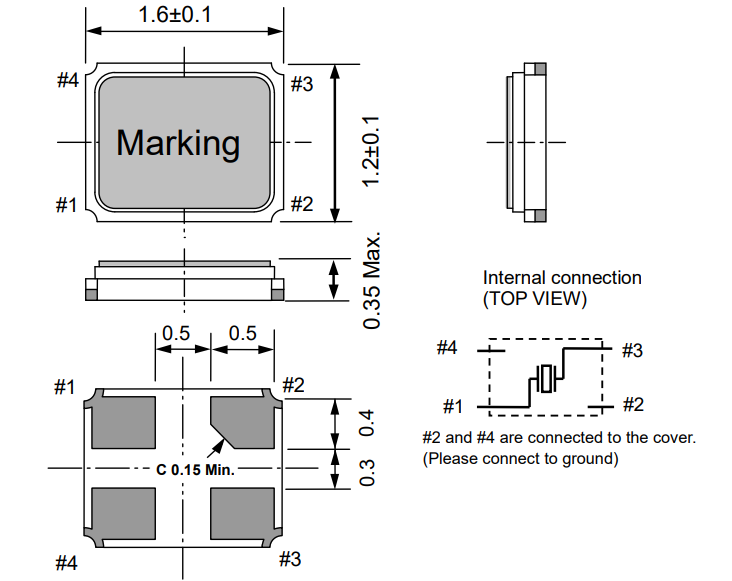

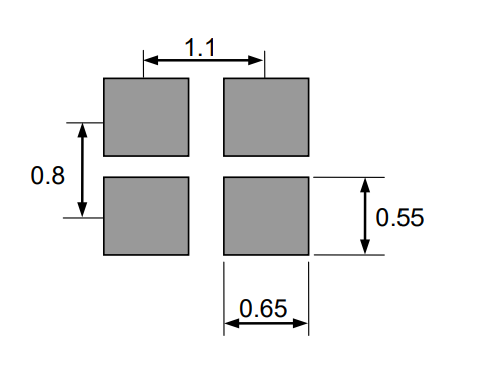

• 外部尺寸：1.6 × 1.2 × 0.35mm (t: Max.)
• 谐波次数：基频
• 频率公差（标准）： ±10 x 10-6 / ±30 x 10-6 (@+25 °C)
• 频率与温度特性（标准）：
±12 x 10-6 (-20 °C to +75 °C)
±30 x 10-6 (-20 °C to +75 °C)
• ESR: 200 Ω Max. (24 MHz < f_nom < 32 MHz)
100 Ω Max. (32 MHz < f_nom < 36 MHz)
80 Ω Max. (36 MHz < f_nom < 54 MHz)
• 应用：
手机、蓝牙、W-LAN
ISM波段收音机，MPU时钟
FA-118T已商业化，用作要求高精度的通信模块的基准时钟，以及用于需要小型化的应用（TWS（真无线立体声）、智能手表等）的无线通信和微型计算机的时钟。
使用多年培育的高精度加工技术创造的产品有助于提高客户系统的性能。
• 用于消费和工业应用的小型通信模块
• 可穿戴设备
• MCU时钟
规格 (特征)
项目 | 符号 | 规格说明 | 条件/备注 | |
For RF Reference | For Clock | |||
额定频率范围 | f_nom | 24.000MHz to 54.000MHz | 基准，请联系代理-拓蒂电子查询可用频率。 | |
储存温度 | T_stg | -40°C to +125°C | 裸存 | |
工作温度 | T_use | -40°C to +85°C | ||
激励功率 | DL | 100µW Max. | 200µW Max. | 推荐: 1µW to 100µW |
频率公差 | f_tol | ±10 × 10-6 *1 | ±30 × 10-6 | +25°C，对于非标准的规格，请联系代理-拓蒂电子进行查询。 |
频率与温度特性 （标准） | f_tem | ±12 × 10-6 *1 | ±30 × 10-6 | -20°C to +75°C，对于非标准的规格，请联系代理-拓蒂电子进行查询。 |
负载电容 | CL | 6pF to ∞ | 请指定。 | |
串联电阻（ESR） | R1 | As per below table | -20°C to +75°C | |
频率老化 | f_age | ±1 × 10-6 / year Max. | ±5 × 10-6 / year Max. | +25°C, First year |
串联电阻 (ESR)
频率 | 串联电阻（ESR |
24.0MHz ≤ f_nom < 32.0MHz | 200Ω Max. |
32.0MHz ≤ f_nom < 36.0MHz | 100Ω Max. |
36.0MHz ≤ f_nom ≤ 54.0MHz | 80Ω Max. |
产品名称 FA-118T 24.000000MHz 12.0 +10.0-10.0
(标准形式) ① ② ③ ④
①Model ②Frequency ③Load capacitance (pF) ④Frequency tolerance (×10-6, +25 °C)
产品料号
FA-118T X1E000251xxxx26
① ② ③ ④ ⑤
① 晶体器件 ② 型号 ③ 环境代码（1：欧盟RoHS / 2: 无铅）
④ 详细规格 ⑤ 包装规格（26：推荐包装6K pcs/Reel）
