外部尺寸： 2.5× 2.0 mm（SG-8018CG）; 3.2× 2.5 mm（SG-8018CE）
5.0× 3.2 mm（SG-8018CB）; 7.0× 5.0 mm（SG-8018CA）
输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
电压：1.6V to 3.63V，输出：CMOS，工作温度：-40°C to +105 °C；功能： Output enable (OE) or Standby (/ST)
利用PLL技术，写入频点参数，快速交货

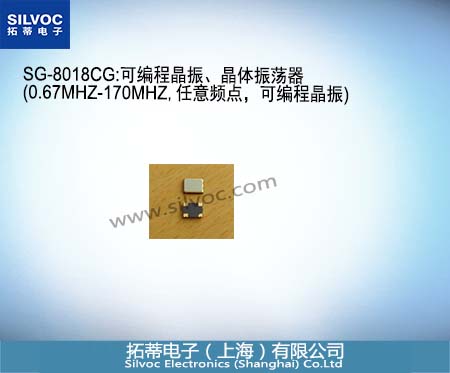

SG-8018CG (0.67-170MHZ)：EPSON(爱普生)可编程晶振、晶体振荡器
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CG MP Blank | X1G005601000200 | 3000 |
爱普生(EPSON)可编程晶振：SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA
可编程晶振: SG-8018CG、SG-8018CE、SG-8018CB、SG-8018CA，CMOS输出，供电电压是1.62V ~ 3.63V，工作温度可以达到-40℃至+105℃，符合工业级温度要求。

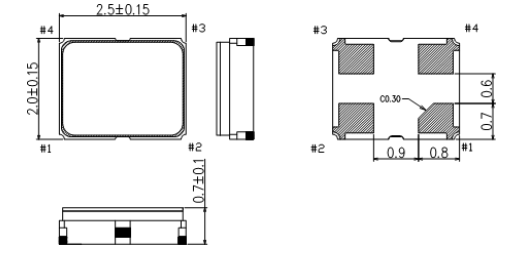

l 外部尺寸：2.5× 2.0 mm（SG-8018CG）、
3.2× 2.5 mm（SG-8018CE）、
5.0× 3.2 mm（SG-8018CB）、
7.0× 5.0 mm（SG-8018CA）
l 输出频率：0.67 MHz to 170 MHz (1 × 10-6 Step)
l 电压：1.6V to 3.63V
l 功能：Output enable (OE) or Standby (/ST)
l 输出：CMOS
l 工作温度：-40 °C to +105 °C
l 利用PLL技术，写入频点参数，快速交货
l 物联网
l 仪器仪表
l 医疗、工业自动化等
l IoT
l Medical, Industrial automation
爱普生的SG-8018CG、SG-8013CE、SG-80118CB、SG-80018CA系列是具有CMOS输出的可编程晶体振荡器系列。虽然该系列与早期的SG-8002/SG-8003系列具有相同的频率和其他参数的易编程性，但它们的工作温度范围更广，最高极限为105°C。除了2.5×2.0 mm的封装可以使电子制造商节省电路板空间外，振荡器还可以采用以下流行的封装尺寸：3.2×2.5 mm、5.0×3.2 mm和7.0×5.0 mm。与同类产品相比，SG-8018系列振荡器的频率容差约为66%，电流消耗约为50%，可在多种环境条件下使用。这也将大大有助于提高性能、降低功率需求、加快开发周期和小批量生产。
规格 (特征)
项目 | 符号 | 规格说明 | 条件 | ||||||||||
电源电压 | VCC | 1.80 V Typ. | 2.50V Typ. | 3.30V Typ. | |||||||||
1.62 to 1.98V | 1.98 to 2.20V | 2.20 to 2.80V | 2.70 to 3.63 V | ||||||||||
输出频率范围 | f0 | 0.67 MHz to 170 MHz | |||||||||||
储存温度 | T_stg | -40°C to +125°C | Storage as single product. | ||||||||||
工作温度 | T_use | H: -40°C to +105°C | |||||||||||
频率稳定度 *1 | f_tol | J: ±50 × 10-6 | T_use= -40°C to +105°C | ||||||||||
功耗 | ICC | 3.2mA Max. | 3.3mA Max. | 3.4mA Max. | 3.5mA Max. | T_use=+105°C | No load | ||||||
2.7mA Typ. | 2.9mA Typ. | 3.0mA Typ. | T_use=+25°C | ||||||||||
5.5mA Max. | 5.8mA Max. | 6.7mA Max. | 8.1mA Max. | T_use=+105°C | No load | ||||||||
4.7mA Typ. | 5.7mA Typ. | 6.8mA Typ. | T_use=+25°C | ||||||||||
输出禁用电流 | I_dis | 3.2mA Max. | 3.2mA Max. | 3.3mA Max. | 3.5mA Max. | OE=GND , f0 = 170 MHz | |||||||
待机电流 | I_std | 0.9μA Max. | 1.0μA Max. | 1.5μA Max. | 2.5μA Max. | T_use=+105°C | ST = GND | ||||||
0.3μA Typ. | 0.4μA Typ. | 0.5μA Typ. | 1.1μA Typ. | T_use= +25°C | |||||||||
占空比 | SYM | 45% to 55% | 50% VCC Level | ||||||||||
输出电压 | VOH | 90% VCC Min. | [mA] | ||||||||||
tr / tf | VCC | A | B | C | D | ||||||||
Default | IOH | -2.5 | -3.5 | -4.0 | -5.0 | ||||||||
IOL | 2.5 | 3.5 | 4.0 | 5.0 | |||||||||
Default | IOH | -1.5 | -2.0 | -2.5 | -3.0 | ||||||||
VOL | 10% VCC Max. | IOL | 1.5 | 2.0 | 2.5 | 3.0 | |||||||
Slow | IOH | -1.0 | -1.5 | -2.0 | -2.5 | ||||||||
IOL | 1.0 | 1.5 | 2.0 | 2.5 | |||||||||
A: 1.62 to 1.98 V , B: 1.98 to 2.20 V | |||||||||||||
输出负载条件 | L_CMOS | 15pF Max. | |||||||||||
输入电压 | VIH | 70% VCC Min. | OE or ST | ||||||||||
VIL | 30% VCC Max. | ||||||||||||
上升/下降时间 | 默认 | tr / tf | 3.0 ns Max. | f0 > 40MHz | 20% VCC to 80% VCC | ||||||||
6.0 ns Max. | f0 ≦ 40MHz | ||||||||||||
快速 | 3.0 ns Max. | f0=0.67to170MHz | |||||||||||
缓慢 | 10.0 ns Max. | f0=0.67to20MHz | |||||||||||
禁用时间 | t_stp | 1 μs Max. | Measured from the time OE or ST pin crosses 30 % VCC | ||||||||||
启用时间 | t_sta | 1 μs Max. | Measured from the time OE pin crosses 70 % VCC | ||||||||||
恢复时间 | t_res | 3 ms Max. | Measured from the time ST pin crosses 70 % VCC | ||||||||||
振荡器启动时间 | t_str | 3 ms Max. | Measured from the time VCC reaches its rated minimum value, 1.62 V | ||||||||||
频率老化 | f_aging | This is included in frequency tolerance specification | +25°C, 10 years | ||||||||||
*1频率容差包括初始频率容差、温度变化、电源电压变化、回流漂移、负载漂移和老化（+25°C，10年）。
Pin | Name | I/O type | Function | |
1 | OE | Input | Output enable | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉），只有输出驱动器被禁用。 |
ST | Input | Standby | 高：OUT引脚的指定频率输出 低：输出引脚低（弱下拉） 设备进入待机模式。电源电流降低至the least值I_std。 | |
2 | GND | Power | Ground | |
3 | OUT | Output | Clock output | |
4 | VCC | Power | Power supply | |
*2请不要在打开状态下使用OE/S̅T̅终端。
SG-8018系列晶振产品名称参数：
(1) Product Name (Standard Form)
SG-8018CG 25.000000MHZ T JH P A
① ② ③ ④ ⑤⑥⑦⑧
①Model ②Size ③Frequency ④Supply voltage (T: 1.8 V to 3.3 V Typ.)
⑤Frequency tolerance
⑥Operating temperature (JH: ±50 × 10-6 / -40 °C to +105 °C)
⑦Function ⑧Rise time / Fall time
② Size | |
CG | 2.5 mm × 2.0 mm |
CE | 3.2 mm × 2.5 mm |
CB | 5.0 mm × 3.2 mm |
CA | 7.0 mm × 5.0 mm |
⑦ Function | |
P | Output enable (#1pin = OE) |
S | Standby (#1pin = S̅T̅) |
⑧ Rise time / Fall time | |
A | Default |
B | Fast |
C | Slow |
（2）产品料号：
Product Number (Blank section is decided by each detail specifications.)
SG-8018CG X1G005601xxxx00
SG-8018CE X1G005591xxxx00
SG-8018CB X1G005581xxxx00
SG-8018CA X1G005571xxxx00
① ② ③ ④⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications ⑤ Packing（00：Recommended packing 1K pcs/Reel）
（3） 空白片料号
SG-8018CG MP Blank: X1G005601000200
SG-8018CE MP Blank: X1G005591000200
SG-8018CB MP Blank: X1G005581000200
SG-8018CA MP Blank: X1G005571000200
① ② ③ ④ ⑤
① Crystal devices ② Model ③ Pb free code（1：EU RoHS / 2: Pb free）
④ Detail specifications
⑤ Packing（00：Recommended packing CA / CB:1K pcs/Reel, CE:1K pcs/Reel, CG:3K pcs/Reel）
为了保持稳定运行，在尽可能靠近晶体产品电源端子的位置（VCC-GND之间）提供0.1µF旁路电容器。
SG-8018CG常用频点列表如下：
规格型号 | 产品编码 | MOQ (PCS) |
SG-8018CG MP Blank | X1G005601000200 | 3000 |
SG-8018CG 25.000000MHZ TJHPA | X1G005601001100 | 3000 |
SG-8018CG 25.000000MHZ TJHSA | X1G005601001200 | 3000 |
SG-8018CG 20.000000MHz TJHPA | X1G005601001300 | 3000 |
SG-8018CG 20.000000MHz TJHSA | X1G005601001400 | 3000 |
SG-8018CG 50.000000MHz TJHPA | X1G005601001500 | 3000 |
SG-8018CG 50.000000MHz TJHSA | X1G005601001600 | 3000 |
SG-8018CG 48.000000MHz TJHPA | X1G005601001700 | 3000 |
SG-8018CG 48.000000MHz TJHSA | X1G005601001800 | 3000 |
SG-8018CG 24.000000MHz TJHPA | X1G005601001900 | 3000 |
SG-8018CG 24.000000MHz TJHSA | X1G005601002000 | 3000 |
SG-8018CG 40.000000MHz TJHPA | X1G005601002100 | 3000 |
SG-8018CG 40.000000MHz TJHSA | X1G005601002200 | 3000 |
SG-8018CG 16.000000MHz TJHPA | X1G005601002300 | 3000 |
SG-8018CG 16.000000MHz TJHSA | X1G005601002400 | 3000 |
SG-8018CG 12.000000MHz TJHPA | X1G005601002500 | 3000 |
SG-8018CG 12.000000MHz TJHSA | X1G005601002600 | 3000 |
SG-8018CG 10.000000MHz TJHPA | X1G005601002700 | 3000 |
SG-8018CG 10.000000MHz TJHSA | X1G005601002800 | 3000 |
SG-8018CG 27.000000MHz TJHPA | X1G005601002900 | 3000 |
SG-8018CG 27.000000MHz TJHSA | X1G005601003000 | 3000 |
SG-8018CG 32.000000MHz TJHSA | X1G005601003100 | 3000 |
SG-8018CG 32.000000MHz TJHPA | X1G005601003200 | 3000 |
SG-8018CG 8.000000MHz TJHPA | X1G005601003300 | 3000 |
SG-8018CG 8.000000MHz TJHSA | X1G005601003400 | 3000 |
SG-8018CG 14.745600MHz TJHPA | X1G005601003500 | 3000 |
SG-8018CG 14.745600MHz TJHSA | X1G005601003600 | 3000 |
SG-8018CG 12.288000MHz TJHPA | X1G005601003700 | 3000 |
SG-8018CG 12.288000MHz TJHSA | X1G005601003800 | 3000 |
SG-8018CG 33.000000MHz TJHPA | X1G005601003900 | 3000 |
SG-8018CG 33.000000MHz TJHSA | X1G005601004000 | 3000 |
SG-8018CG 30.000000MHz TJHPA | X1G005601004100 | 3000 |
SG-8018CG 30.000000MHz TJHSA | X1G005601004200 | 3000 |
SG-8018CG 26.000000MHz TJHPA | X1G005601004300 | 3000 |
SG-8018CG 26.000000MHz TJHSA | X1G005601004400 | 3000 |
SG-8018CG 24.576000MHz TJHPA | X1G005601004500 | 3000 |
SG-8018CG 24.576000MHz TJHSA | X1G005601004600 | 3000 |
SG-8018CG 100.000000MHz TJHPA | X1G005601004700 | 3000 |
SG-8018CG 100.000000MHz TJHSA | X1G005601004800 | 3000 |
SG-8018CG 4.000000MHz TJHPA | X1G005601004900 | 3000 |
SG-8018CG 4.000000MHz TJHSA | X1G005601005000 | 3000 |
SG-8018CG 66.000000MHz TJHPA | X1G005601005100 | 3000 |
SG-8018CG 66.000000MHz TJHSA | X1G005601005200 | 3000 |
SG-8018CG 19.660800MHz TJHPA | X1G005601005300 | 3000 |
SG-8018CG 19.660800MHz TJHSA | X1G005601005400 | 3000 |
SG-8018CG 125.000000MHz TJHPA | X1G005601005500 | 3000 |
SG-8018CG 125.000000MHz TJHSA | X1G005601005600 | 3000 |
SG-8018CG 33.333300MHz TJHPA | X1G005601005700 | 3000 |
SG-8018CG 33.333300MHz TJHSA | X1G005601005800 | 3000 |
SG-8018CG 96.000000MHz TJHPA | X1G005601005900 | 3000 |
SG-8018CG 48.000000MHz TJHPA | X1G005601006000 | 3000 |
SG-8018CG 13.516800MHz TJHPA | X1G005601006100 | 3000 |
SG-8018CG 64.000000MHz TJHSA | X1G005601006200 | 3000 |
SG-8018CG 13.107200MHz TJHSA | X1G005601006300 | 3000 |
SG-8018CG 12.500000MHz TJHSA | X1G005601006400 | 3000 |
SG-8018CG 80.000000MHz TJHPA | X1G005601006500 | 3000 |
SG-8018CG 16.384000MHz TJHPA | X1G005601006600 | 3000 |
SG-8018CG 7.372800MHz TJHPA | X1G005601006700 | 3000 |
SG-8018CG 11.520000MHz TJHPA | X1G005601006800 | 3000 |
SG-8018CG 8.000000MHz TJHPA | X1G005601006900 | 3000 |
SG-8018CG 13.333000MHz TJHPA | X1G005601007000 | 3000 |
SG-8018CG 28.636360MHz TJHSA | X1G005601007100 | 3000 |
SG-8018CG 44.236800MHz TJHPA | X1G005601007200 | 3000 |
SG-8018CG 130.000000MHz TJHSA | X1G005601007300 | 3000 |
SG-8018CG 8.192000MHz TJHSA | X1G005601007400 | 3000 |
SG-8018CG 2.097152MHz TJHPA | X1G005601007500 | 3000 |
SG-8018CG 49.824000MHz TJHSA | X1G005601007600 | 3000 |
SG-8018CG 133.000000MHz TJHPA | X1G005601007700 | 3000 |
SG-8018CG 19.200000MHz TJHPA | X1G005601007800 | 3000 |
SG-8018CG 41.439990MHz TJHSA | X1G005601007900 | 3000 |
SG-8018CG 16.608000MHz TJHSA | X1G005601008000 | 3000 |
SG-8018CG 33.333000MHz TJHPA | X1G005601008100 | 3000 |
SG-8018CG 7.000000MHz TJHPA | X1G005601008200 | 3000 |
SG-8018CG 33.176000MHz TJHSA | X1G005601008300 | 3000 |
SG-8018CG 33.333000MHz TJHSA | X1G005601008400 | 3000 |
SG-8018CG 7.372800MHz TJHPA | X1G005601008500 | 3000 |
SG-8018CG 4.800000MHz TJHSA | X1G005601008600 | 3000 |
SG-8018CG 18.400000MHz TJHSA | X1G005601008700 | 3000 |
SG-8018CG 4.915200MHz TJHPA | X1G005601008800 | 3000 |
SG-8018CG 133.000000MHz TJHPA | X1G005601008900 | 3000 |
SG-8018CG 2.800000MHz TJHPA | X1G005601009000 | 3000 |
SG-8018CG 22.579200MHz TJHSA | X1G005601009100 | 3000 |
SG-8018CG 0.680000MHz TJHPA | X1G005601009200 | 3000 |
SG-8018CG 46.339200MHz TJHPA | X1G005601009300 | 3000 |
SG-8018CG 60.000000MHz TJHPA | X1G005601009400 | 3000 |
SG-8018CG 3.579545MHz TJHPA | X1G005601009500 | 3000 |
SG-8018CG 16.666600MHz TJHSA | X1G005601009700 | 3000 |
SG-8018CG 13.333333MHz TJHSA | X1G005601009800 | 3000 |
SG-8018CG 54.000000MHz TJHSA | X1G005601009900 | 3000 |
SG-8018CG 3.686400MHz TJHSA | X1G005601010000 | 3000 |
SG-8018CG 22.579200MHz TJHSA | X1G005601010200 | 3000 |
SG-8018CG 64.478100MHz TJHSA | X1G005601010300 | 3000 |
SG-8018CG 59.737100MHz TJHPA | X1G005601010400 | 3000 |
SG-8018CG 64.342677MHz TJHSA | X1G005601010500 | 3000 |
SG-8018CG 43.540157MHz TJHPA | X1G005601010600 | 3000 |
SG-8018CG 25.600000MHz TJHPA | X1G00560101700 | 3000 |
SG-8018CG 19.660800MHz TJHPA | X1G005601010800 | 3000 |
SG-8018CG 85.000000MHz TJHPA | X1G005601011000 | 3000 |
SG-8018CG 63.055823MHz TJHPA | X1G005601011100 | 3000 |
SG-8018CG 42.669354MHz TJHPA | X1G005601011200 | 3000 |
SG-8018CG 74.250000MHz TJHSA | X1G005601012200 | 3000 |
SG-8018CG 13.000000MHz TJHPA | X1G005601012300 | 3000 |
SG-8018CG 20.000000MHz TJHSA | X1G005601012400 | 3000 |
SG-8018CG 12.568000MHz TJHPA | X1G005601012900 | 3000 |
SG-8018CG 6.940000MHz TJHPA | X1G005601013000 | 3000 |
SG-8018CG 3.072000MHz TJHSA | X1G005601013100 | 3000 |
SG-8018CG 6.780000MHz TJHSA | X1G005601013200 | 3000 |
SG-8018CG 13.560000MHz TJHPA | X1G005601013300 | 3000 |
SG-8018CG 27.120000MHz TJHSA | X1G005601013400 | 3000 |
SG-8018CG 4.096000MHz TJHPA | X1G005601013500 | 3000 |
SG-8018CG 54.000000MHz TJHSA | X1G005601013600 | 3000 |
SG-8018CG 7.372800MHz TJHSA | X1G005601013900 | 3000 |
SG-8018CG 1.843200MHz TJHSA | X1G005601014000 | 3000 |
SG-8018CG 11.289600MHz TJHSA | X1G005601014100 | 3000 |
SG-8018CG 11.289600MHz TJHSA | X1G005601014200 | 3000 |
SG-8018CG 14.318180MHz TJHSA | X1G005601014300 | 3000 |
SG-8018CG 3.686400MHz TJHSA | X1G005601014400 | 3000 |
SG-8018CG 3.686400MHz TJHSA | X1G005601014500 | 3000 |
SG-8018CG 49.152000MHz TJHSA | X1G005601014600 | 3000 |
SG-8018CG 4.194304MHz TJHPA | X1G005601014700 | 3000 |
SG-8018CG 16.483200MHz TJHPA | X1G005601014800 | 3000 |
SG-8018CG 51.840000MHz TJHPA | X1G005601014900 | 3000 |
SG-8018CG 77.760000MHz TJHPA | X1G005601015000 | 3000 |
SG-8018CG 12.800000MHz TJHPA | X1G005601015100 | 3000 |
SG-8018CG 1.024000MHz TJHPA | X1G005601015200 | 3000 |
SG-8018CG 0.819200MHz TJHPA | X1G005601015300 | 3000 |
SG-8018CG 37.125000MHz TJHPA | X1G005601015400 | 3000 |
SG-8018CG 148.500000MHz TJHPA | X1G005601015500 | 3000 |
SG-8018CG 74.250000MHz TJHPA | X1G005601015600 | 3000 |
SG-8018CG 13.225600MHz TJHSA | X1G005601015700 | 3000 |
SG-8018CG 104.857600MHz TJHPA | X1G005601015800 | 3000 |
SG-8018CG 9.900000MHz TJHSA | X1G005601015900 | 3000 |
SG-8018CG 18.430000MHz TJHPA | X1G005601016000 | 3000 |
SG-8018CG 35.000000MHz TJHSA | X1G005601016500 | 3000 |
SG-8018CG 15.000000MHz TJHPA | X1G005601016600 | 3000 |
SG-8018CG 9.830400MHz TJHPA | X1G005601016700 | 3000 |
SG-8018CG 9.000000MHz TJHSA | X1G005601016800 | 3000 |
SG-8018CG 2.097000MHz TJHPA | X1G005601016900 | 3000 |
SG-8018CG 6.000000MHz TJHPA | X1G005601017000 | 3000 |
SG-8018CG 11.059200MHz TJHPA | X1G005601017100 | 3000 |
SG-8018CG 9.900000MHz TJHPA | X1G005601017200 | 3000 |
SG-8018CG 12.000000MHz TJHSA | X1G005601017300 | 3000 |
SG-8018CG 33.500000MHz TJHPA | X1G005601017400 | 3000 |
SG-8018CG 3.570000MHz TJHPA | X1G005601017500 | 3000 |
SG-8018CG 8.037500MHz TJHPA | X1G005601017600 | 3000 |
SG-8018CG 80.000000MHz TJHPA | X1G005601017700 | 3000 |
SG-8018CG 35.890700MHz TJHPA | X1G005601017800 | 3000 |
SG-8018CG 72.000000MHz TJHSA | X1G005601018000 | 3000 |
SG-8018CG 72.000000MHz TJHPA | X1G005601018100 | 3000 |
SG-8018CG 75.000000MHz TJHPA | X1G005601018200 | 3000 |
SG-8018CG 75.000000MHz TJHSA | X1G005601018300 | 3000 |
SG-8018CG 49.152000MHz TJHPA | X1G005601018400 | 3000 |
SG-8018CG 98.304000MHz TJHPA | X1G005601018500 | 3000 |
SG-8018CG 98.304000MHz TJHPA | X1G005601018600 | 3000 |
SG-8018CG 37.125000MHz TJHPA | X1G005601018700 | 3000 |
SG-8018CG 33.330000MHz TJHPA | X1G005601018800 | 3000 |
SG-8018CG 33.330000MHz TJHPA | X1G005601018900 | 3000 |
SG-8018CG 18.432000MHz TJHPA | X1G005601019000 | 3000 |
SG-8018CG 18.432000MHz TJHSA | X1G005601019100 | 3000 |
SG-8018CG 7.000000MHz TJHSA | X1G005601019200 | 3000 |
SG-8018CG 8.727000MHz TJHSA | X1G005601019300 | 3000 |
SG-8018CG 21.606000MHz TJHPA | X1G005601019400 | 3000 |
SG-8018CG 39.321600MHz TJHPA | X1G005601019500 | 3000 |
SG-8018CG 41.140000MHz TJHPA | X1G005601019600 | 3000 |
SG-8018CG 49.500000MHz TJHPA | X1G005601019700 | 3000 |
SG-8018CG 6.553600MHz TJHPA | X1G005601019800 | 3000 |
SG-8018CG 64.000000MHz TJHSA | X1G005601019900 | 3000 |
SG-8018CG 8.050000MHz TJHPA | X1G005601020000 | 3000 |
SG-8018CG 1.000000MHz TJHSA | X1G005601020100 | 3000 |
SG-8018CG 8.000000MHz TJHPA | X1G005601020400 | 3000 |
SG-8018CG 4.000000MHz TJHPA | X1G005601020500 | 3000 |
SG-8018CG 40.000000MHz TJHPA | X1G005601020600 | 3000 |
SG-8018CG 41.010000MHz TJHPA | X1G005601020700 | 3000 |
SG-8018CG 0.910000MHz TJHSA | X1G005601020800 | 3000 |
SG-8018CG 69.200000MHz TJHSA | X1G005601020900 | 3000 |
SG-8018CG 32.768000MHz TJHSA | X1G005601021000 | 3000 |
SG-8018CG 58.982000MHz TJHSA | X1G005601021100 | 3000 |
SG-8018CG 155.520000MHz TJHPA | X1G005601021200 | 3000 |
SG-8018CG 65.000000MHz TJHPA | X1G005601021300 | 3000 |
SG-8018CG 130.000000MHz TJHPA | X1G005601021400 | 3000 |
SG-8018CG 16.384000MHz TJHSA | X1G005601021500 | 3000 |
SG-8018CG 5.000000MHz TJHSA | X1G005601021600 | 3000 |
SG-8018CG 4.410000MHz TJHSA | X1G005601021700 | 3000 |
SG-8018CG 22.956600MHz TJHSA | X1G005601022200 | 3000 |
SG-8018CG 78.000000MHz TJHSA | X1G005601022300 | 3000 |
SG-8018CG 16.777216MHz TJHSA | X1G005601022400 | 3000 |
SG-8018CG 12.500000MHz TJHPA | X1G005601022500 | 3000 |
SG-8018CG 12.500000MHz TJHPA | X1G005601022600 | 3000 |
SG-8018CG 11.059200MHz TJHPA | X1G005601022700 | 3000 |
SG-8018CG 36.000000MHz TJHSA | X1G005601023200 | 3000 |
SG-8018CG 18.000000MHz TJHPA | X1G005601023300 | 3000 |
SG-8018CG 12.000000MHz TJHPA | X1G005601023400 | 3000 |
SG-8018CG 24.000000MHz TJHPA | X1G005601023500 | 3000 |
SG-8018CG 5.529600MHz TJHSA | X1G005601023600 | 3000 |
SG-8018CG 16.934000MHz TJHSA | X1G005601023700 | 3000 |
SG-8018CG 3.580000MHz TJHPA | X1G005601023800 | 3000 |
SG-8018CG 2.000000MHz TJHSA | X1G005601023900 | 3000 |
SG-8018CG 16.934000MHz TJHSA | X1G005601024000 | 3000 |
SG-8018CG 38.400000MHz TJHSA | X1G005601024100 | 3000 |
SG-8018CG 23.040000MHz TJHPA | X1G005601024200 | 3000 |
SG-8018CG 46.080000MHz TJHSA | X1G005601024300 | 3000 |
SG-8018CG 92.160000MHz TJHSA | X1G005601024400 | 3000 |
SG-8018CG 1.843200MHz TJHPA | X1G005601024500 | 3000 |
SG-8018CG 4.096000MHz TJHSA | X1G005601024600 | 3000 |
SG-8018CG 16.934400MHz TJHPA | X1G005601024700 | 3000 |
SG-8018CG 64.000000MHz TJHSA | X1G005601024800 | 3000 |
SG-8018CG 3.579545MHz TJHPA | X1G005601024900 | 3000 |
SG-8018CG 66.380000MHz TJHPA | X1G005601025000 | 3000 |
SG-8018CG 14.318000MHz TJHSA | X1G005601025100 | 3000 |
SG-8018CG 13.330000MHz TJHPA | X1G005601025200 | 3000 |
SG-8018CG 16.625000MHz TJHSA | X1G005601025300 | 3000 |
SG-8018CG 99.000000MHz TJHSA | X1G005601025400 | 3000 |
SG-8018CG 1.500000MHz TJHSA | X1G005601025500 | 3000 |
SG-8018CG 19.200000MHz TJHPA | X1G005601025600 | 3000 |
SG-8018CG 39.000000MHz TJHSA | X1G005601026100 | 3000 |
SG-8018CG 68.000000MHz TJHPA | X1G005601026200 | 3000 |
SG-8018CG 6.750000MHz TJHSA | X1G005601026500 | 3000 |
SG-8018CG 24.545400MHz TJHPA | X1G005601026800 | 3000 |
SG-8018CG 49.090902MHz TJHSA | X1G005601026900 | 3000 |
SG-8018CG 33.300000MHz TJHPA | X1G005601027000 | 3000 |
SG-8018CG 9.216000MHz TJHSA | X1G005601027100 | 3000 |
SG-8018CG 41.666000MHz TJHPA | X1G005601027200 | 3000 |
SG-8018CG 30.720000MHz TJHSA | X1G005601027300 | 3000 |
SG-8018CG 41.666000MHz TJHPA | X1G005601027400 | 3000 |
SG-8018CG 135.000000MHz TJHSA | X1G005601027500 | 3000 |
SG-8018CG 33.177600MHz TJHPA | X1G005601027600 | 3000 |
SG-8018CG 6.000000MHz TJHSA | X1G005601027700 | 3000 |
SG-8018CG 4.608000MHz TJHPA | X1G005601027800 | 3000 |
SG-8018CG 33.333333MHz TJHSA | X1G005601027900 | 3000 |
SG-8018CG 2.711860MHz TJHPA | X1G005601028000 | 3000 |
SG-8018CG 36.532540MHz TJHSA | X1G005601028100 | 3000 |
SG-8018CG 42.473240MHz TJHPA | X1G005601028200 | 3000 |
SG-8018CG 66.666700MHz TJHSA | X1G005601028300 | 3000 |
SG-8018CG 90.000000MHz TJHPA | X1G005601028400 | 3000 |
SG-8018CG 13.560000MHz TJHSA | X1G005601028500 | 3000 |
SG-8018CG 110.592000MHz TJHPA | X1G005601028600 | 3000 |
SG-8018CG 6.553600MHz TJHSA | X1G005601028700 | 3000 |
SG-8018CG 38.400000MHz TJHPA | X1G005601028800 | 3000 |
SG-8018CG 60.400000MHz TJHSA | X1G005601028900 | 3000 |
SG-8018CG 64.800000MHz TJHPA | X1G005601029000 | 3000 |
SG-8018CG 28.600000MHz TJHSA | X1G005601029100 | 3000 |
SG-8018CG 22.500000MHz TJHPA | X1G005601029400 | 3000 |
SG-8018CG 27.500000MHz TJHSA | X1G005601029500 | 3000 |
SG-8018CG 150.000000MHz TJHPA | X1G005601029600 | 3000 |
SG-8018CG 7.680000MHz TJHSA | X1G005601029700 | 3000 |
SG-8018CG 19.440000MHz TJHPA | X1G005601029800 | 3000 |
SG-8018CG 66.600000MHz TJHSA | X1G005601029900 | 3000 |
SG-8018CG 27.120000MHz TJHPA | X1G005601030000 | 3000 |
SG-8018CG 4.608000MHz TJHSA | X1G005601030100 | 3000 |
SG-8018CG 1.000000MHz TJHPA | X1G005601030200 | 3000 |
SG-8018CG 6.666667MHz TJHSA | X1G005601030300 | 3000 |
SG-8018CG 20.538100MHz TJHPA | X1G005601030400 | 3000 |
SG-8018CG 1.200000MHz TJHSA | X1G005601030500 | 3000 |
SG-8018CG 112.000000MHz TJHPA | X1G005601030600 | 3000 |
SG-8018CG 64.342677MHz TJHSA | X1G005601030900 | 3000 |
SG-8018CG 20.480000MHz TJHPA | X1G005601031000 | 3000 |
SG-8018CG 62.500000MHz TJHSA | X1G005601031100 | 3000 |
SG-8018CG 80.000000MHz TJHPA | X1G005601031800 | 3000 |
SG-8018CG 2.048000MHz TJHSA | X1G005601031900 | 3000 |
SG-8018CG 32.768000MHz TJHPA | X1G005601032000 | 3000 |
SG-8018CG 2.500000MHz TJHSA | X1G005601032100 | 3000 |
SG-8018CG 37.087900MHz TJHPA | X1G005601032200 | 3000 |
SG-8018CG 74.175800MHz TJHSA | X1G005601032300 | 3000 |
SG-8018CG 60.000000MHz TJHPA | X1G005601032400 | 3000 |
SG-8018CG 4.915200MHz TJHSA | X1G005601032600 | 3000 |
SG-8018CG 25.175000MHz TJHPA | X1G005601032700 | 3000 |
SG-8018CG 18.000000MHz TJHSA | X1G005601032800 | 3000 |
SG-8018CG 3.072000MHz TJHPA | X1G005601013100 | 3000 |
在线咨询
微信服务
